Edwards HV30000 User Manual

© Edwards Limited 2008. All rights reserved. Page 11 Edwards and the Edwards logo are trademarks of Edwards Limited.
Technical data
A313-01-880 Issue A

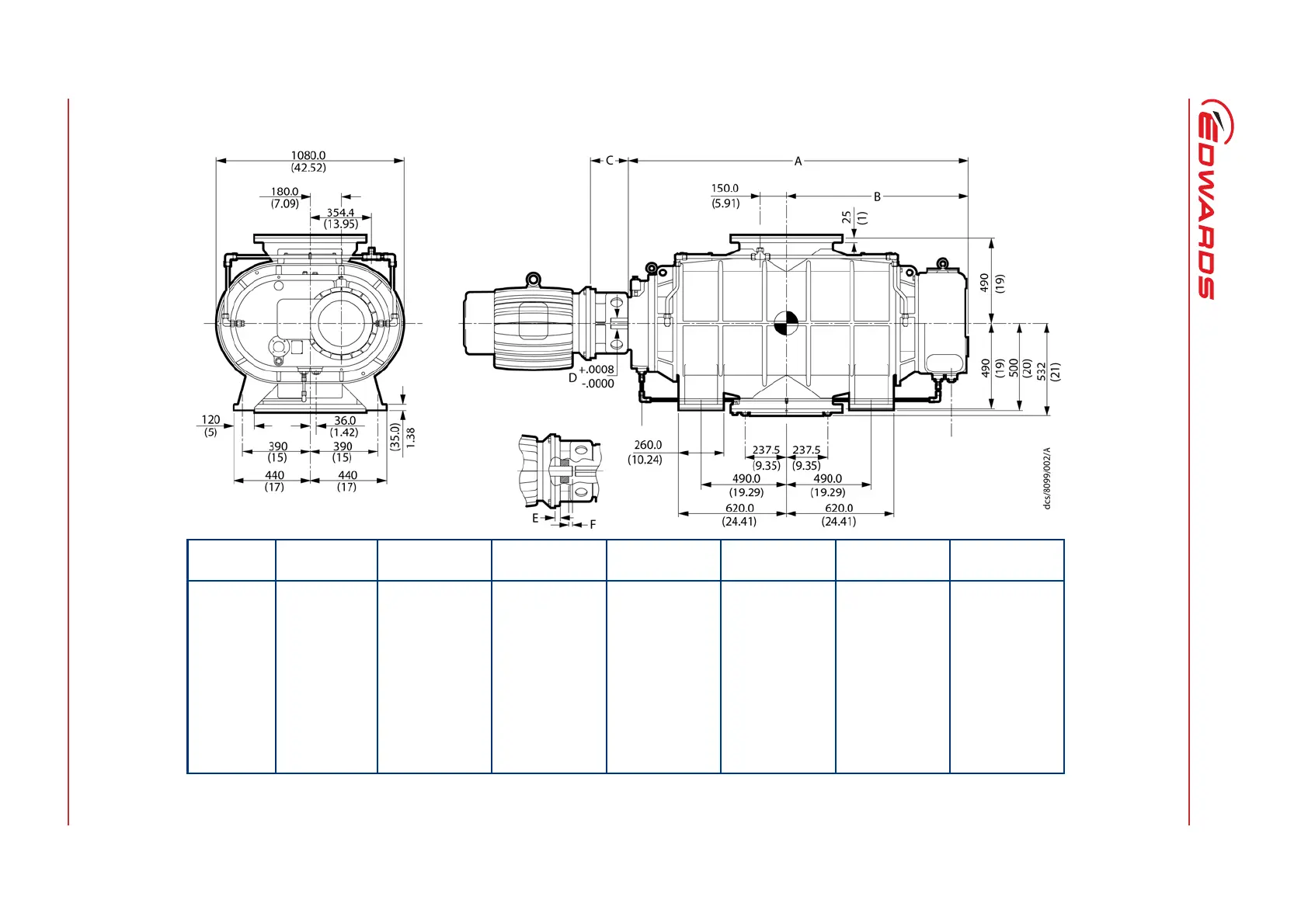

Figure 3 - HV dimensions: mm (inch)
Unit Motor size A B C
D
Shaft Ø
E
*
*
Motor face to back of coupler.
F
†
†
End of shaft to front of coupler.
HV30000 200 l (30 kW) 1959.36 (77.14) 1048.77 (41.29) 217.93 (8.58) 2.3627 19.76 (0.78) 20.24 (0.80)
HV30000 250 m (55 kW) 1959.36 (77.14) 1048.77 (41.29) 246.89 (9.72) 2.3627 48.76 (1.92) 21.24 (0.84)
HV30000 324 td (40 hp) 1959.36 (77.14) 1048.77 (41.29) 246.89 (9.72) 2.3627 48.76 (1.92) 20.94 (0.82)
HV30000 365 td (75 hp) 1959.36 (77.14) 1048.77 (41.29) 246.89 (9.72) 2.3627 48.76 (1.92) 14.44 (0.57)
HV40000 200 l (30 kW) 2099.31 (82.65) 1118.62 (44.04) 217.93 (8.58) 2.3627 19.76 (0.78) 20.24 (0.80)
HV40000 250 m (55 kW) 2099.31 (82.65) 1118.62 (44.04) 246.89 (9.72) 2.3627 48.76 (1.92) 21.24 (0.84)
HV40000 324 td (40 hp) 2099.31 (82.65) 1118.62 (44.04) 246.89 (9.72) 2.3627 48.76 (1.92) 20.94 (0.82)
HV40000 365 td (75 hp) 2099.31 (82.65) 1118.62 (44.04) 246.89 (9.72) 2.3627 48.76 (1.92) 14.44 (0.57)
