Installation

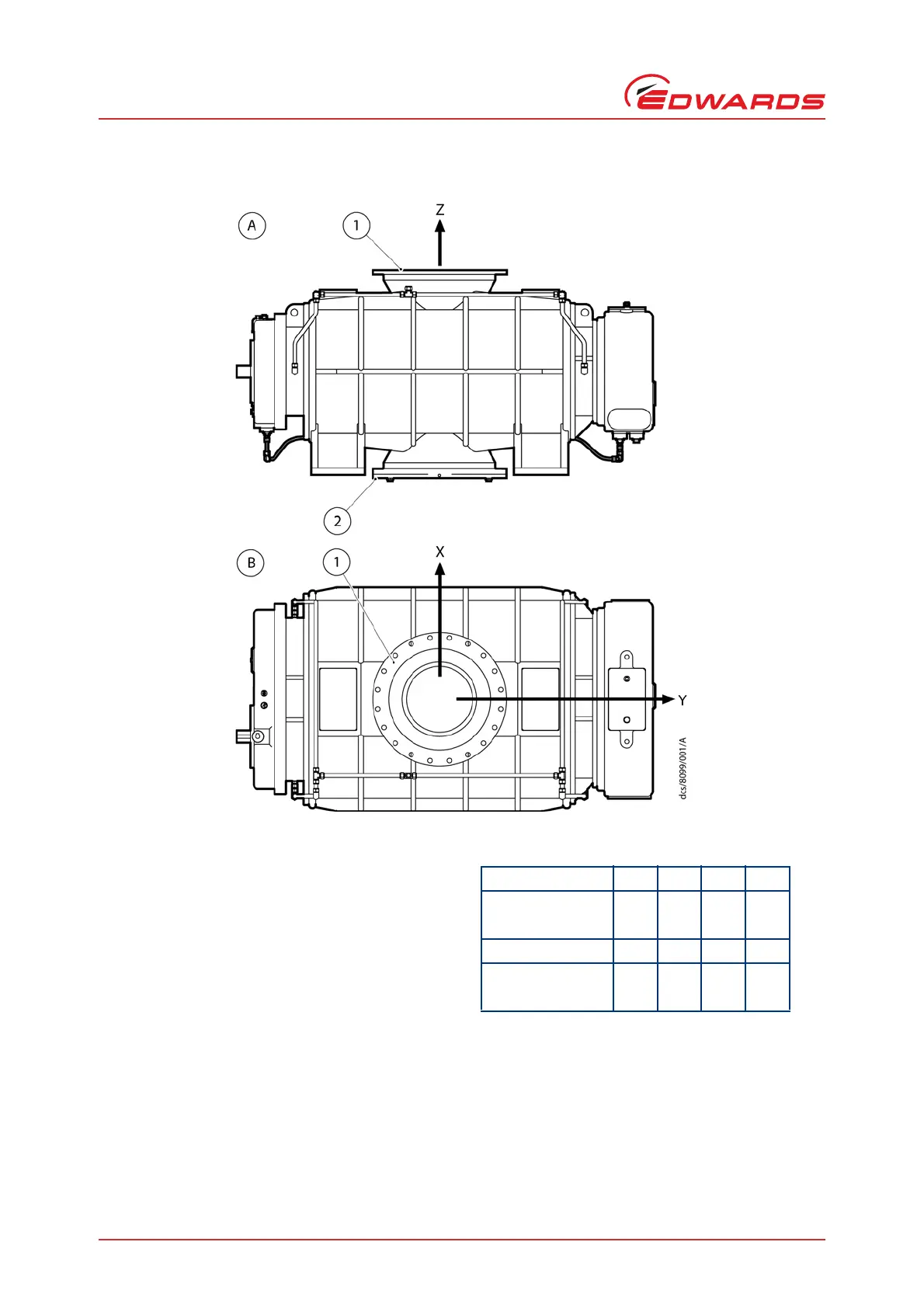

Figure 5 - Inlet/outlet flange loading limits (Nm)
A. Side view
B. Plan view
1. Inlet/outlet flange
2. Outlet/inlet flange
FForce
MMoment
R Resultant
X Load orientation
Y Load orientation
Z Load orientation
Force in plane X Y Z R
Inlet flange 1000 1000 2000 2400
Outlet flange 750 750 1500 1800
Moment in plane X Y Z R
Inlet flange 500 500 500 870
Outlet flange 300 300 300 250
