Edwards iXM Series User Manual

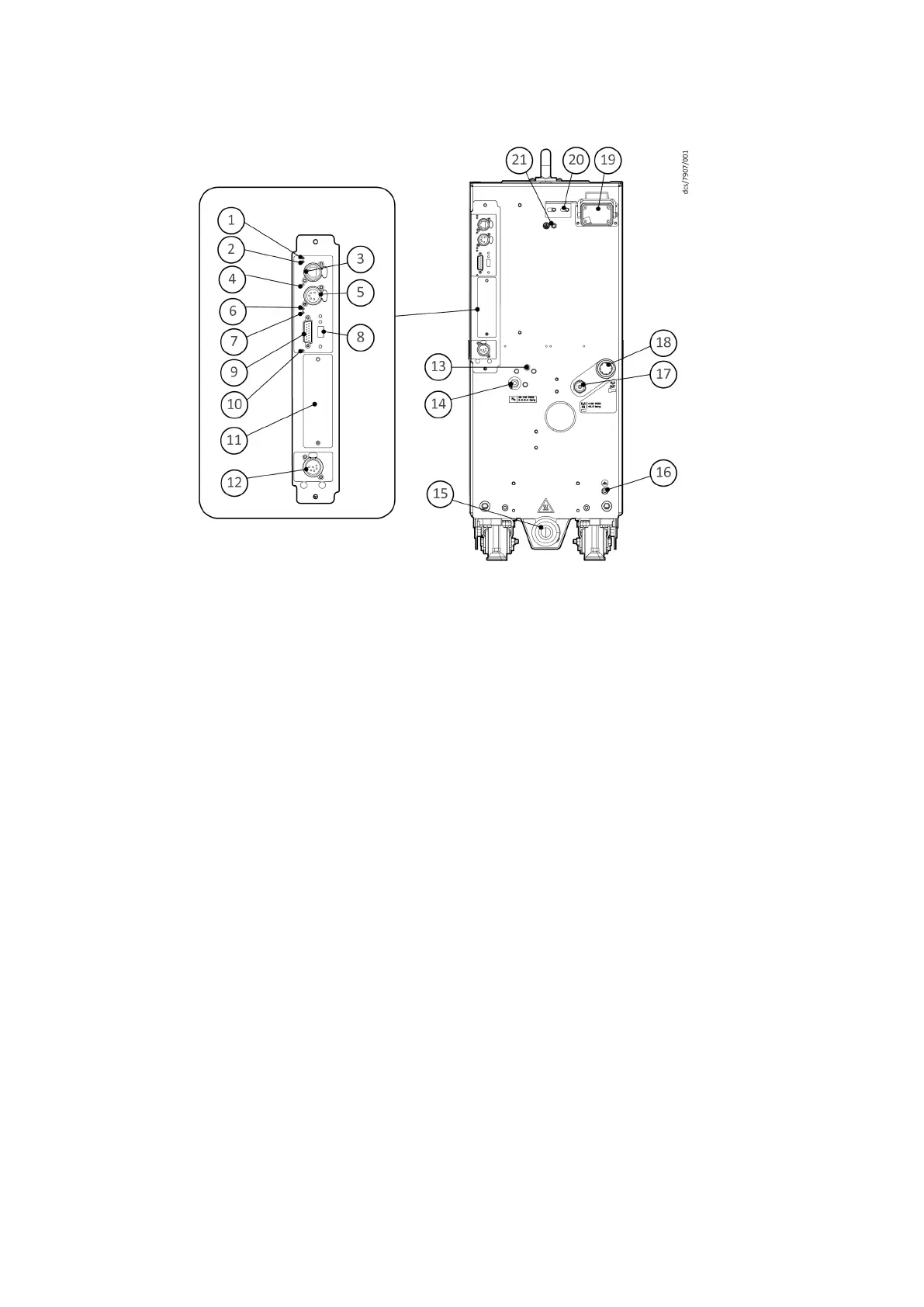

Figure 2 Controls/connectors on the rear of the system
1. Ethernet Local Area Network (LAN) LED
(gr
een)
2. Ethernet link LED (yellow)
3. Ethernet connecon
4. Power LED (green) 5. System interface connecon
6. Warning LED (yellow) 7. Running and alarm LEDs (2 colours,
either green or red)
8. USB connecon 9. Accessory interface connecon
10. MicroTIM in control LED (green) 11. Micro TIM connecon (if installed)
12. EMS interface 13. N
2
purge adjuster
14. Nitrogen purge connecon 15. Exhaus
t gas outlet
16. RF earth (ground) stud 17. Cooling water supply connecon
18. Cooling w
ater supply return 19. Electrical supply connecon
20. Electrical connector locking mechanism 21. Protecve earth (gr
ound) stud
1. Ethernet Local Area Network (LAN) LED
(gr
een)
2. Ethernet link LED (yellow)
3. Ethernet connecon
4. Power LED (green) 5. System interface connecon
6. Warning LED (yellow) 7. Running and alarm LEDs (2 colours,
either green or red)
8. USB connecon 9. Accessory interface connecon
10. MicroTIM in control LED (green) 11. Micro TIM connecon (if installed)
12. EMS interface 13. N
2
purge adjuster
14. Nitrogen purge connecon 15. Exhaus
t gas outlet
16. RF earth (ground) stud 17. Cooling water supply connecon
18. Cooling w
ater supply return 19. Electrical supply connecon
20. Electrical connector locking mechanism 21. Protecve earth (gr
ound) stud
2.2 Applicaons
The iXM pumping s
ystem is intended for use on applicaons as shown in Figure:
Applicaons.
The pump warranty will be invalid if the system is used on any other applicaon. Contact
your supplier if you are in doubt, for advice on the suitability of the system for any
parcular applicaon.
10/2020 - ©Edwards Limited
Page 11M56635880_D
