INSTALLATION OF THE STP PUMP
2
When installing the STP pump to the vacuum equipment in upside-down position, lift the pump via
eyebolts by installing eyebolts in leg screw holes (remove rubber legs if attached) or screw holes for
attaching legs. (see Figure 13)
A crane and eyebolts due to lifting operations should withstand the load of five times or more the
weight of the STP pump, and rope should be seven time or more. Use an eyebolt which confirms to
ISO 3266. When lifting the pump, use 2 or more ropes.

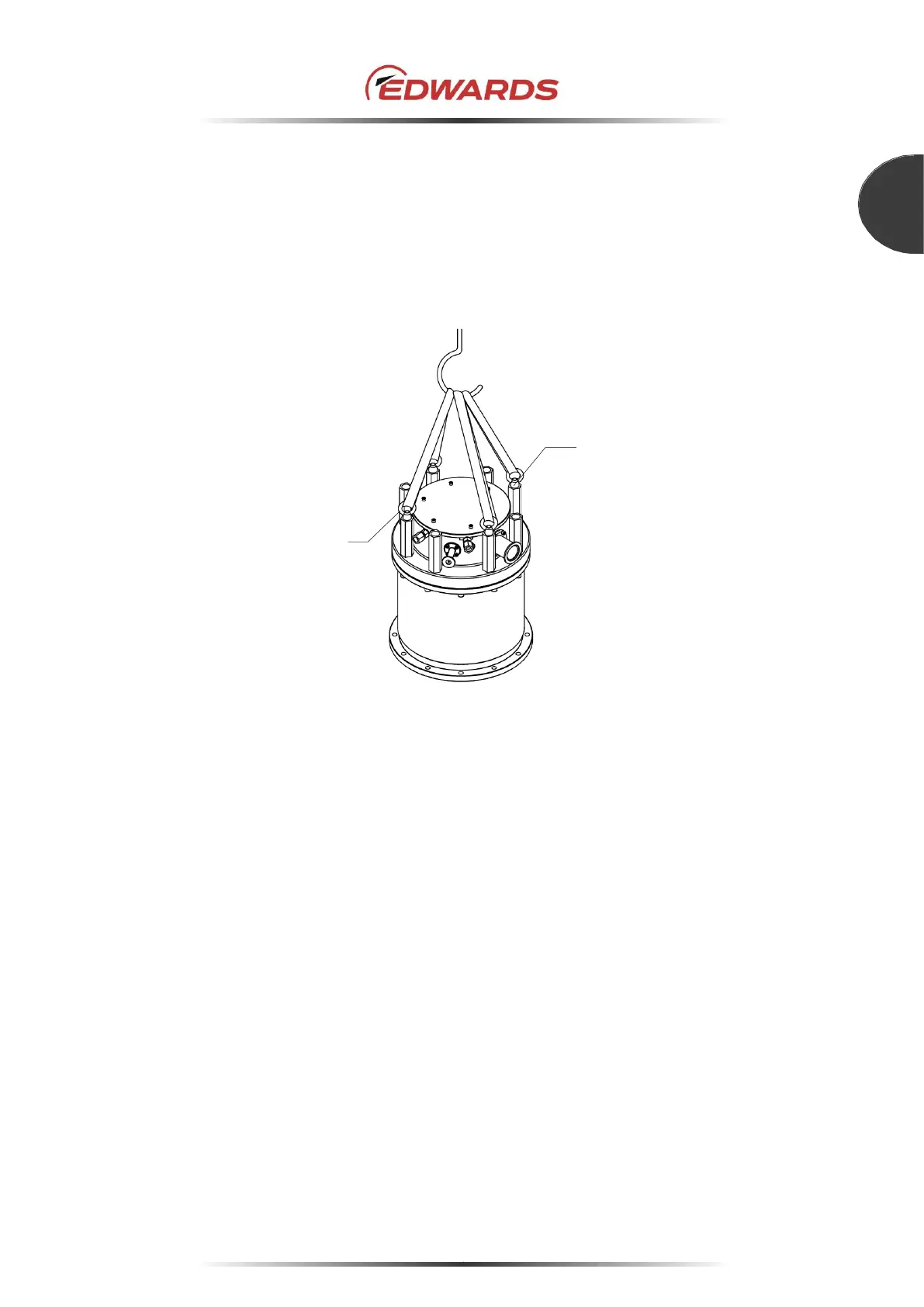

Figure 13 - STP pump with eyebolts
Eyebolt
Screw holes for
attaching legs
