© Edwards Limited 2010. All rights reserved. Page 9
Edwards and the Edwards logo are trademarks of Edwards Limited.
Installation
D397-50-880 Issue C
3 Installation
3.1 Unpack and inspect
Remove all of the packaging material and check the Module. If the Module is damaged, follow the Edwards return of
equipment procedures that are laid out in the back of this manual. Do not use the Module if it is damaged.
Check that your package contains the items that are listed in Table 11. If any of these items are missing, notify your
supplier in writing within three days. If the Module is not to be used immediately, store the Module in suitable
conditions as described in Section 6.1.
Table 11 - Component checklist
3.2 Fitting the Module
The Module can be fitted in a rack or DIN-rail mounted. If either of these methods are not used, the module should
be laid with one of it's largest faces down, to ensure stability. Figure 5 shows the dimensions of the Profibus module.

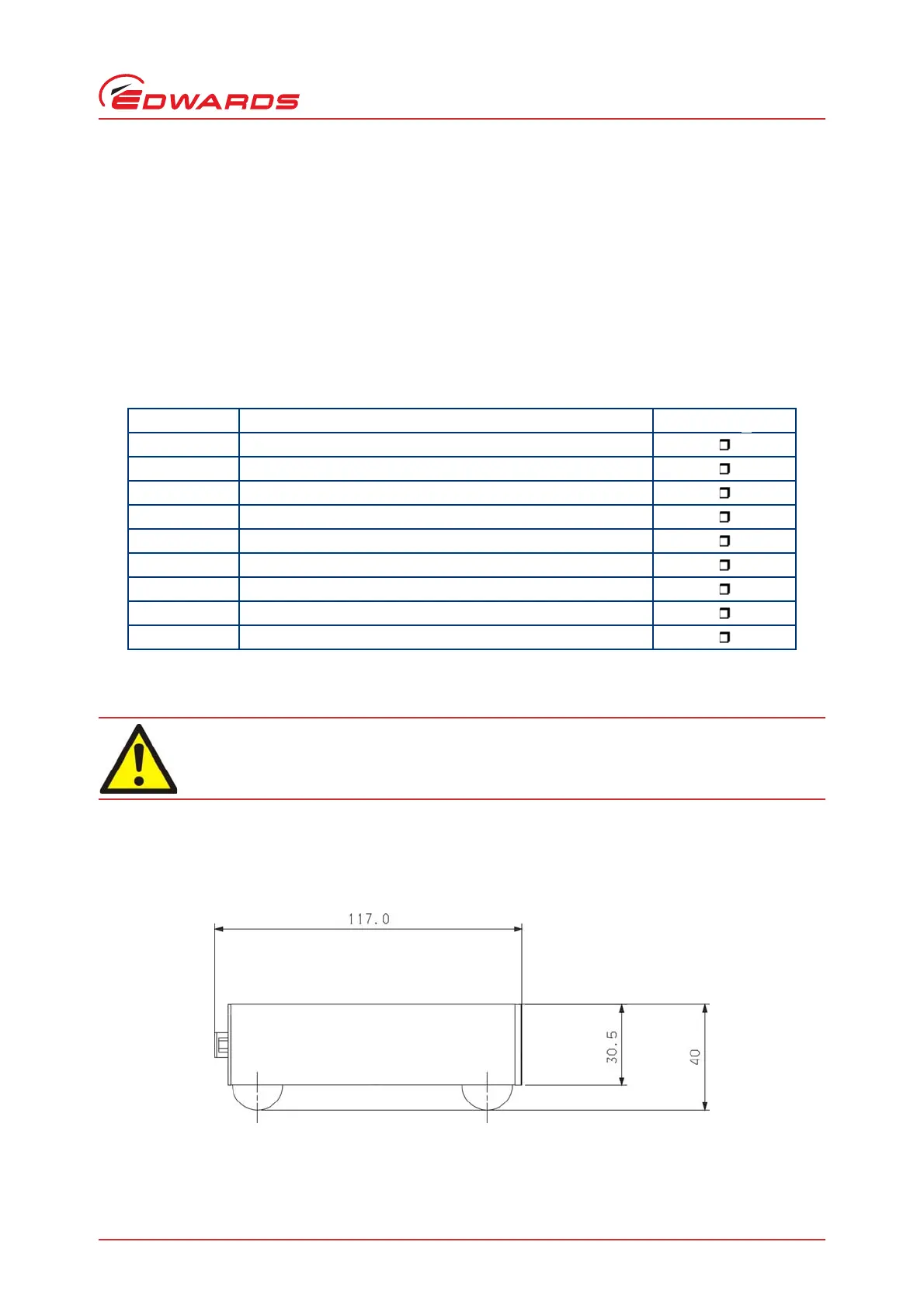

Figure 5 - Dimensions of the Profibus module (mm)
Quantity Description Check ( )
1Module
1 Quick Guide and Health and Safety Information
1 Profibus Module CD (includes main manual, GSD files)
1 DC Power Connector
2 DIN Rail clips
2 Mounting screws
1 Serial cable (TIC version only)
1Spare Fuse (DX Pump version only)
4Rubber feet
WARNING
If access to the DC power connector is restricted an additional isolation device should be provided
which will be easily accessible by an operator.
