Operation
D397-50-880 Issue C
4 Operation
4.1 Profibus system information
The Edwards Profibus Modules are for connection to a Profibus DP network and operate as V0 slaves only. The
required performance is described in standard EN50170.
The Profibus master requires a GSD file for each slave and these are provided on the CD included with the unit. The
TIC and DX pump versions require different GSD files so please ensure the relevant file (only) is installed. The ''ident''
numbers are unique for each type, and are registered with the Profibus association. The numbers are:
TIC 0831
DX 0832
Note: If the wrong GSD file is selected it will not operate the module. The GSD files must not be altered.
4.2 Start up sequence

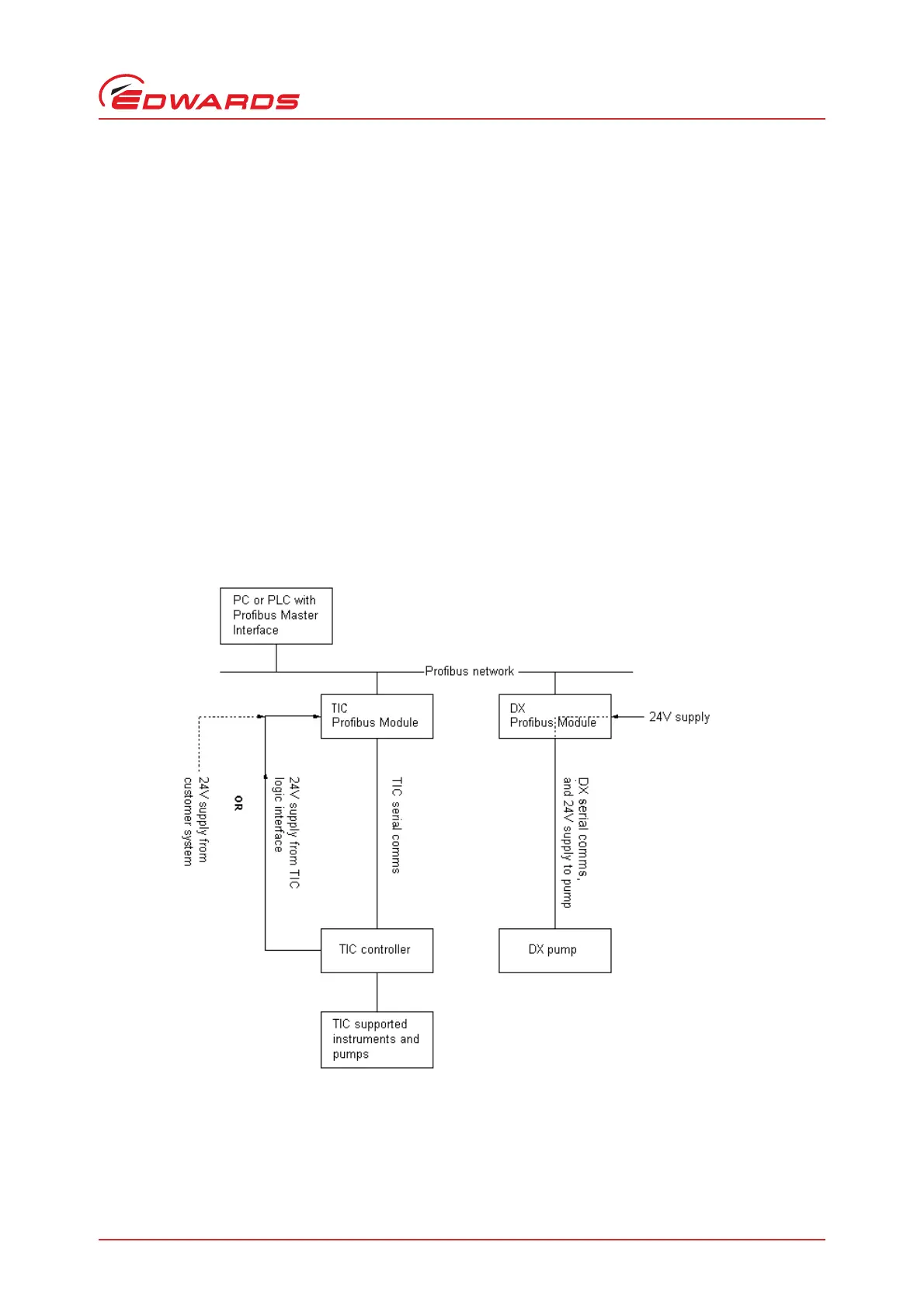

The diagram below provides an overview of how the TIC Profibus module and the DX Profibus module fit within a
Profibus Fieldbus system.
