Efka dc1550 - Fast Installation Routine (SIR)

- PF321A6012
- 9 -
F-272
End SIR
F-451
F-453
F-270
No
P
E
E
E
E
Yes
KL2438a
F-161
F-290
F-500
Code 3112
F-200
E
E
>>
E
E

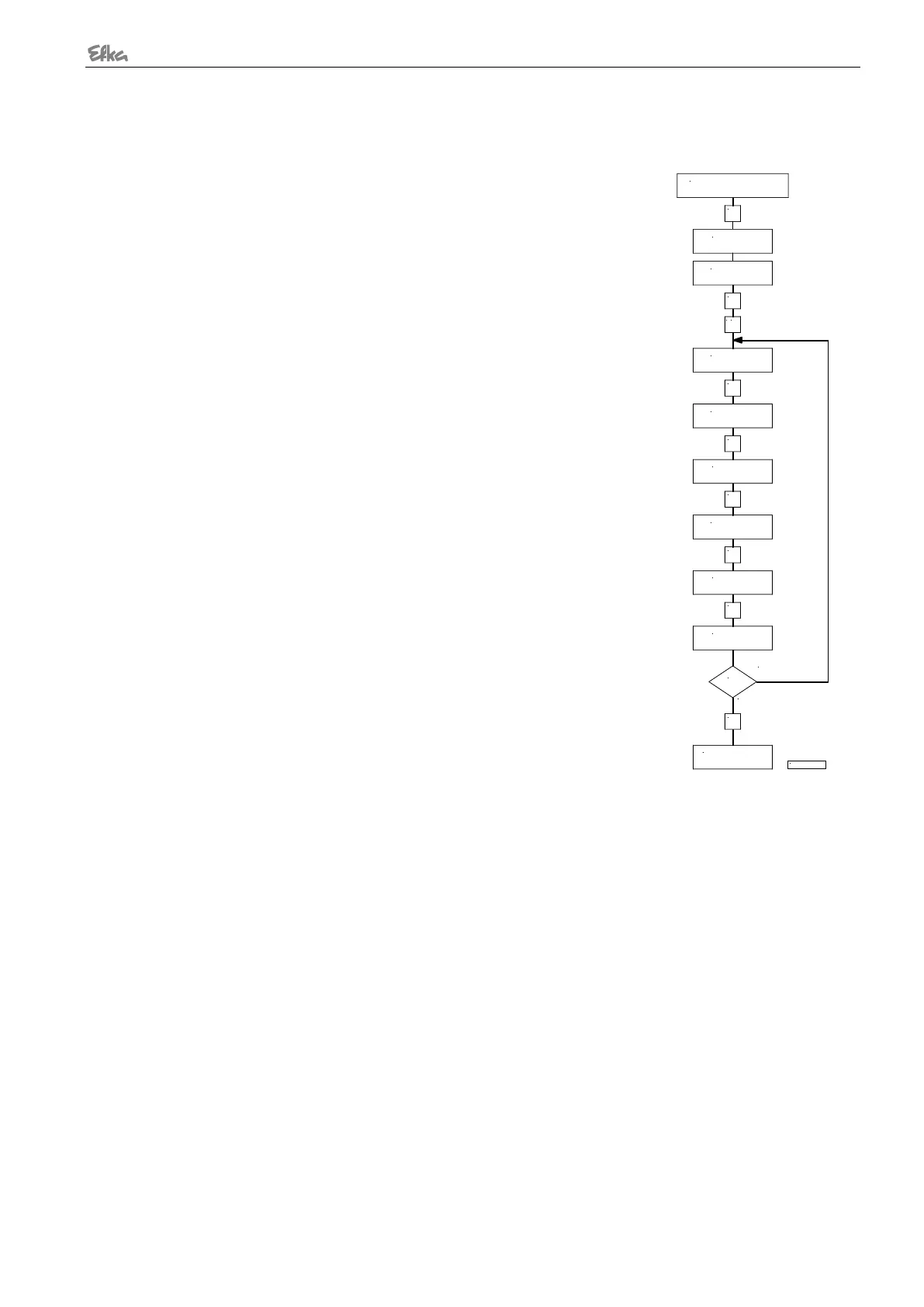

5 Setting and Putting into Service with the Aid of the Fast Installation
Routine (SIR)
The Fast Installation Routine (SIR) passes through all parameters necessary for programming the functional
sequence and the positions.
Input parameter 500 
Parameter for functional sequence “thread trimming operations” 
Parameter for direction of motor rotation 
Parameter for transmission ratio 
Important! The transmission ratio should be
determined and indicated as precisely
as possible.
Parameter for type of position sensor 
Parameter for position 1 
Parameter for position 2 
The values can be varied by pressing key +/-. When the parameter is displayed on the V810 control
panel, press the E key once more for the value to be displayed.
With SIR you can do the most important settings for initial operation with menu prompting.
For safety reasons, the menu must be executed point by point. This ensures correct setting of all important
parameters. The setting of other parameters is not affected.
