37

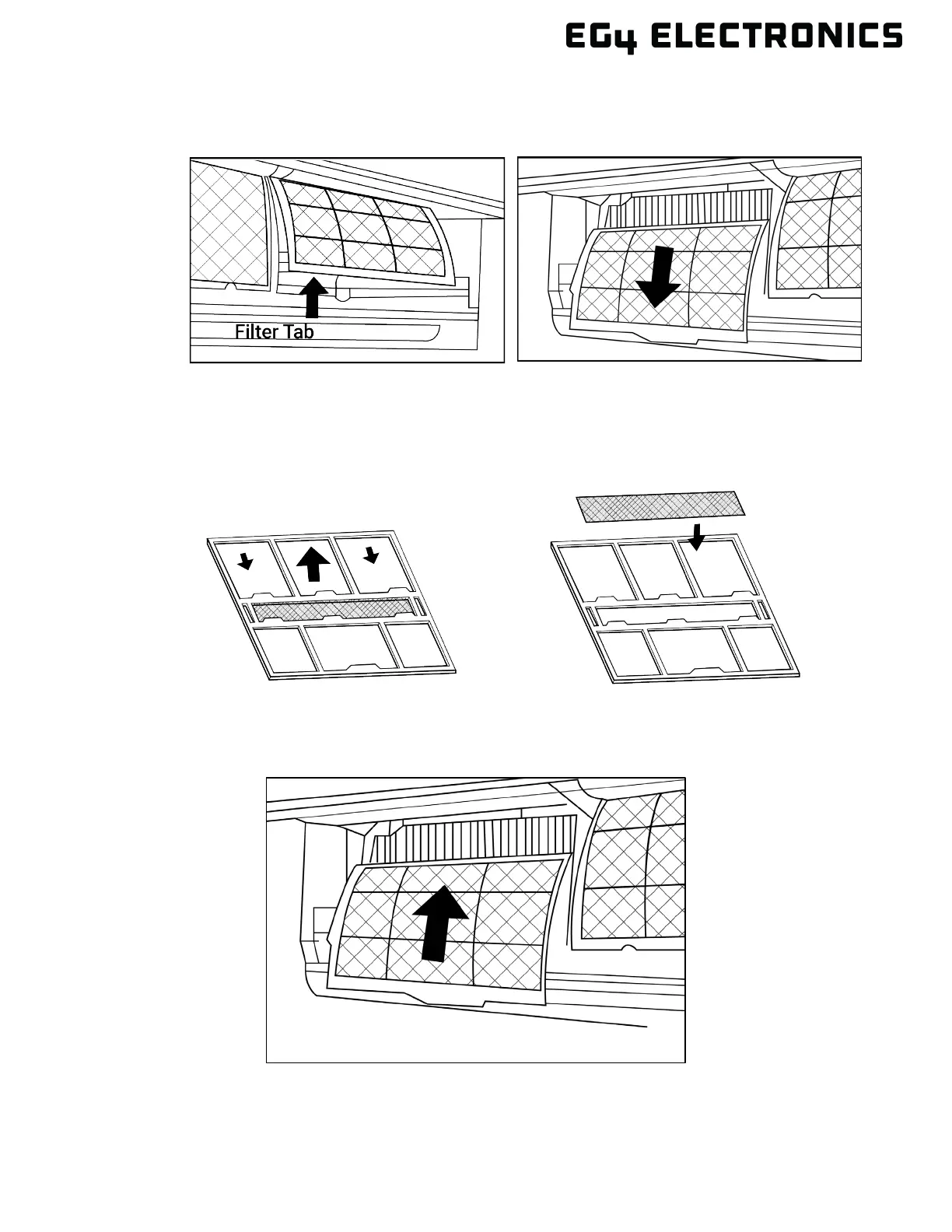

2. Use the filter tabs to lift the filter slightly upward and then pull it outwards the front of the
unit. Extract the filter by gently drawing it downward. Replace as necessary.
3. Unclip the small air-freshening filter from the larger air filter. Clean the large air filter with a
vacuum or with warm, soapy water. Be sure to use a mild detergent and rinse with fresh
water. Shake off the excess water and allow it to dry in a cool area. Once the larger air
filters are dry, re-clip the small air-freshening filter into the large air filter. Replace the small
air-freshening filter if necessary.
4. Re-insert the air filter back into the unit by gently pushing the top of the filter up into the
unit and then lowering the bottom part into place.
