Eizo CuratOR EX3242-3D User Manual

14
Chapter 1Chapter Introduction

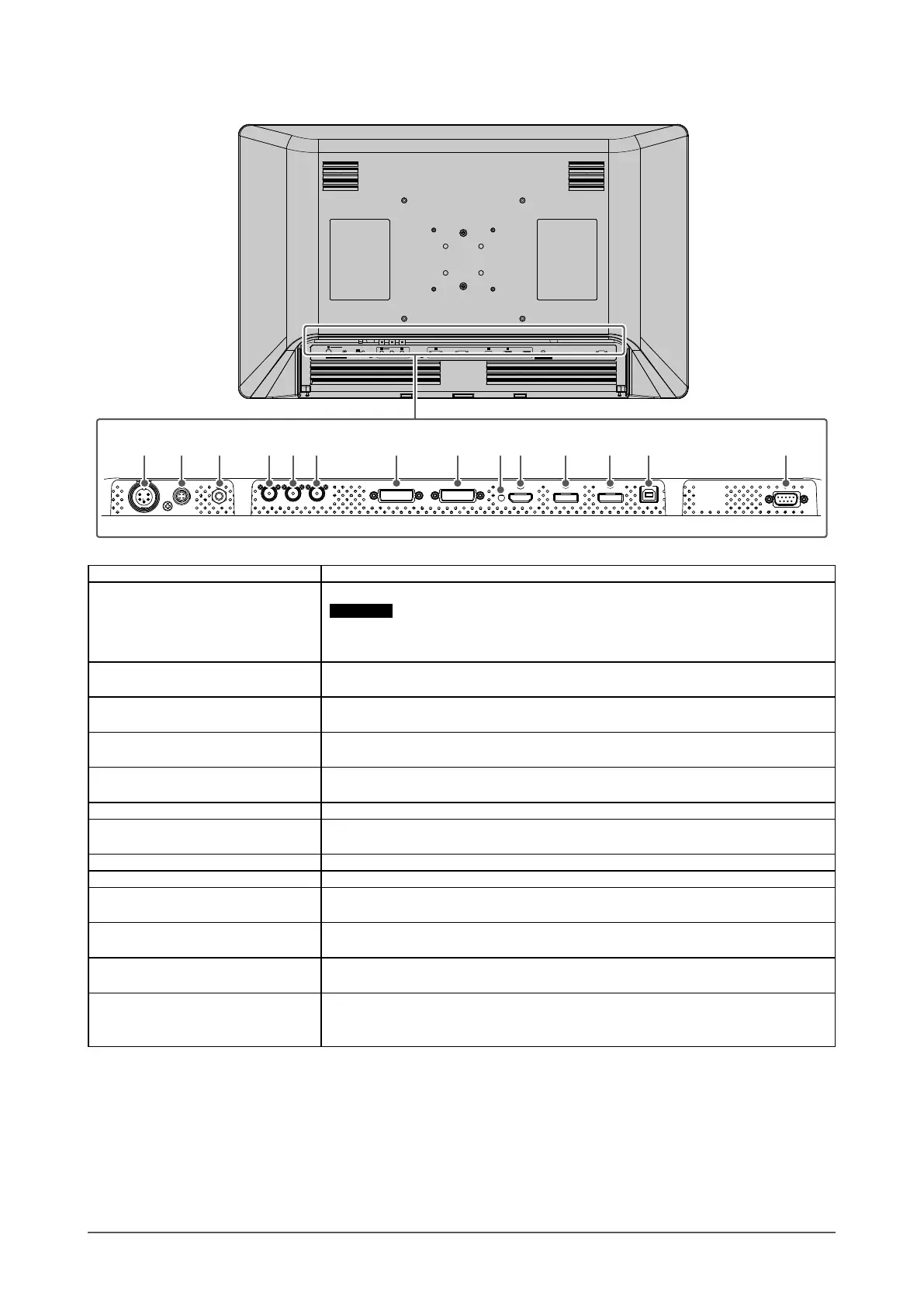

Rear
USB
OUT
DisplayPort
IN
DC
IN OUT
5V 2A
OUTIN
DVI
IN INOUT
RS-232C
HDMI
IN
12G-SDI 12G-SDI
(Maintenance only)
11
17
13
12
18 21 22 23 24
16
19
15
14
20
11. DC IN terminal Connects the DC OUT terminal of the AC adapter.
12. DC OUT terminal Used to supply 5V power to a peripheral.
Attention
• No device coming in contact with a patient may be connected to the DC OUT
terminal.
13. Potential equalization
terminal
This terminal ensures equal potential between the monitor and other devices.
Connects equipotential plugs.
14. SDI 1 input terminals
(BNC type)
Connect from devices with an SDI output terminal.
Compatible with 12G / 6G / 3G / HD-SDI.
15. SDI output terminal
(BNC type)
The signal into the SDI 1 input terminal is output as is.
16. SDI 2 input terminal
(BNC type)
Connect from devices with an SDI output terminal.
Compatible with 12G / 6G / 3G / HD-SDI.
17. DVI-D input terminal (DVI-D) Connect from devices with DVI-D output.
18. DVI-D output terminal
(DVI-D)
The signal into the DVI-D input terminal is output as is.
19. HDMI cable holder Secures the HDMI cable that is connected to the monitor.
20. HDMI input terminal (HDMI) Connect from devices with HDMI output.
21. DisplayPort input terminal
(DisplayPort)
Connect from devices with DisplayPort output.
22. DisplayPort output terminal
(DisplayPort)
The signal into the DisplayPort input terminal is output as is.
23. USB terminal
(USB upstream port, Type-B)
For maintenance. Cannot be used.
24. RS-232C terminal
(D-Sub 9pin)
This product can be controlled by connecting an external device.
Input switching and various adjustments are possible from connected external
devices.
