Install
●
Procedure
Attention
• When using another manufacturer’s arm, be sure to check the following points with the manufacturer and
select an arm conforming to the VESA standard.
- Screws: M8 × 1.25
- Depth of the hole: Max. 15 mm
- Clearance between the screw holes:
400 mm × 200 mm
- Thickness of plate: 2.6 mm
- Strong enough to support the total weight of the monitor and attachments such as cables.
• Use the arm within the following range (of tilt).
- Forward: 30°, Backward: 30°
• Do not turn the monitor in the vertical direction.
• Connect the cables after attaching the arm.
• As the monitor and arm are heavy, dropping or mishandling may result in injury or damage to the product.
• Periodically check the tightening of screws. If screws are loose, the monitor may detach and cause injury or
equipment damage.

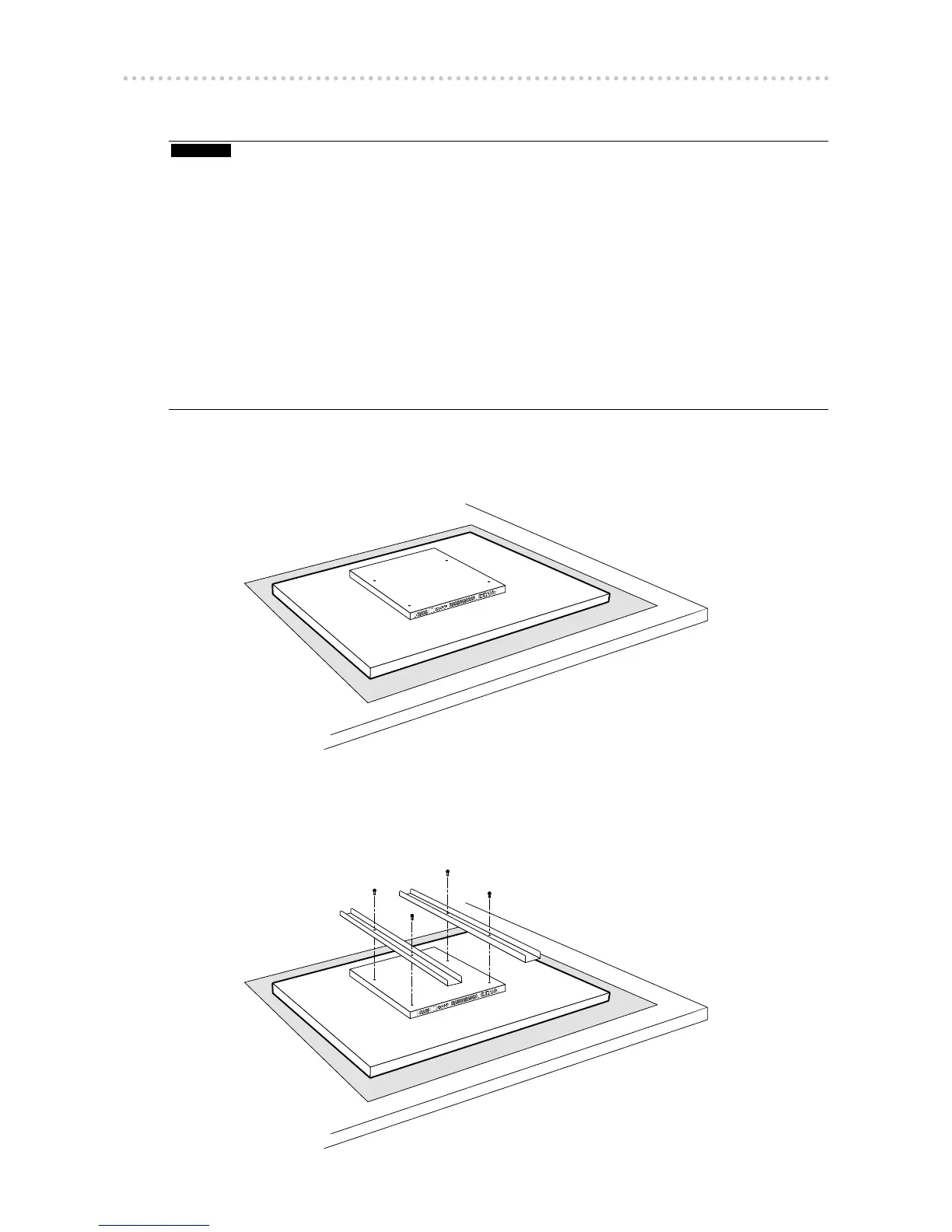

1.
Lay the LCD monitor on a soft cloth spread over on a stable surface with the
panel surface facing down.
2.
Attach the monitor to the arm.
Attach the monitor using the screws specied in the User’s Manual of the arm. For details on
attachment, including the screws, refer to the User’s Manual of the arm.
