ELAN HOME SYSTEMS TS10 User’s Guide
© ELAN Home Systems 2010 | All rights reserved.
Page 9
Security

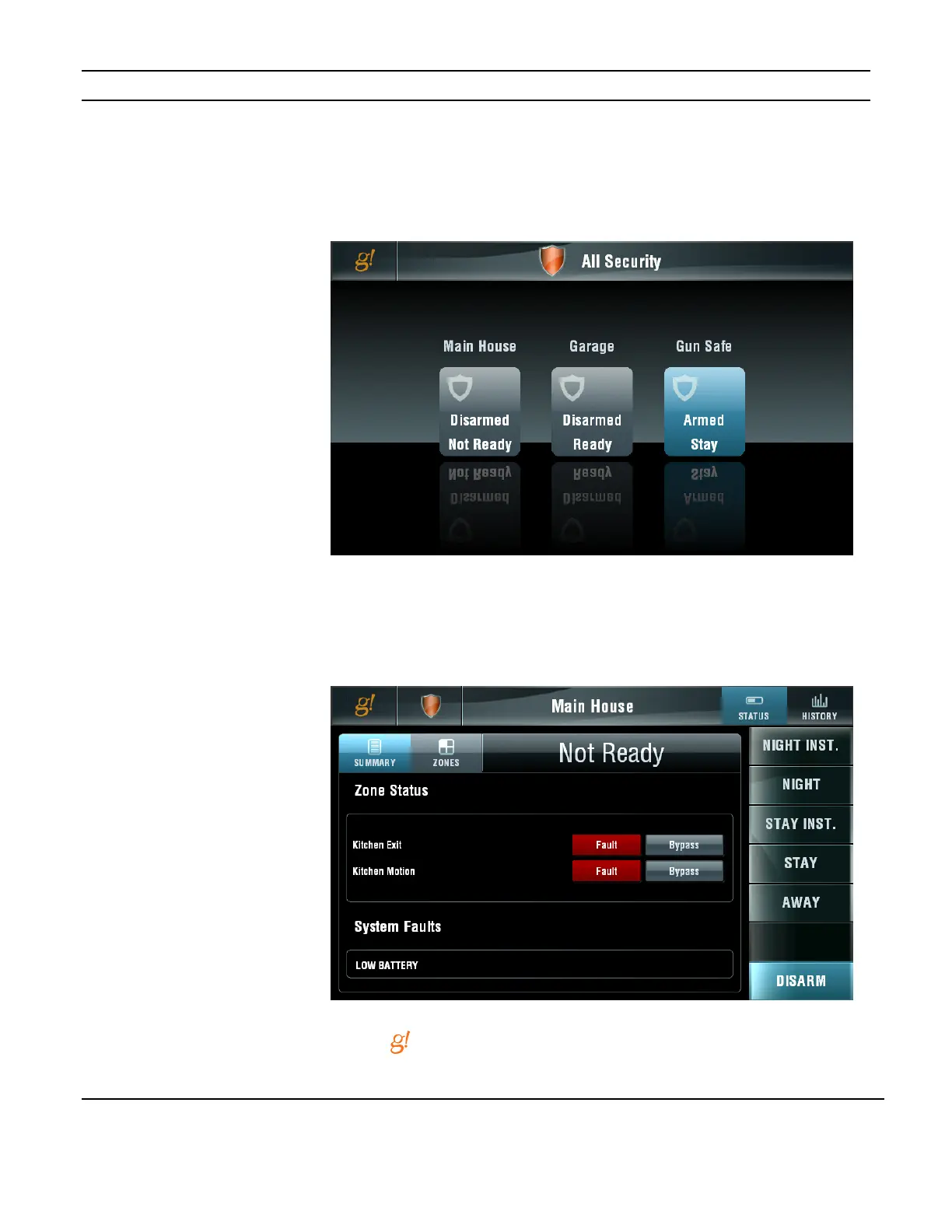

The initial screen shown when the Security icon is pressed shows all partitions (or main
areas) in the system and their status. If you have more than six partitions a scroll bar will
show at the bottom of the display to allow access to them.
Partition Status
Selecting a partition takes you to the status page for that partition. The summary below
shows that two zones are faulted in the MAIN HOUSE partition and that the backup battery
charge is low.
Selecting the
icon returns you to the Main Menu, selecting the Security icon returns you
to the partition selection page.
Figure 3-6:
Security Partitions
Figure 3-7:
Partition Status
