ELAN HOME SYSTEMS TS10 User’s Guide
© ELAN Home Systems 2010 | All rights reserved.
Page 24
Media (Continued)
Source Select Screen
On the source select screen the source selections are along the right side of the screen. To
select a source press that source’s button. The display will then switch to the main control
page for that source.
Zone volume is controlled by the UP and DOWN arrows and the MUTE button. Selecting a
source will turn the zone on. Pressing the POWER button will turn the zone off. The
currently selected zone is displayed at the top of the screen.
If a source is currently selected in the zone the display will show the controls for that
source and the zone controls will be on the right side of the display. Selecting the SOURCE
button will bring up the source select screen as shown above and allow the source to be
changed. The currently selected source name is displayed in the upper right corner.

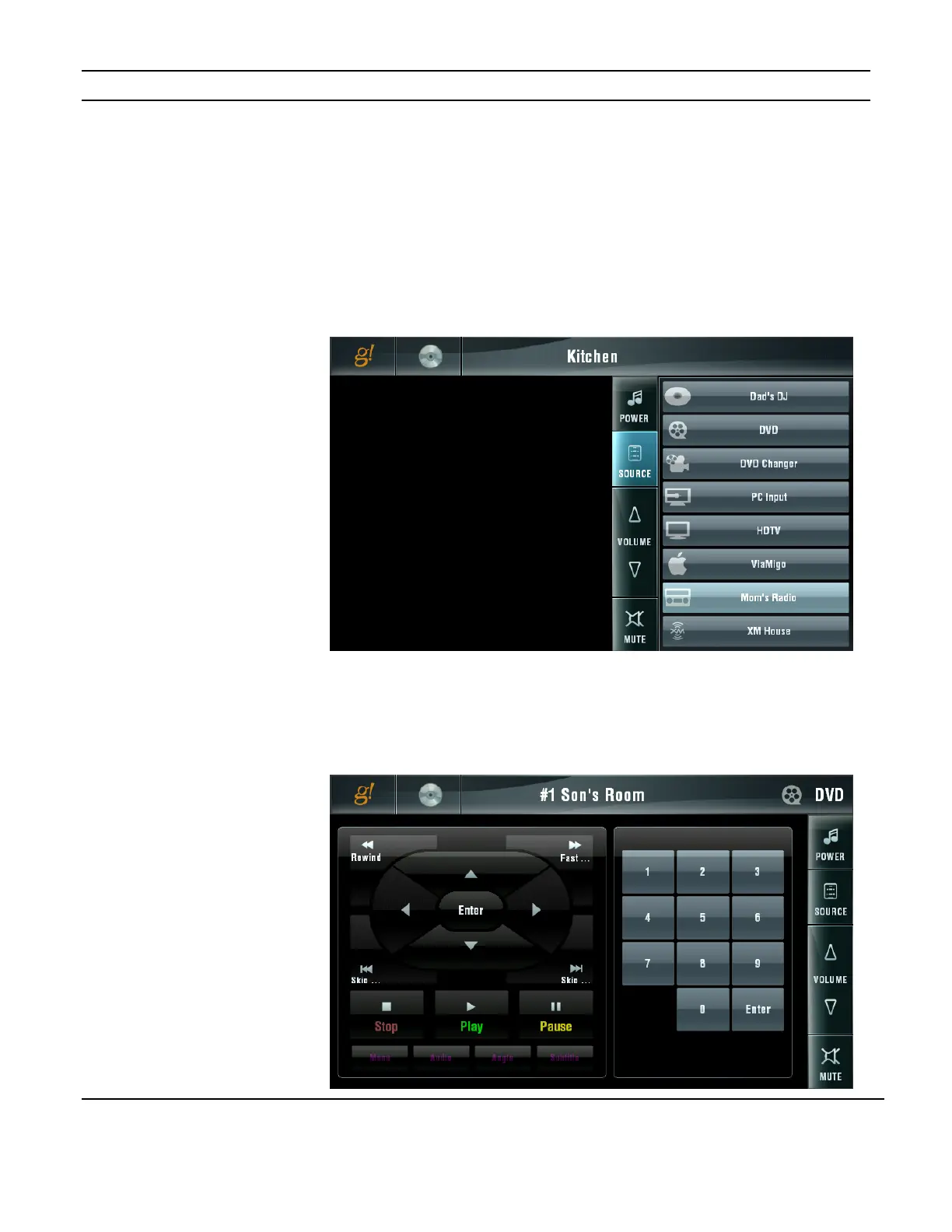

Figure 3-31:
Media Page
Source Selection
Figure 3-32:
Media Page
Source Controls
