ELCA MAGO - TECHNICAL DATA; GENERAL FEATURES; TRANSMITTING UNIT FEATURES; RECEIVING UNIT FEATURES

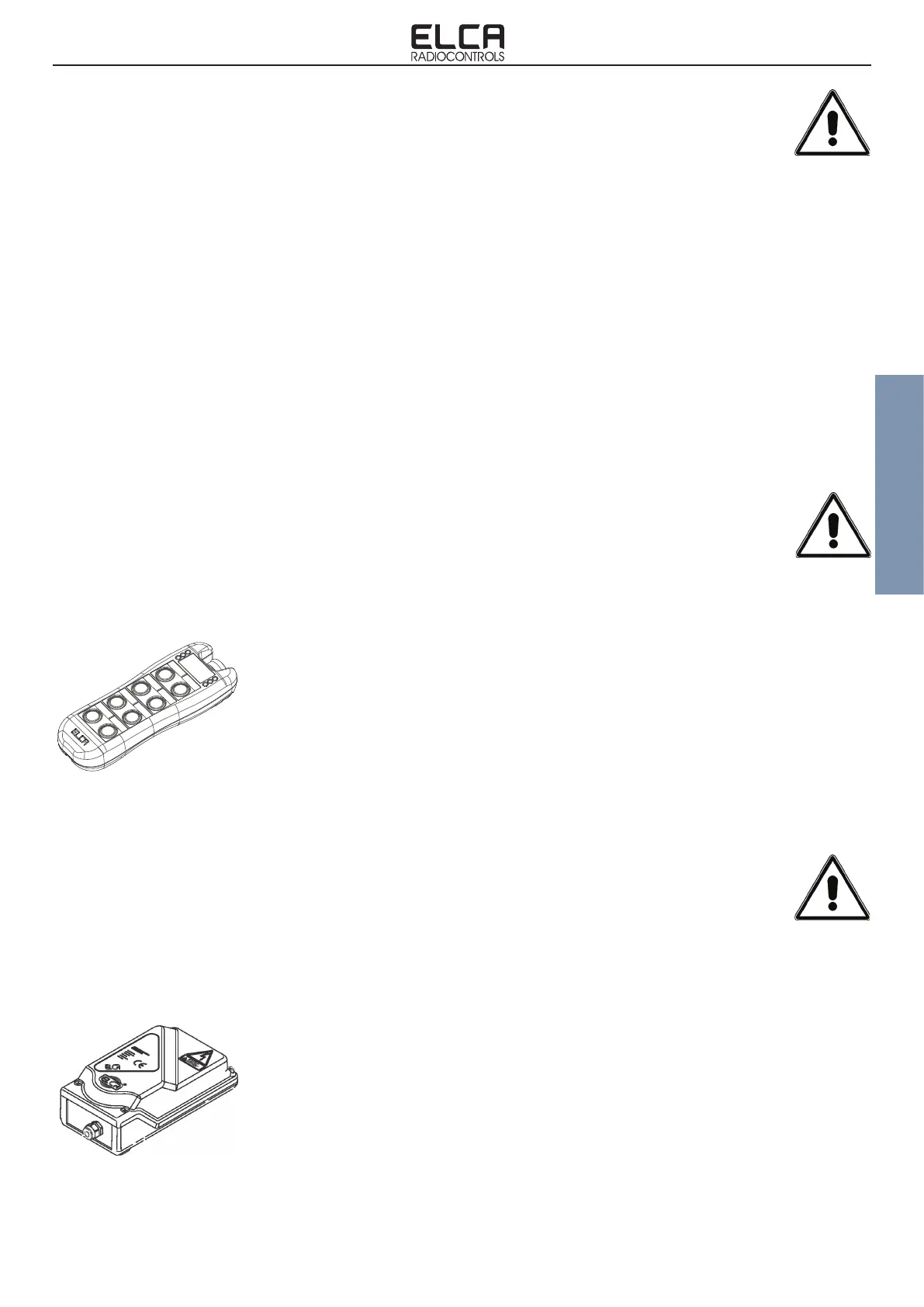

ENG man MAGO-EVO 03 MAGO-EVO Radio Remote Control
- Page 9 -
ENGLISH
GENERAL FEATURES.
Manufacturer ......................................................................................................................................................ELCA S.r.l.
Radio Remote Control System type ........................................................................................................................ MAGO
Working frequency ..........................................................................................................................433,050 - 434,790 MHz
Channel spacing used ............................................................................................................................................. 25 kHz
Working temperature ........................................................................................................................from -25 °C to +55 °C
Storage and transportation temperature............................................................................................from -25 °C to +55 °C
Operating range......................................................................................................................................................... 100 m
Command response time ..................................................................................................................................... < 100 ms
Active Stop time....................................................................................................................................................... < 100 s
Passive Stop time (maximum stop time) .................................................................................................................. < 0,5 s
Performance Level of the safety functions in accordance with EN ISO 13849-1
Stop protection ............................................................................................................................................................PL d
Protection from unintended movements from the rest position (UMFS) ...................................................................... PL c
3.1 GENERAL FEATURES
3. TECHNICAL DATA
Model .............................................................................................................. AT MAGO-EVO
Radio transceiver module .........................................................................................WT08EL
Incorporated ...............................................................................................................antenna
Li-poly 3.7 V battery............................................................................................power supply
Current draw ...............................................................................................................< 30 mA
Absorbed power ...................................................................................................... < 0.15 W
RF effective radiated power ..............................................................................< 10 mW ERP
Run time with fully charged battery at 20 °C ......................................approximately 40 hours
Run time after the rst low battery warning ............................................. approx. 60 minutes
Run time after the second low battery warning ...................................................... 5 minutes
Run time after the third low battery warning .......................................................100 seconds
Protection degree ............................................................................................................IP65
Dimensions ..................................................................................................... 193x72x44 mm
Weight ............................................................................................................................250 g
Model ....................................................................................................... AR MAGO FLEXI-A
Radio transceiver module ........................................................................................WM32EL
Incorporated ...............................................................................................................antenna
AC power supply .................................................................... 48/55/110/230 V [ 50/60 Hz
Absorbed current ....................................................................................... 170/150/80/40 mA
STOP contacts protection fuses ...........................................................F1, F2= T 4 A L 250V
SAFETY contacts protection fuses .......................................................F3, F4= T 4 A L 250V
Power supply input protection fuse .....................................................F5 = T 250 mA L 250V
Absorbed power .......................................................................................................... < 9 VA
Maximum capacity of the control circuit contacts .............................................................10 A
Maximum capacity of the STOP circuit contacts ................................................................4 A
Maximum capacity of the SAFETY circuit contacts ............................................................4 A
Maximum contact voltage .........................................................................220 V [ 50/60 Hz
Protection degree ........................................................................................................... IP65
Dimensions ...................................................................................................135x255x85 mm
Weight ......................................................................................................................... 1.2 Kg
3.2 TRANSMITTING UNIT FEATURES
3.3 RECEIVING UNIT FEATURES
