ELCA MAGO - RECEIVING UNIT; DESCRIPTION OF OPERATIONS

ENG man MAGO-EVO 03 MAGO-EVO Radio Remote Control
- Page 12 -

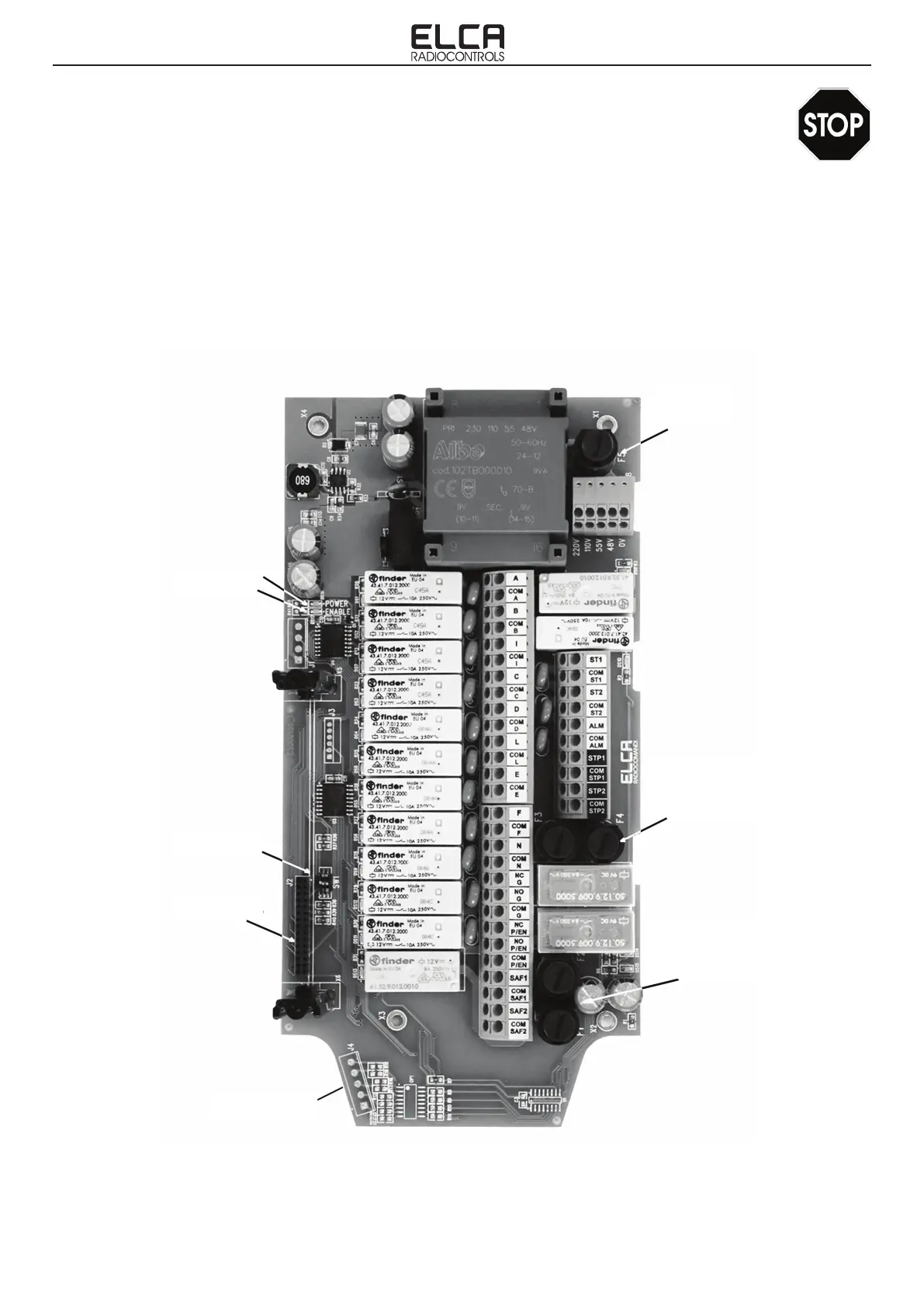

The receiving unit AR MAGO FEXI.A consists of three main parts.
- MOTHER BOARD. It contains the STOP, SAFETY and command relays, the terminals for the electrical connection,
the power supply stage and support with the electrical connection of the radio receiving module.
- RADIO RECEIVING MODULE. It contains all the electronics for the reception, the decoding of the commands
transmitted from the transmitter and the identication of the system. The card with the identication code is installed
on the radio receiver module.
- IDENTIFICATION CODE CARD. It contains, as the name suggests, the identication code of the system that is
unique. This code allows the system to recognise the signals transmitted from the transmitter to which it is paired.
The operating data of the system is also stored on this card.
5.1 DESCRIPTION OF OPERATIONS
5. RECEIVING UNIT
POWER SUPPLY
FUSE MAX 250 mA
POWER LED
ENABLE LED
DIP SWITCH
RADIO MODULE
CONNECTOR
TX SIGNAL
CONNECTOR OPTION
SAFETY COMMAND FUSES
MAX 4 A
F1 SAFETY 1
F2 SAFETY 2
STOP COMMAND FUSES
MAX 4 A
F3 STOP2
F4 STOP1
