elco Firebird FB 4 R LN - Combustion head position check; Electrode position check

MAINTENANCE
45/56
EN

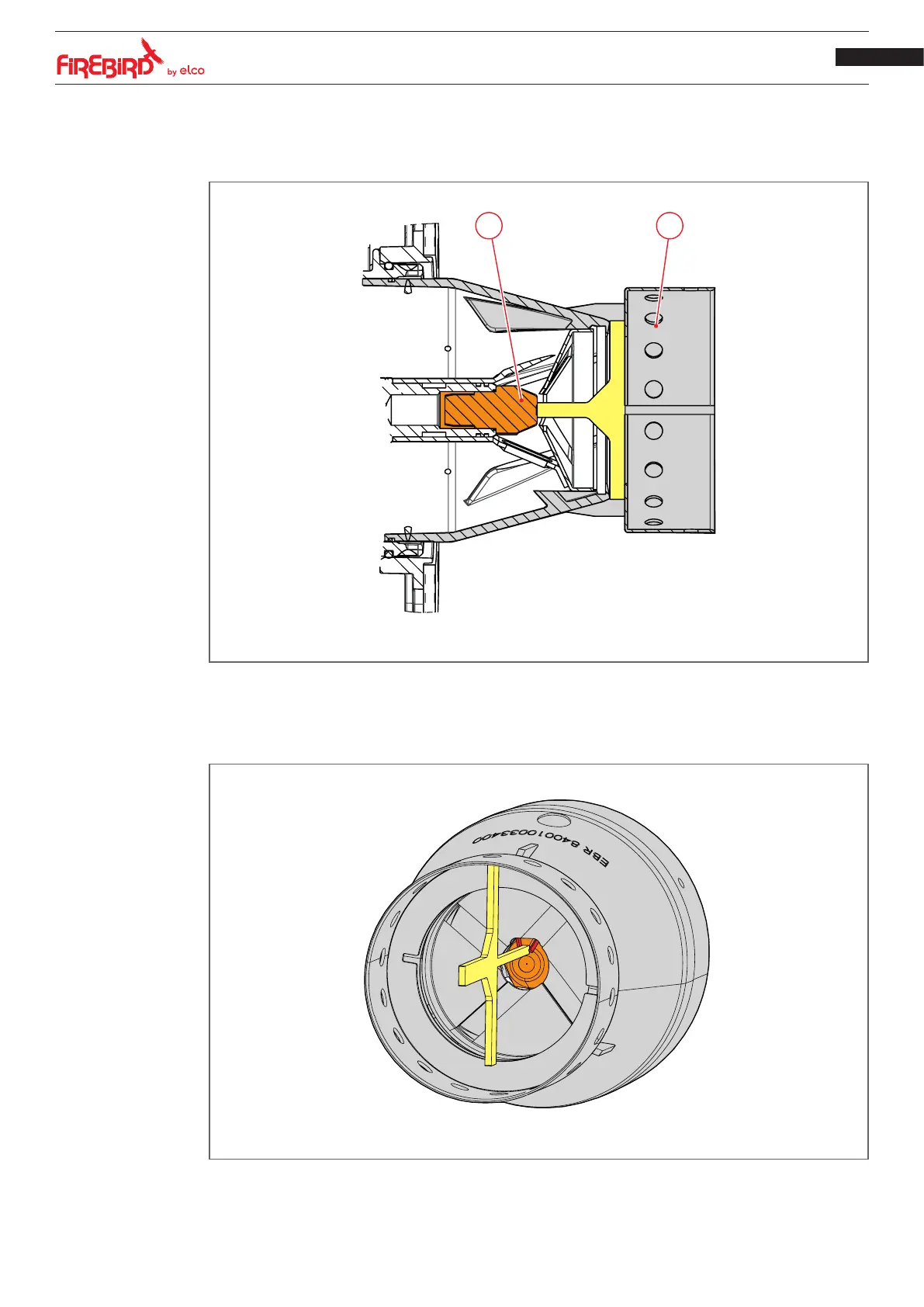

6.4.3 Combustion head position check
To check the position of the combustion head:
– check the distance between the combustion head (1) and the nozzle (2) as shown in the gure.
12
Fig. 43
6.4.4 Electrode position check
– Check the distance between tips of electrodes (2 mm)
Fig. 44
– Check the position of the electrodes assuring that they are centered as shown in “Fig. 45”.
