GENERAL
12/56
EN

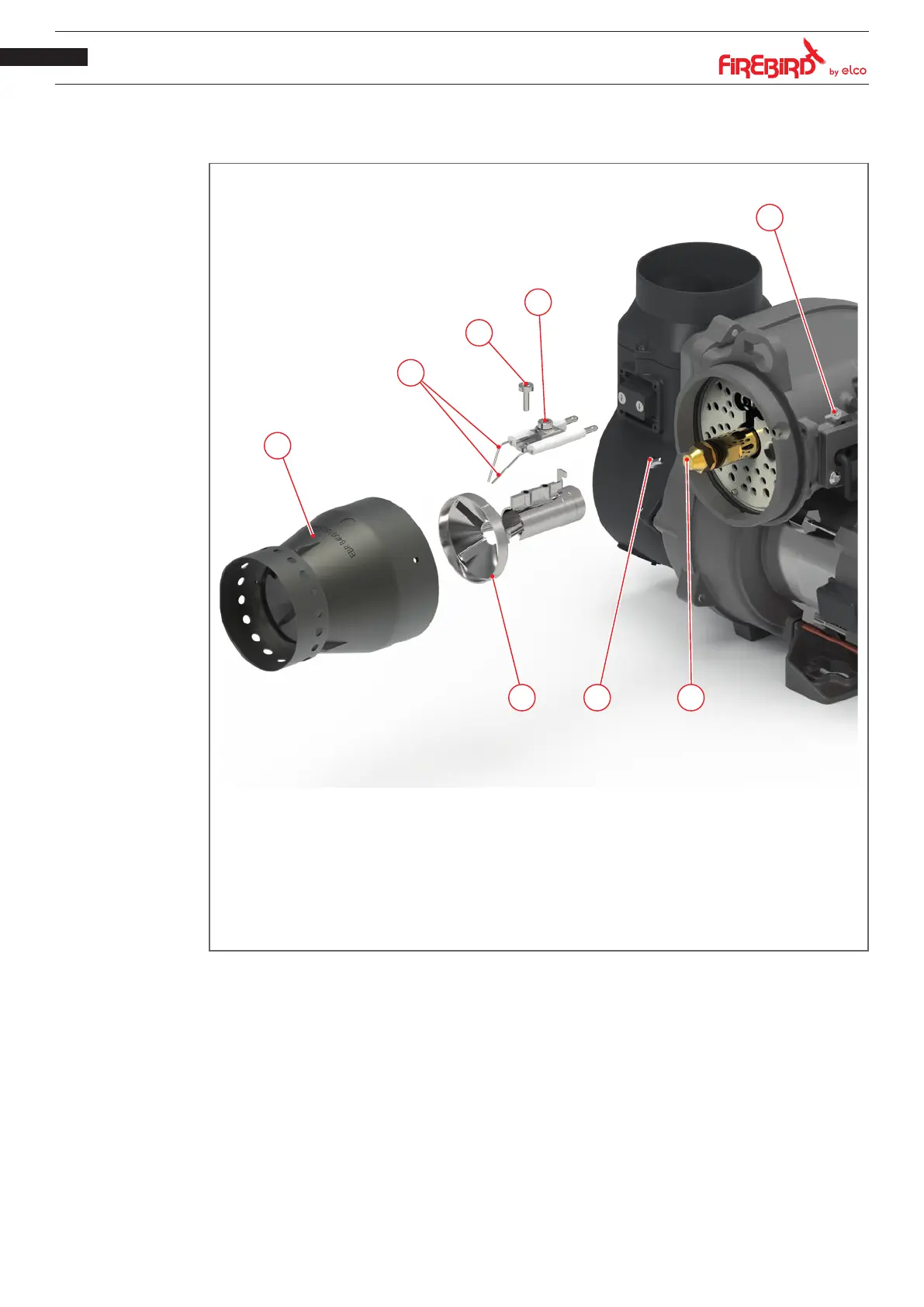

2.4.2 Structure of the combustion head
1
5
6
4
3
2 76
1
Combustion head
2
Diffuser
3
Electrode group
4
Diffuser fixing screw
5
Electrode group fixing screw
6
Combustion head fixing screw
7
Nozzle
Fig. 4
