5
2.2 Connecting to a compressed air supply
1. Connect the filter supplied with your tester to a compressed air supply;
installation of a stopcock before the filter is recommended.

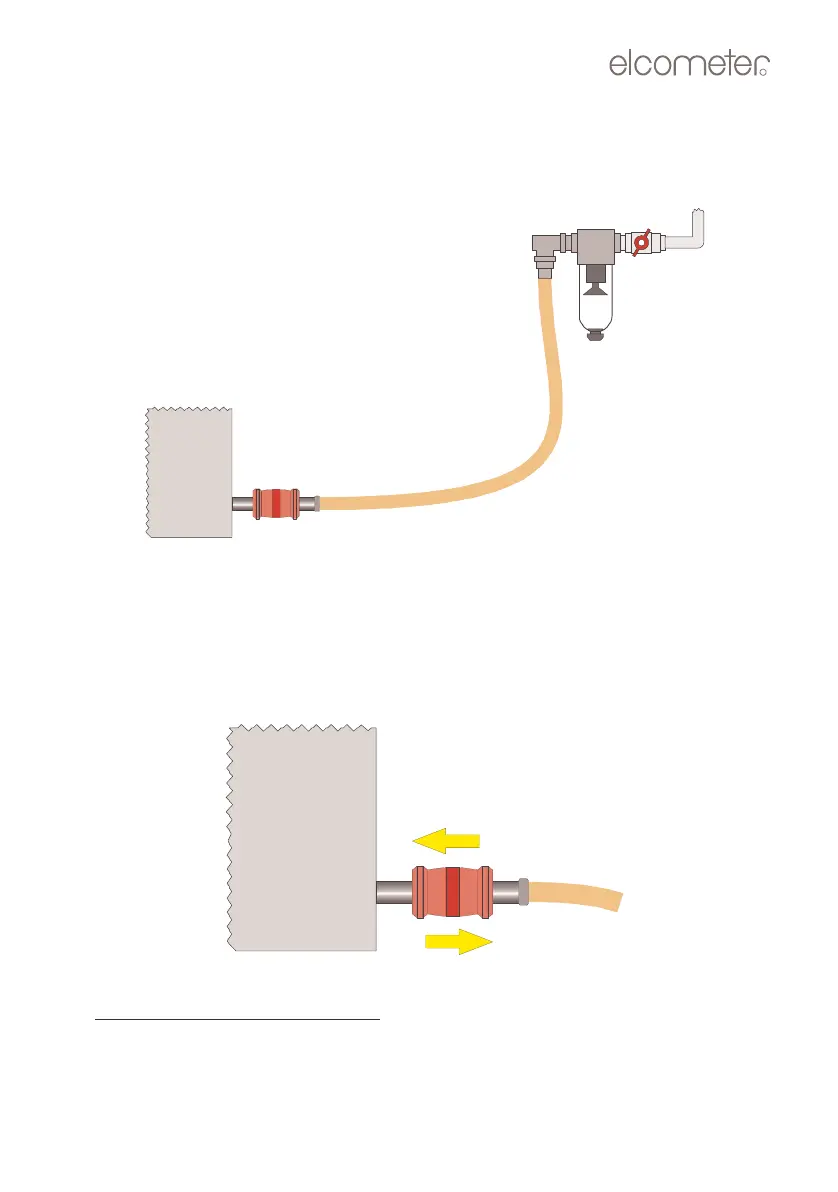

Figure 2. Compressed air filter connected to inlet at rear of tester
2. Connect the flexible pipe to the inlet located at the rear of the tester and
tighten the screw clip.
3. Ensure that the sliding stopcock at the rear of the tester is in its closed
a
position (Figure 3).
Figure 3. Sliding stopcock at rear of tester
a. When the sliding stopcock is in its closed position, the pneumatic pipework and
cylinders within the tester are vented to atmosphere. When this has been done, the
table can then be moved by hand.
Op_1535_01 A5.fm Page 5 Wednesday, August 8, 2007 3:59 PM
