INFRARED REMO TE CONTROL RECEIVER
COOL: Cooling LED
HEAT: Heating LED
TIMER : T imer active
OPER :
STBY:
MODE:
Operation LED. Comes on when the system
is
operating.
Flashes to indicate reception of an
infrared
signal.
Standby LED . Lit when
the
system
is connected and
ready to receive commands
from
the remote control
unit.
Emergency
switch.
In case of unavailability
of the
remote
unit, this switch is used to select heating or
cooling.
NOTE:
The COOL and HEA T LEDs only come on when the receiver
MODE switch is used.

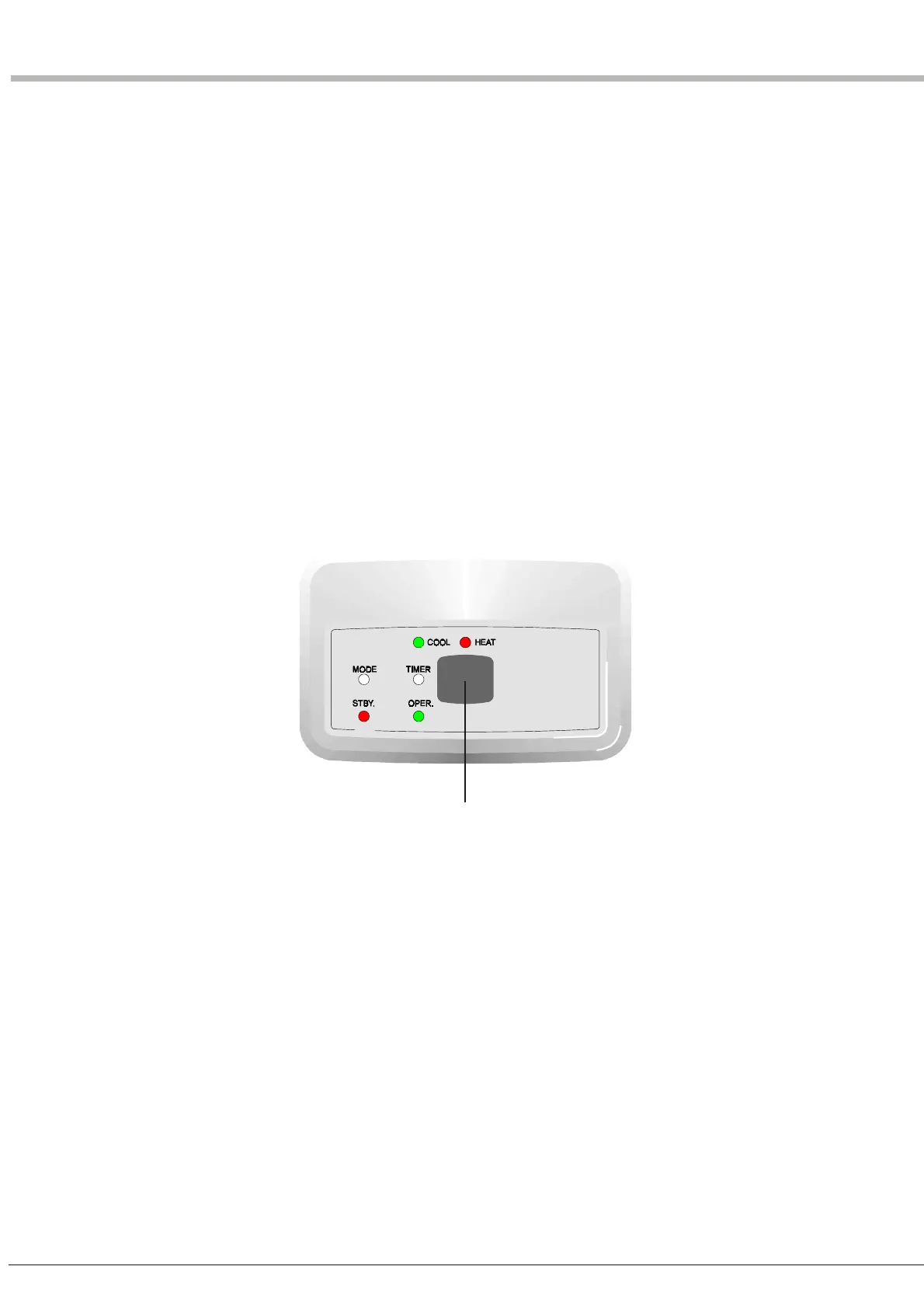

Infrared signal receiver
