OUTLINE DIMENSIONS
Revision Y05-01Service Manual - DNG Series
4. OUTLINE DIMENSIONS

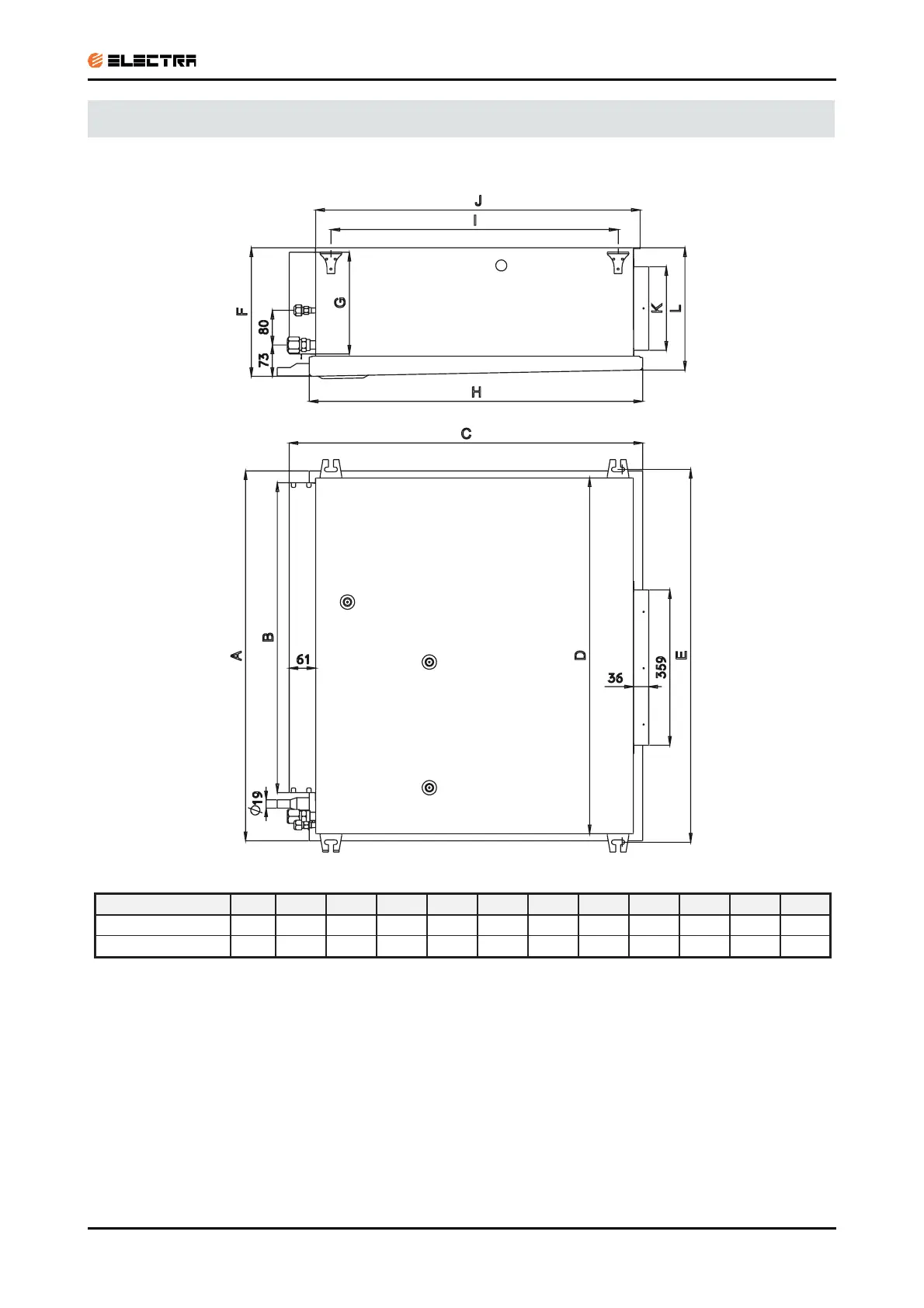

4.1 Indoor Unit: DNG 18, 24, 30, 37, 44
Model A B C D E F G H I J K L
DNG 18,24,30
790 653 749 758 797 256 195 702 599 684 162 242
DNG 37,44
854 715 816 822 861 297 235 770 663 749 193 282
