REFRIGERATION DIAGRAMS
Revision Y05-01Service Manual - DNG Series
11. REFRIGERATION DIAGRAMS
11.1 Heat Pump Models

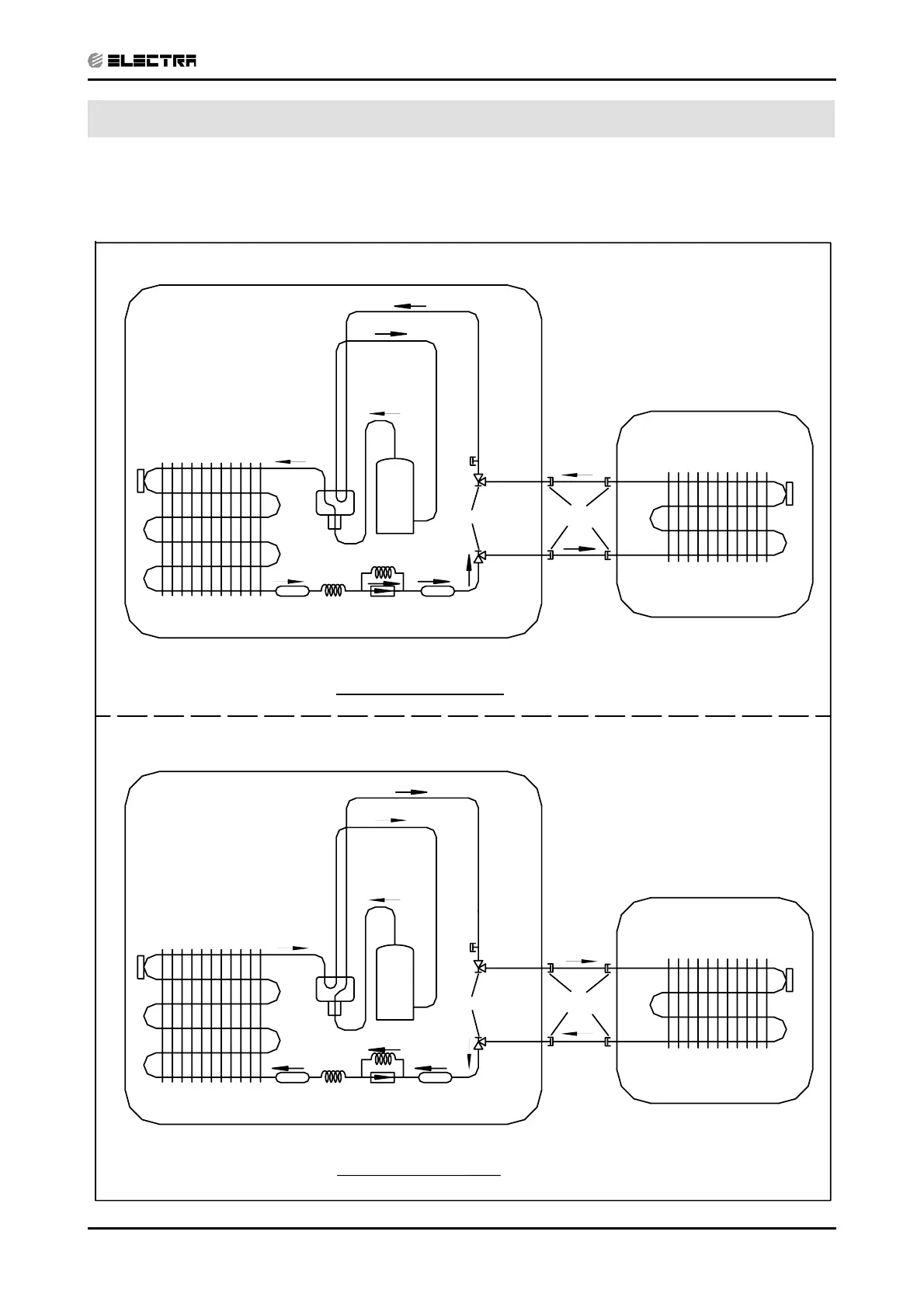

11.1.1 DNG 18/ GC 18 RC
Strainer
Strainer
valve
Check
Capillary
tube
Capillary
tube
tube
Capillary
tube
Capillary
Sensor
Indoor coil
connection
Flared
Valves
port
Service
r
o
sserpmoC
valve
Reverse
Strainer
Outdoor coil
Sensor
Indoor coil
Sensor
connection
Flared
Valves
port
Service
rosserpmoC
valve
Reverse
Strainer
Outdoor coil
Sensor
Check
valve
INDOOR UNIT
OUTDOOR UNIT
HEATING MODE
COOLING MODE
INDOOR UNIT
OUTDOOR UNIT
