ELECTRICAL CONNECTIONS
Revision Y05-01Service Manual - DNG Series
10. ELECTRICAL CONNECTIONS

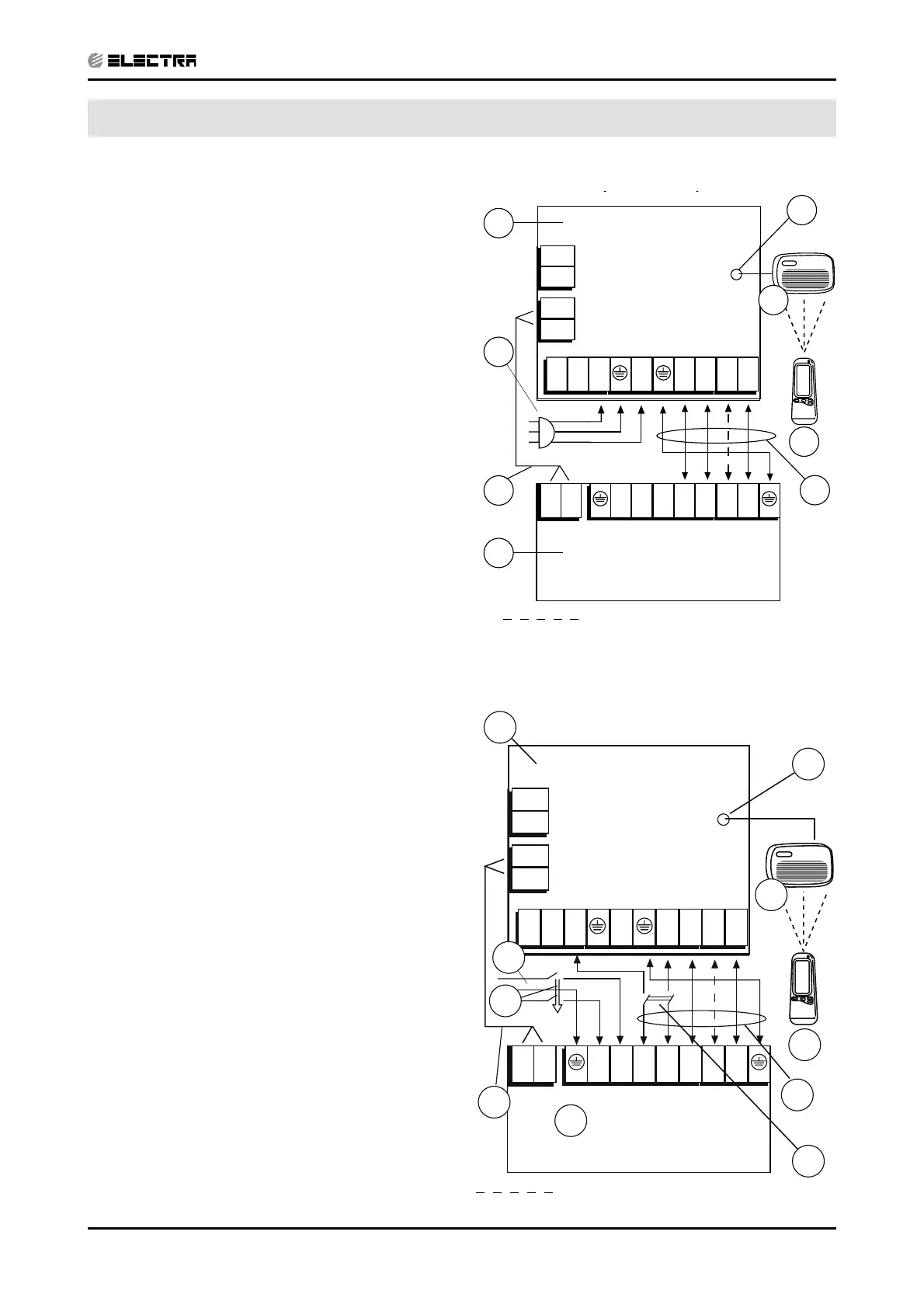

10.1 DNG 18 1PH
1. Indoor Unit
2. Outdoor Unit
3. Power supply
4. Control cable (2 x 0.5mm²)
5. Display connector
6. Display unit
7. Wireless remote control
8. Inter connecting cable (5 x 2.5mm²)
10.2 DNG 24, 30, 37, 1PH
1. Indoor unit
2. Outdoor unit
3. Power supply cable
4. Control cable (2 x 0.5mm²)
5. Display connector
6. Display unit
7. Wireless remote control
8. Inter connecting cable (5 x 2.5mm²)
9. Switch ON-OFF
10. Circuit breaker
()
CLOCK
OUT
L3
L2
L
L1
L
N45
6N
89
NL L N
456
For Heat-pump units only
1
2
3
4
5
6
7
8
(7, 9, 10.5Kw units)
CLOCK
OUT
L3
L2
L
L1
L
N456N
8 9
NLLN
456
For Heat-pump units only
1
2
3
4
5
6
7
8
10
9
