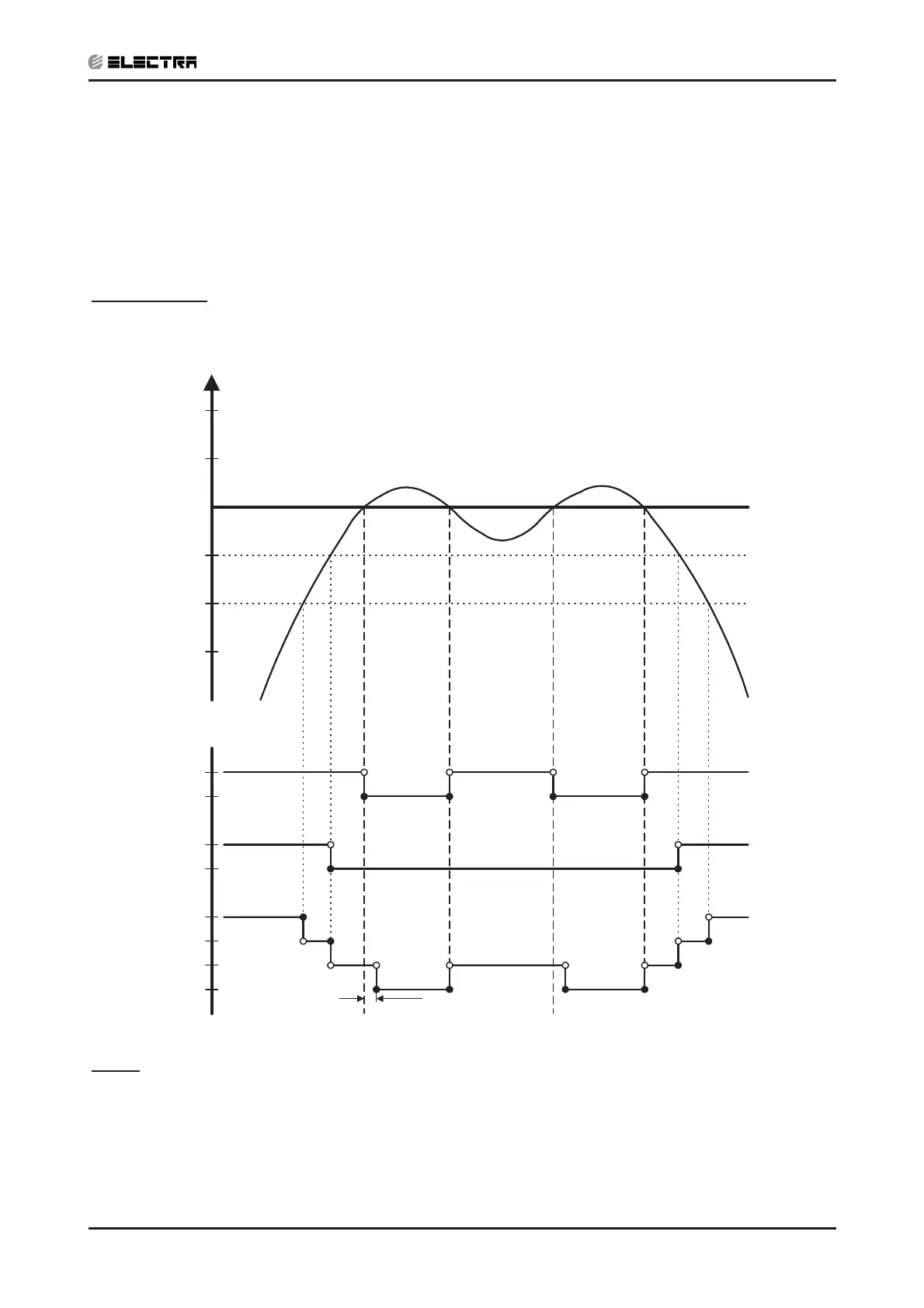

13.5.8 Heating, RH Group, with Autofan
Mode: Heat, Auto (at Heating)
Temp: Selected desired temperature
Fan: Auto
Timer: Any
I Feel: On or Off
Control function
Maintains room temp at desired level by controlling the 2-Stage Electric Heaters.
(RT - SPT) [
o
c]
+2
+1
0
-1
-2
-3
ON
OFF
ON
OFF
H
OFF
L
30 sec
M
HE1
HE2
IFAN
Notes:
1) COMP (or WVL), OFAN and RV are always OFF.
