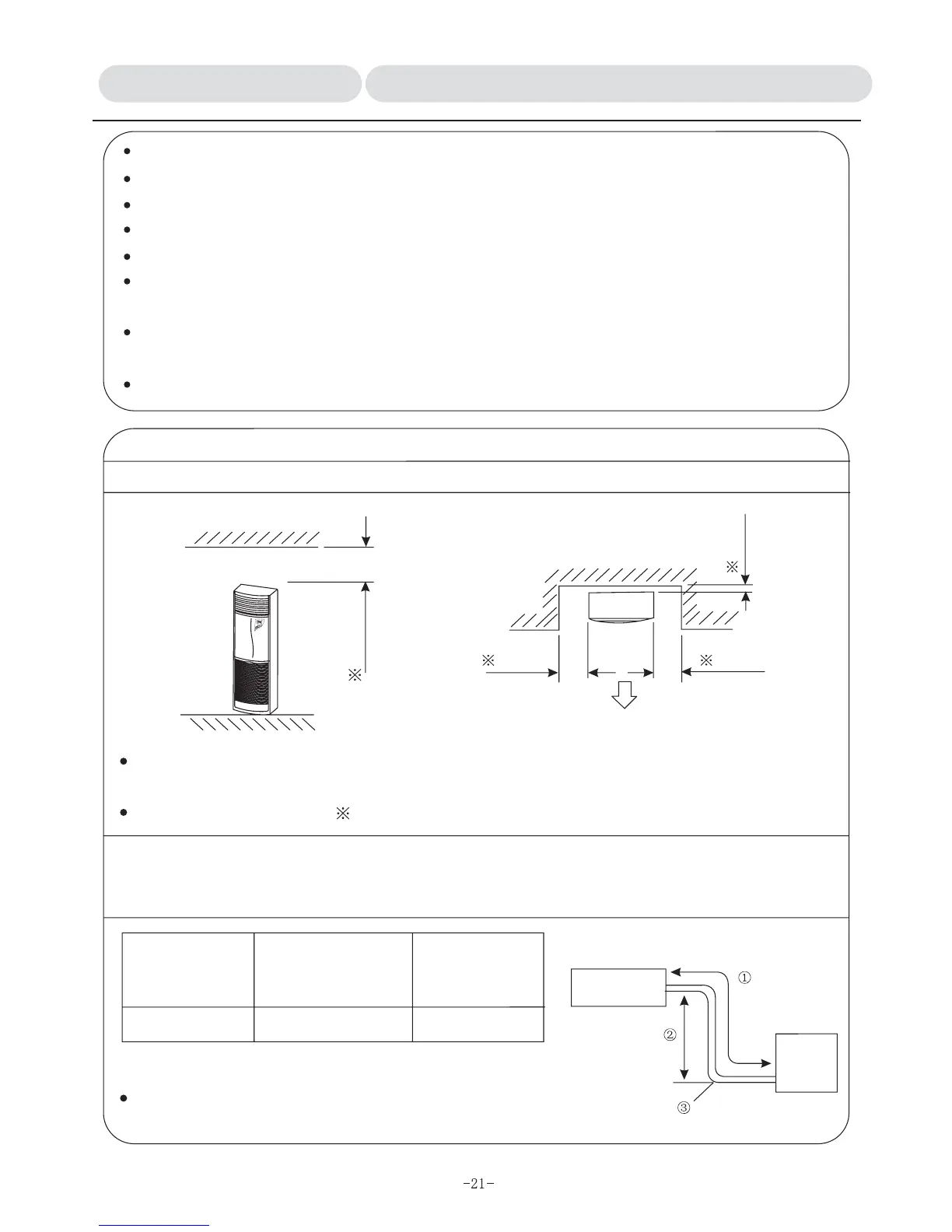

INSTALLATION MANUAL 3.1 Selecting Location for Indoor Unit Installation
FM
FM
12
AUTO
C
AM
To be located at a place that the air blown-out can reach all room corners.
Avoid location that could be influenced by outdoor air.
Avoid location with obstructions interfering free flow of air blowing out and air intake.
Avoid places with oily mist and vapors.
Avoid location that may produce, inflow, and hold and leak flammable gas.
Avoid installing near the equipment that may produce high frequency (such as high frequency electric
welder).
Please do not set up fire alarm at air outlet.
(When in heating mode, fire alarm may produce wrong actions because of the warm air.)
Avoid location using special sprayer (sulfur type) frequently.
1.Installed on leveled and firm floor.
2.Space for installation and service.
(Unit:mm)
Min 300
Min 50
Min 100
Min 100
In consideration of easy and safe operation on installation, make sure there are enough spaces between
the unit and wall .
Dimension which marked with sign ,floor and wall must fit the fireproof requirement.
3.As for height difference between indoor unit and outdoor unit, length
of refrigerant tube and quantities of bending tubes, please check if
they are within the limits.
1. Length of tube 2. Height difference 3. Quantities of
(single way) bending tubes
Max. 40m. Max. 20 m Max. 10
PCS
.
Indoor Unit
Outdoor
Unit
It makes no difference which one of indoor unit or outdoor unit is higher.
