Example of measures preventing dumping
FM
FM
12
AUTO
C
AM
INSTALLATION MANUAL 3.2 Indoor Unit Installation

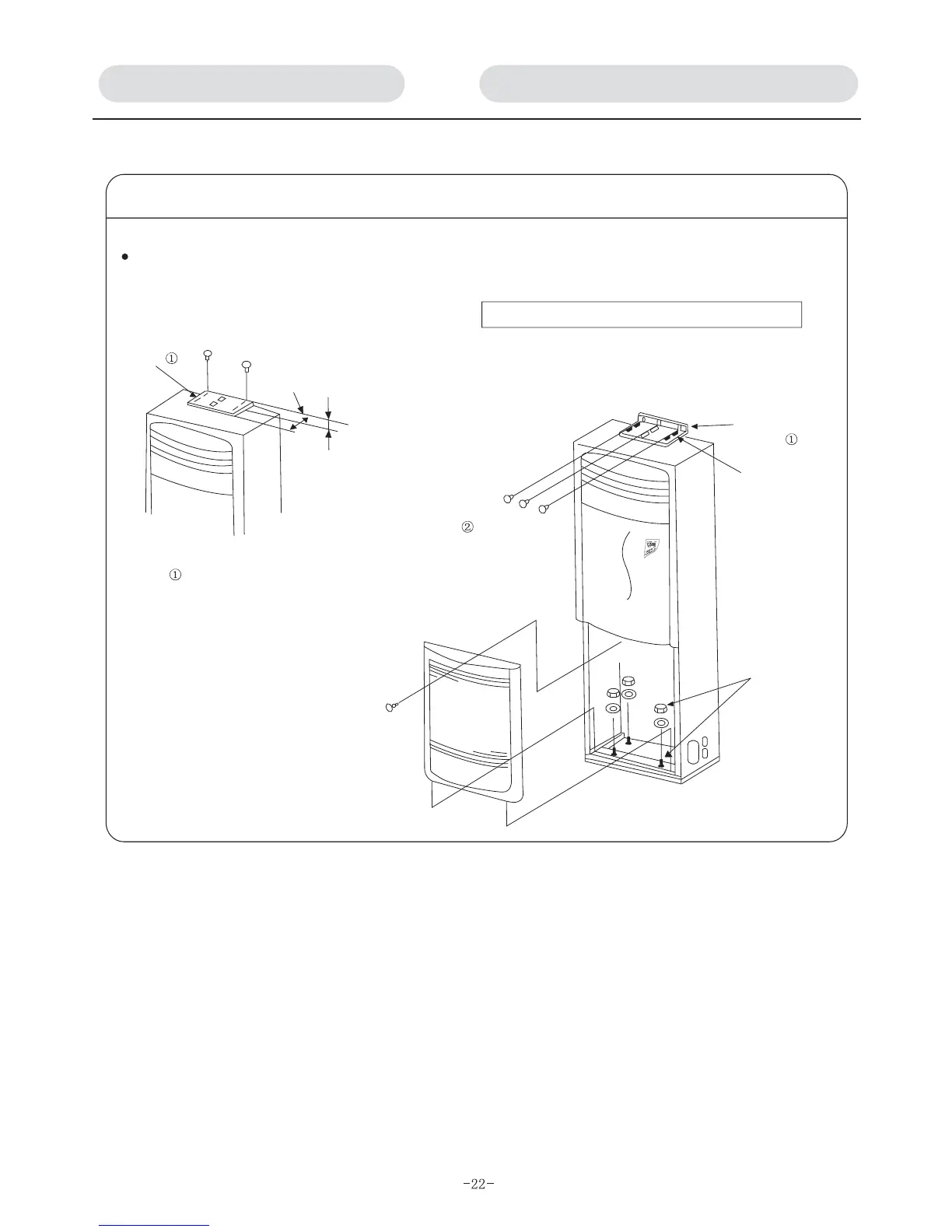

1.Measures preventing dumping
"Wall mounting iron piece against dumping is necessary to prevent dumping"
As the unit is slim and tall, for safe caution, please proceed immediately measures preventing dumping
after installation location for the unit is confirmed.
Wall mounting iron piece against
dumping is set on top of the unit. Loose
tap bolt (2), and remove, please reverse the
frontback of iron piece preventing dumping,
aligning one side with adaptable
dimensions to wall surface and proceeding
mounting on the other side.
tap bolt
long side
short side
Wall mounting iron
piece against
dumping
When wall and floor are not made by materials except for
wooden plates, please use M8X60 expansion bolt to
proceed appropriate mounting.
Wall mounting iron
piece preventing
dumping
Tap bolt 4.2X9.5
To secure with
removed tap
bolts (2)
Screw...... 1
Prepare expansion
bolts locally and
secure at 4 places.
Please dismantle screw (1),
pull the grid to your own
direction and take it out.
To Next Page
