Clamp preventing
dumping for wall
mounting
Cordon
Tap bolt
Spacing about
1mm
Wall decoration material
Install clamp on the wall in
advance. Tighten bolts as
stated in above figure and
keep clamp able to slide
up or down.
3.Floor mounting

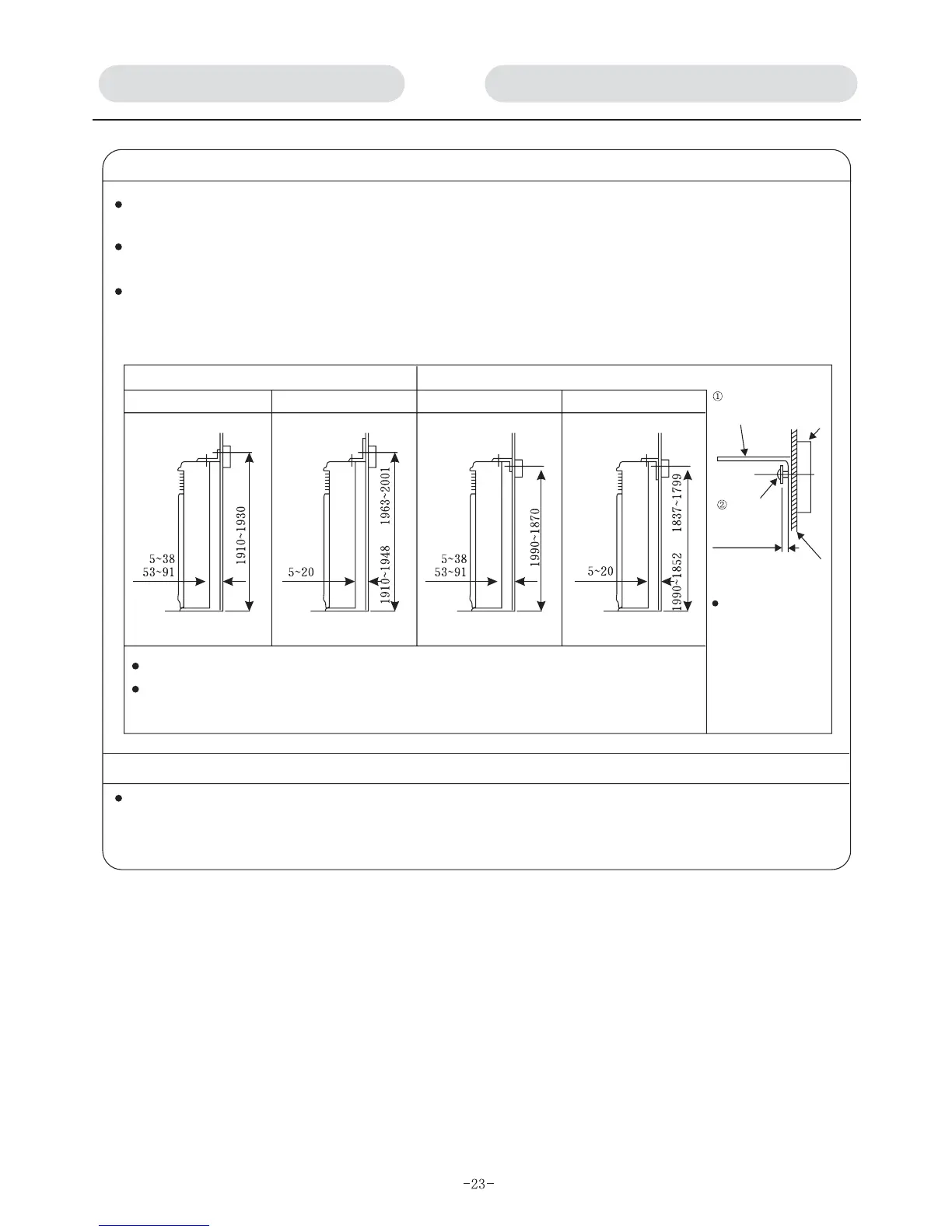

INSTALLATION MANUAL 3.2 Indoor Unit Installation
2.Setting clamp preventing dumping for wall mounting
According to the location of cordon in the wall ( height calculated from the floor ), select suitable method
from the following figures.
Cordons are not applicable when wall is floored with light steel base, please mount the clamp on
supporting or one of pillars. (Please purchase materials like bolts for application here locally).
When installing air outlet tube on the ceiling of the unit, please do not cap the clamp on the ceiling outlet
on the unit and bolt hole for installation of air outlet tube. ( e.g., keep long side of clamp directed to wall
lateral, which will not produce any capping conditions).
Clamp upwards Clamp downwards
Short side toward wall Long side toward wall Short side toward wall Long side toward wall
Unit: mm Unit: mm Unit: mm Unit: mm
Dimensions between the unit and wall indicate adjustable dimensions.
Upper dimensions calculated from the floor indicate the location for clamp to install
bolts (center cordon is within the range where the screws are installed.)
Remove inlet grid, set the drilling hole on the floor base to fasten ceiling holes, and secure
on the floor with expansion bolts.
(Please purchase the required accessory such as screw, etc. locally).
