Maximum 25
INSTALLATION MANUAL 4.2 Outdoor Unit Installation
Try your best to deliver the unit in original package to the installation location.
Please be care not to overturn the unit when lifting up the unit with sling, as the gravity of the unit is
not in the center.
When moving, the unit is not to be inclined over 45 degree. (Do not store the unit horizontally).

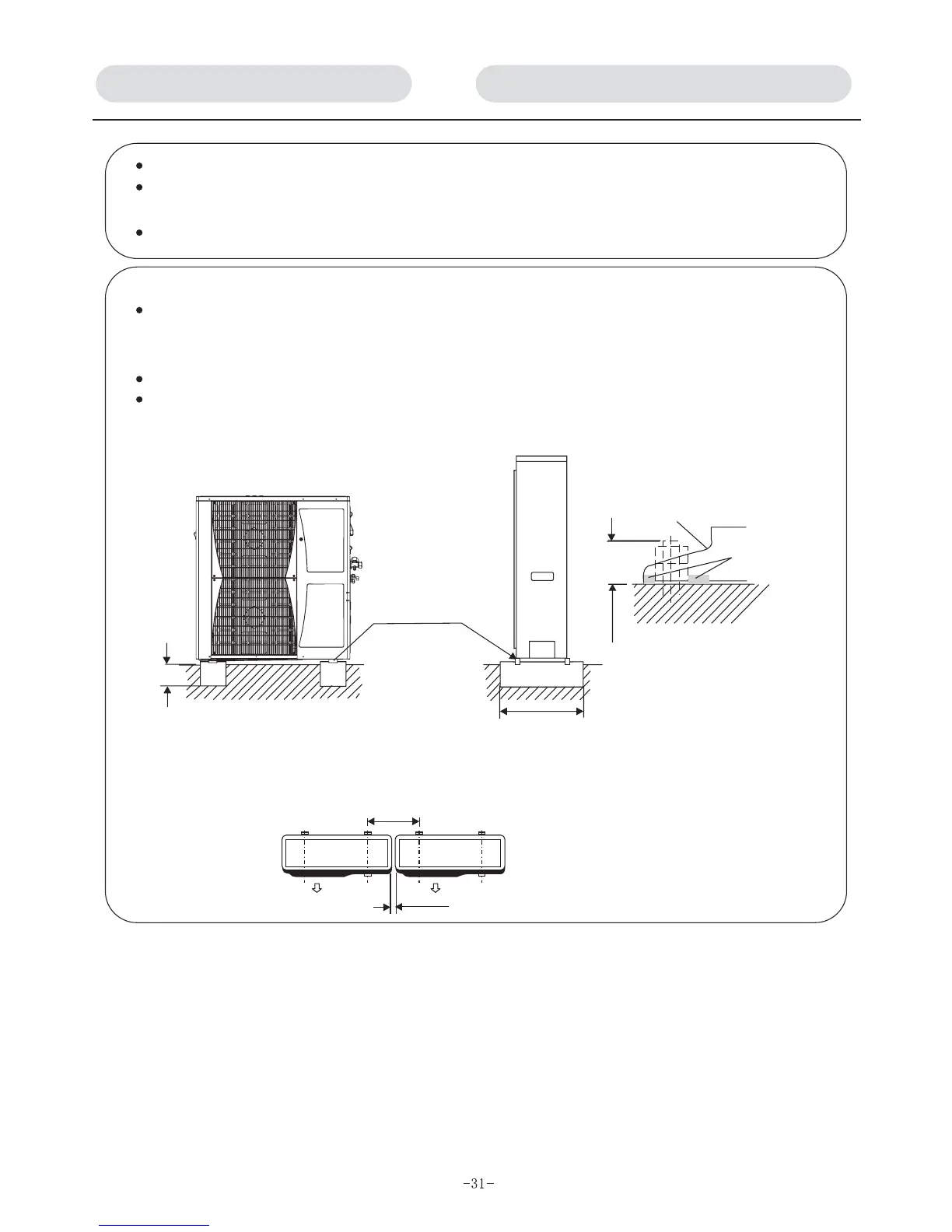

Outdoor Unit Mounting
Bolts should be applied when installing outdoor unit to secure the foundation part of the unit.
Before securing, the shock absorption block rubber accompanying the unit must be placed between the
sole and the installation plane (Foundation bolts for securing are purchased locally).
In order not to collapse in case of earthquake or strong wind, it is necessary to secure the installation.
Please refer to the following figure for concrete foundation.
Deeply
buried
location
Distances between units when set in parallel.
M10 bolt
Secure with bolts
Minimum 380
A little wider
Note: Measured from bottom lateral
installation cardinal plane,
a maximum 25mm Shall be kept
for the length of foundation bolts
Length of foundation bolts
Installation cardinal
plane
(Mm)
With
Minimum 10
To Next Page
