Min. 150
Min. 10
Min.
300
Min. 1000
Min. 300
Min.
500

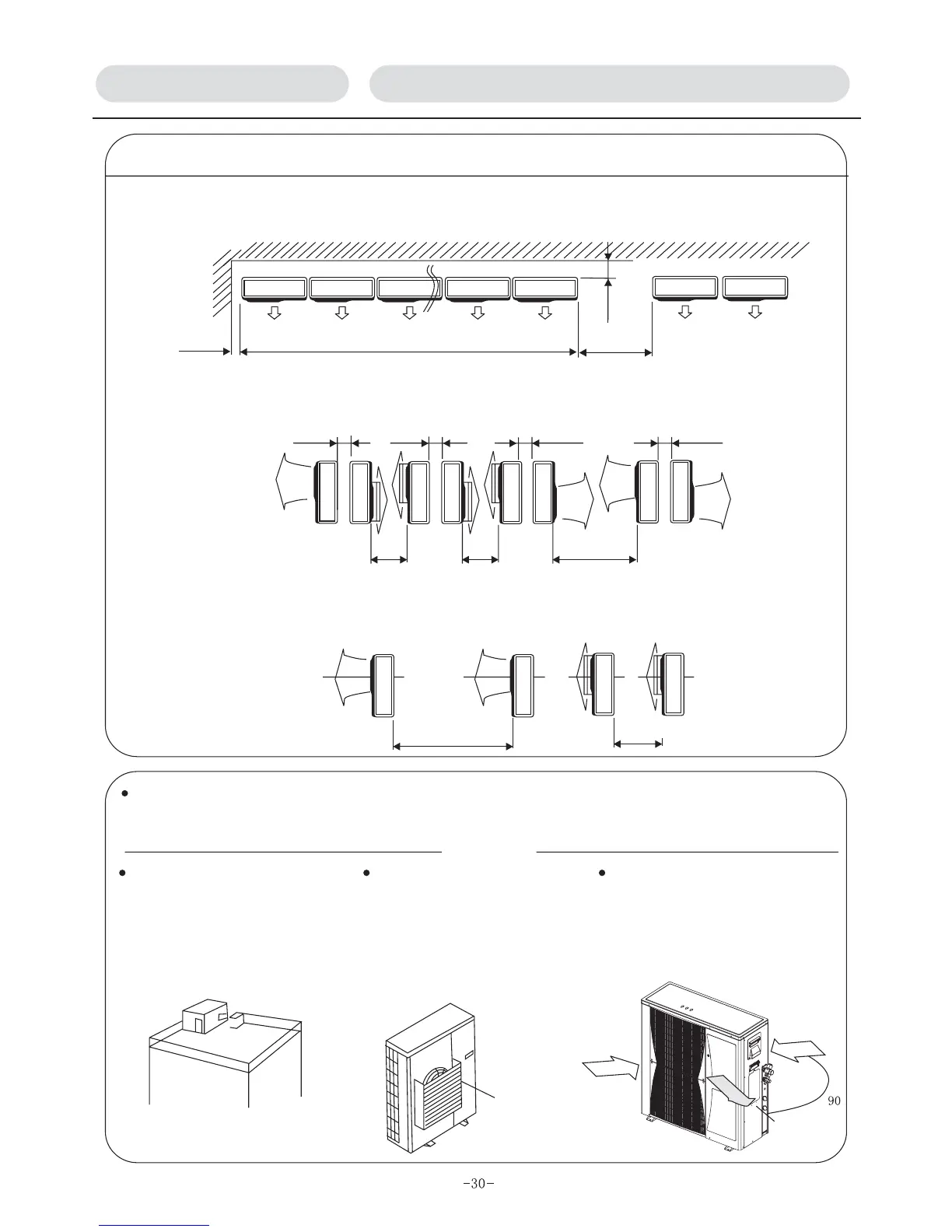

2.Interrelations when installing more than one unit at one place
(1) When in horizontal continuous centralized Installation
Please dismantle bolts on lateral protection cover of tubing.
Maximum 10 units
Upper space opens up
(2) Front-to-Back Configuration
Used only when ventilation
guide unit on outdoor unit is
set to be "ventilation upwards"
means.
When outdoor ventilation
guide unit is not in use.
When outdoor ventilation guide unit is not in use.
When outdoor ventilation guide unit is in use.
3800 1500 (mm)
Min. Min.
When outdoor unit will be installed on the housetop or a place without any shelters around, avoid strong
wind blowing directly to air outlet on outdoor unit. If strong wind directly blows to air outlet, it may result
in insufficient airflow and possibly cause problems.
Example
Monsoon
Monsoon
Ventilation guide unit
Air outlet
INSTALLATION MANUAL 4.1 Selecting Installation Location for Outdoor Unit
Min. 300 Min. 300 Min. 300
Min.
500
Min. 1500
When there is wall nearby, air
outlet should be directed to the
wall with minimum 500mm
away from the wall.
Ventilation guide unit (optional)
should be installed when air
outlet may be affected by
strong wind like typhoon.
When the outdoor unit operates
in monsoon season, please
change location of the outdoor
unit so that the air outlet should
be in right angle with air direction
of monsoon.
To Next Page
