Min. 150
Min.
10
Min. 10 Min. 10
Min. 500
Min. 500
Min. 3800
Min. 150
Min. 300

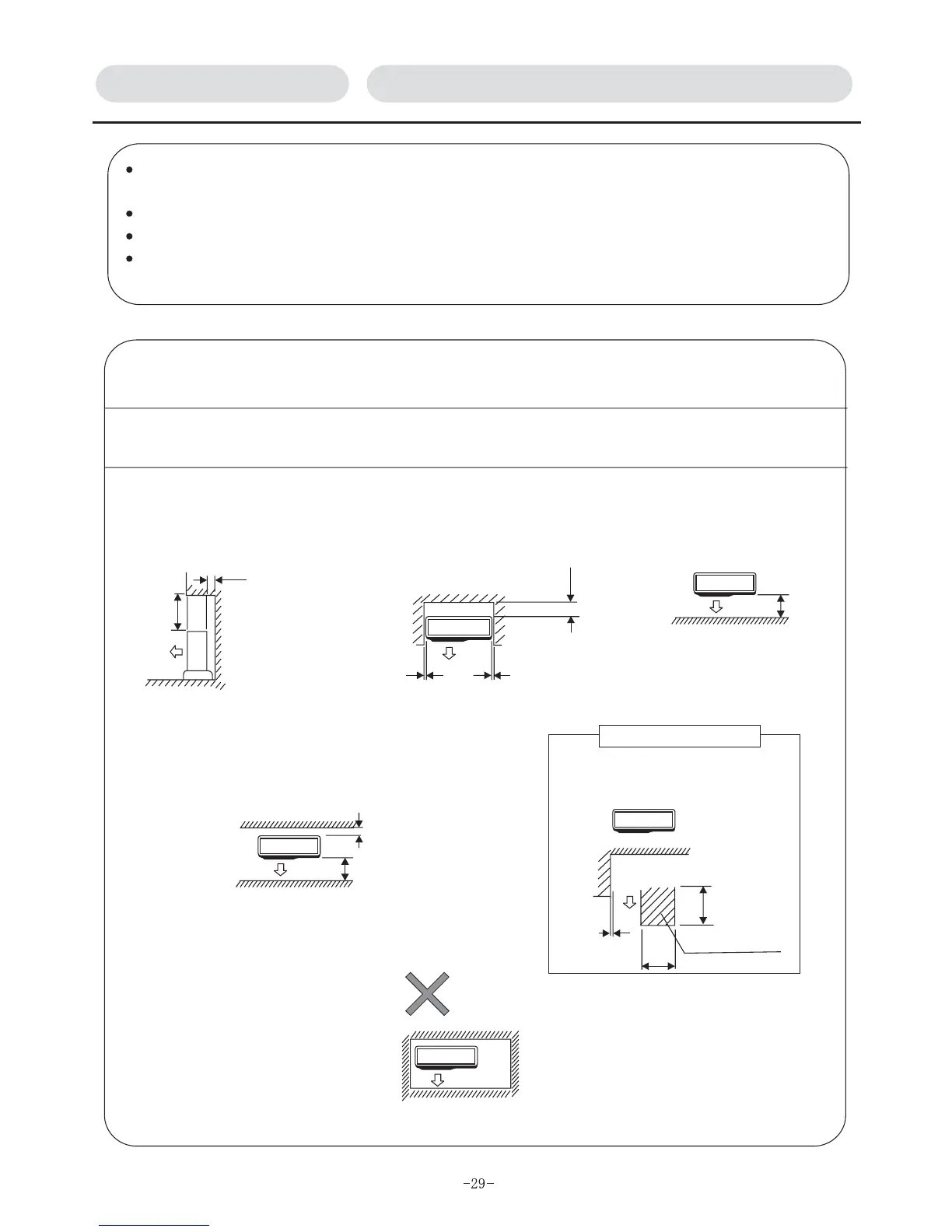

INSTALLATION MANUAL 4.1 Selecting Installation Location for Outdoor Unit
Avoid directing sunlight.
When sunlight is inevitable, please install shelter from sun to prevent direct sunlight.
Noises from the unit will not influence neighbors.
Location easier for interconnecting power and tubing with indoor unit.
Installation should not be located at a place that flammable gas may be produced, flow in, stop and leak.
When in operation, please pay attention to the high temperature air drained out from the unit.
DETAILED DISTANCES OF SURROUNDING SPACES NECESSARY
FOR OUTDOOR UNIT
1.Detailed distances of surrounding spaces necessary for separate
setup
4) When obstructions at front and backside.
5) When there are obstructions at four lateral
sides, upper side opens up. The unit cannot
be installed when obstructions exist at four
lateral sides.
1) Upper obstruction
When obstruction only exists at back, it
does not matter even if there are
obstructions indicated as figure.
2) When front (air outlet) opens
As long as the spaces indicated as figure are
kept, it does not matter even if obstructions
exist at three lateral sides. (Upper is open)
3) Obstruction only at front (air outlet)
By then, backside, two lateral sides and
upper side should be kept open.
Maintenance Spaces
Keep maintenance space in the
front of the unit stated as the
following figure.
Min
500
Min. 500
