1.For the Unit with Cooling Only
2.Interconnecting Cable between Indoor and Outdoor Unit

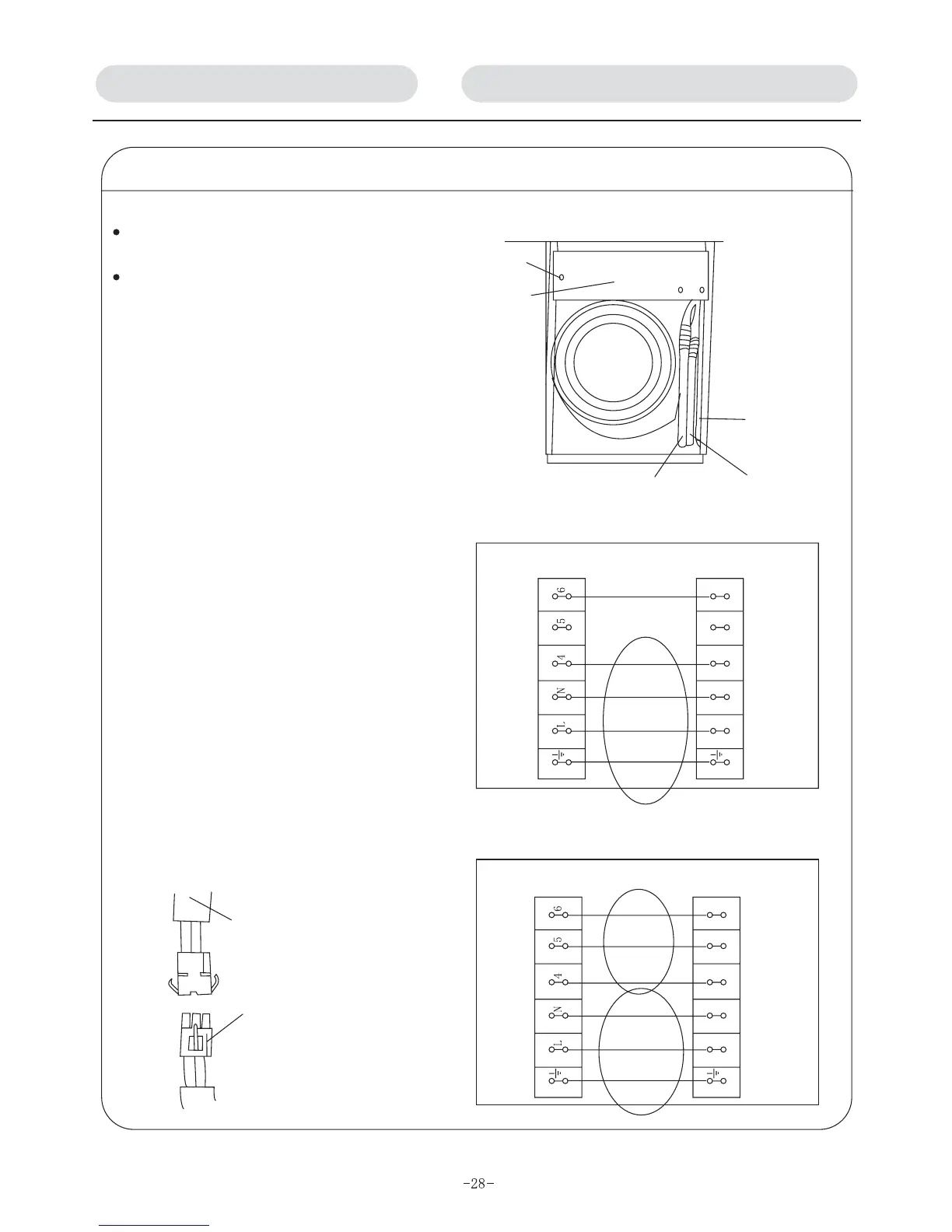

Wiring Method of Indoor Unit
Dismantle bolts on electrical case cover and
display electrical case cover.
Interconnect wires as per figure below and
secure with fixation clamp.
Bolts
Electrical case cover
Comb
Liquid tube
Suction tube
Wiring Line on Indoor Unit Wiring Line on Outdoor Unit
Brown
Blue
Red
Yellow/Green
2.For the heat pump unit ( power line and
signal line connection must be proceeded.)
Defrost signal connection line
of indoor unit
Signal connection line
Defrost cable from Outdoor Unit
Wiring Line on Indoor Unit Wiring Line on Outdoor Unit
Black
Violet
Brown
Blue
Red
Yellow/Green
INSTALLATION MANUAL 3.5Electrical Cable Connections
R/V O/F
Comp
NL
Black
R/V O/F
Comp
NL
To Next Page
