Electrolux T5675 N2 - Page 48

48
Service Manual

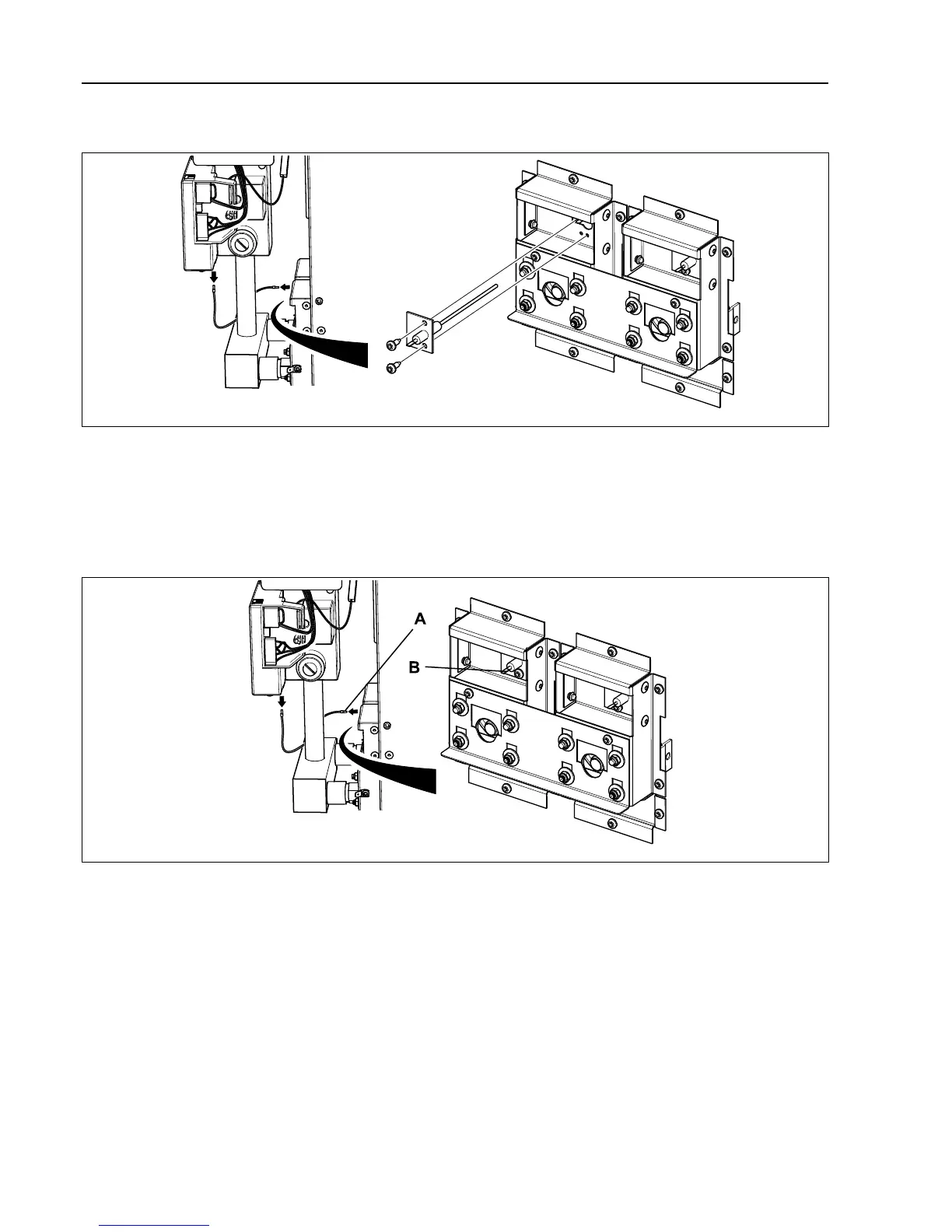

Disconnect the wire to the flame sensor.
Demount the flame sensor.
fig.7270
Mount the new flame sensor.
Control measuring the ionization current
Disconnect the wire to the flame sensor.
Measure the current between the quick connector (A) and the ionization connector (B). The current must be at least
0.9 µA DC.
fig.7271
