Electrolux T5675 N2 - Replacement of Damper Motor

54
Service Manual
10.2 Replacement of damper motor
Disconnect the power to the machine.

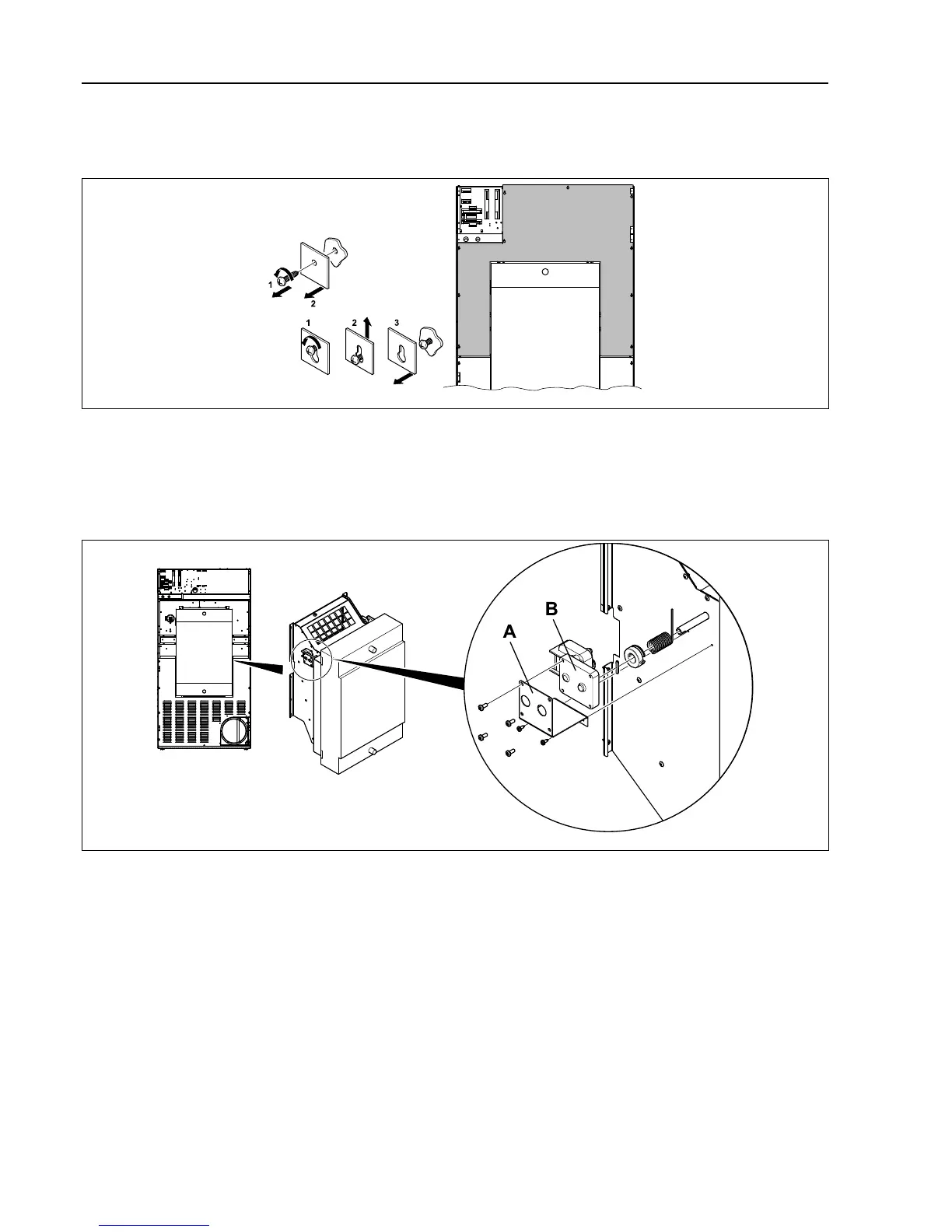

Demount the upper rear panel.
fig.7248D
Demount the bracket (A) from the machine and demount the damper motor (B) from the bracket.
Mount the new damper motor on the bracket and then remount the bracket on the machine.
Note!
If both of the damper motors is to be replaced. Make sure to mount the correct motor on each side. The rota-
tion of the motors is different and if the motors are mounted on the wrong side they will not work properly.
fig.7249B
Remount the upper rear panel.
