Electrolux T5675 N2 - 3 Replacement of Control System CPU

82
Service Manual
12.1.3 Replacement of control system CPU
Disconnect the power to the machine.

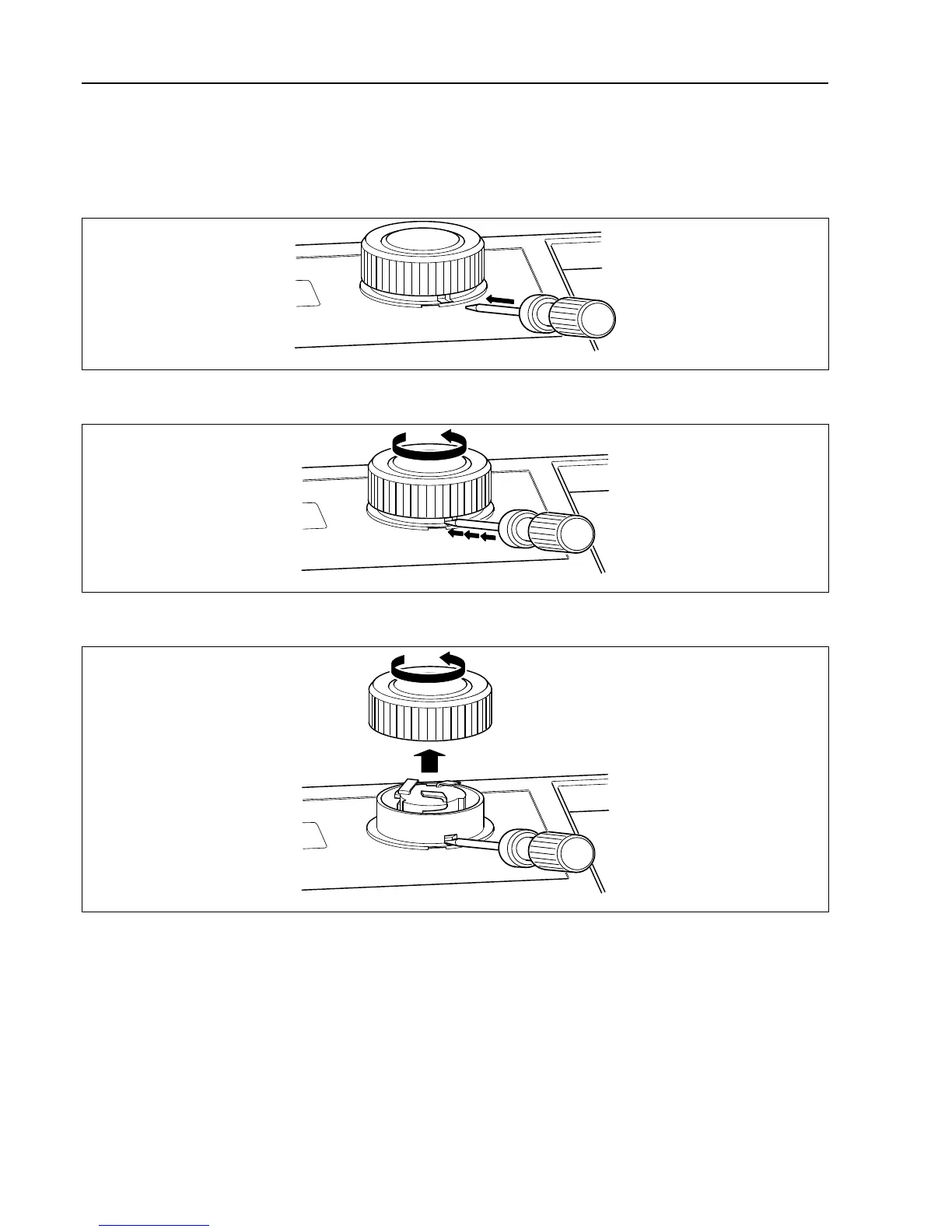

Demount the control knob
Insert a screwdriver in the upper hole.
fig.7491
Gently push the screwdriver inwards and turn the control knob counter-clockwise until the screwdriver goes further in.
fig.7492
Continue turning a quarter of a turn until it is possible to remove the control knob.
fig.7493
Demount the cover ring
When the control knob is removed, insert the screwdriver in the lower hole and press gently. Turn the cover ring
counter-clockwise until it is possible to remove the cover ring.
