Service Manual
12 Control panel
12.1 Control system
12.1.1 Description
The control system CPU is electronic and comprises a circuit board containing microprocessor, program memory, se-
rial interface to the motor, I/O-boards etc.
The control system CPU receives its power from a separate power supply unit.

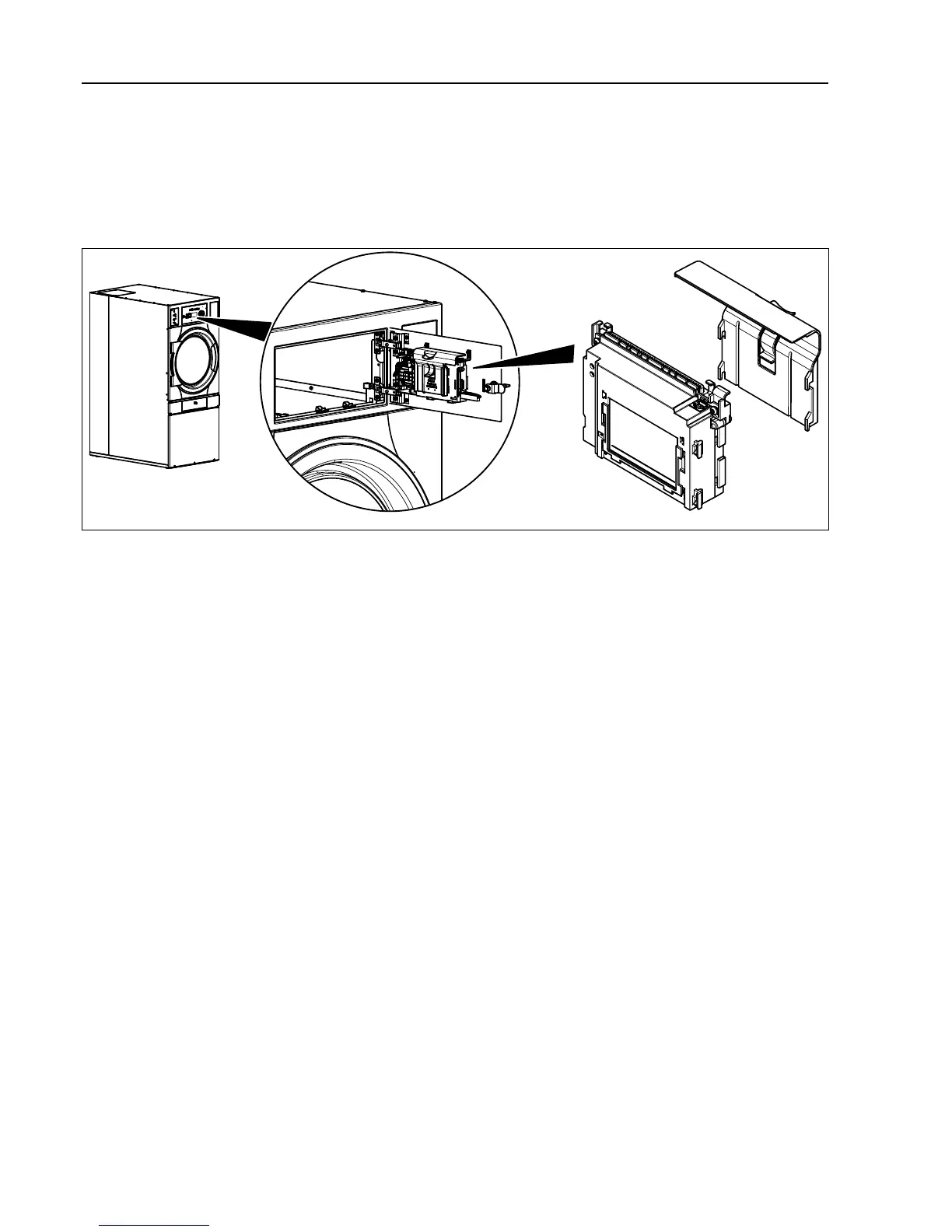

fig.7356
The control system receives information about inputs like temperature sensors, RMC, vacuum, door status etc, and
activates outputs like drum, fan and heat control.
