Electrolux T5675 N2 - Page 76

76
Service Manual

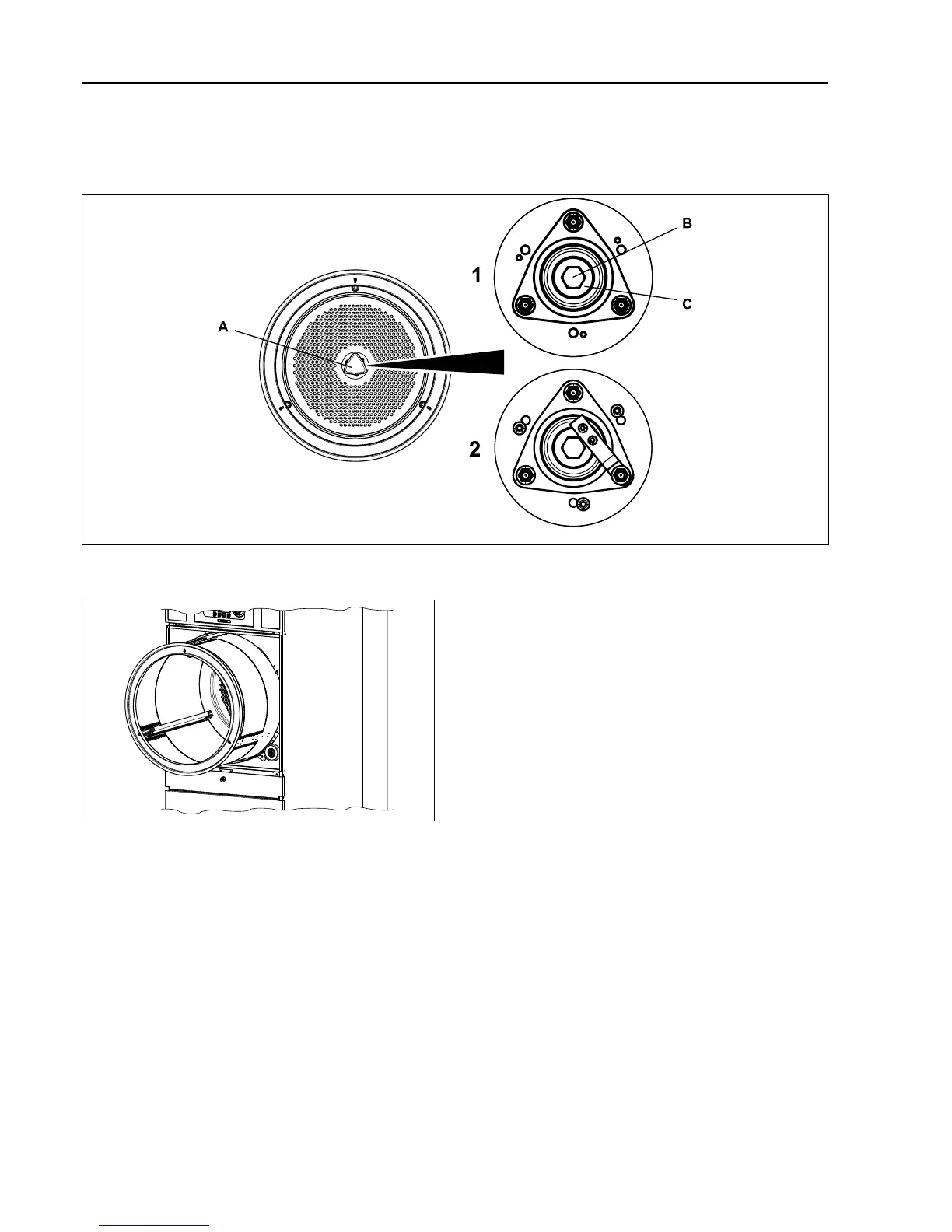

Remove the screws and the bearing house (A).
1. Shows a machine without RMC. Remove the bolt (B) and the washer (C).
2. Shows a machine with RMC. Loosen the screw and pull the RMC flange to the side in order to remove the bolt
(B) and the washer (C).
fig.7231A
Carefully lift out the drum. Be careful not to damage the belt.
