3.12 Connect the EDC Harness to Power and Ground:
Route the power wire (Top Connector, pin 37, Red Wire) to the MVP/EDC 5-amp Circuit Breaker. Route the ground
wire (Top Connector, pin 19, Black Wire) to the aircraft ground.

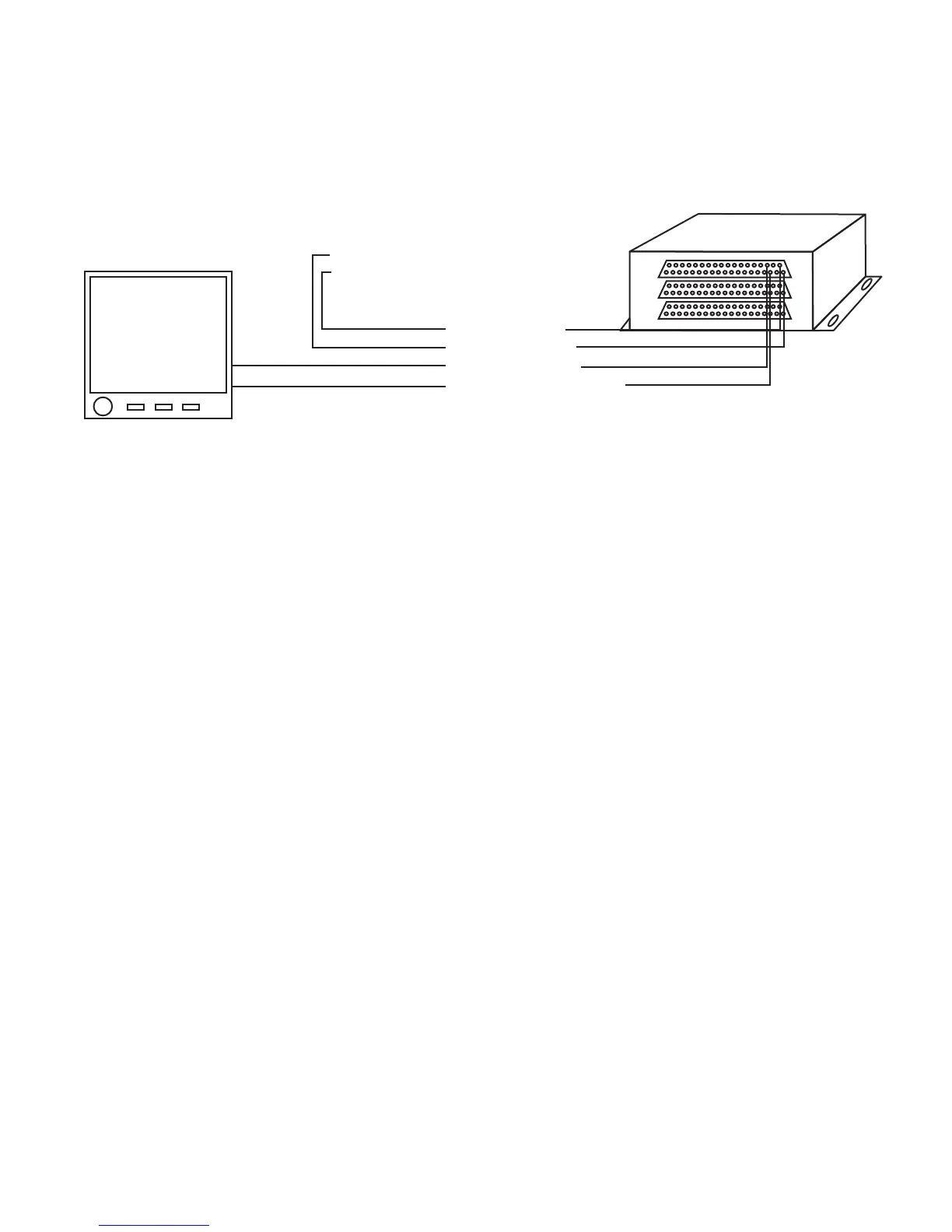

3.13 Route the EDC RS422 Wires to the MVP Connector:
Route the RS422 - (white/green wire) and the RS422+ (white wire) to the MVP connector. These wires will be
connected to the MVP RS422 wires in a later step. If a second EDC is installed, see the appendix for connection
information.
MVP RS422+ (pin 12)
MVP RS422- (pin 13)
Pin 37, Red Wire
Pin 19 Black Wire
Pin 36, White Wire
Pin 18, White/Green Wire
MVP
RS422 Input
To Aircraft Ground
To the MVP/EDC 5-amp Circuit
Breaker
Top Connector
Top
EDC-33T
29
