Machine Setup & Installation

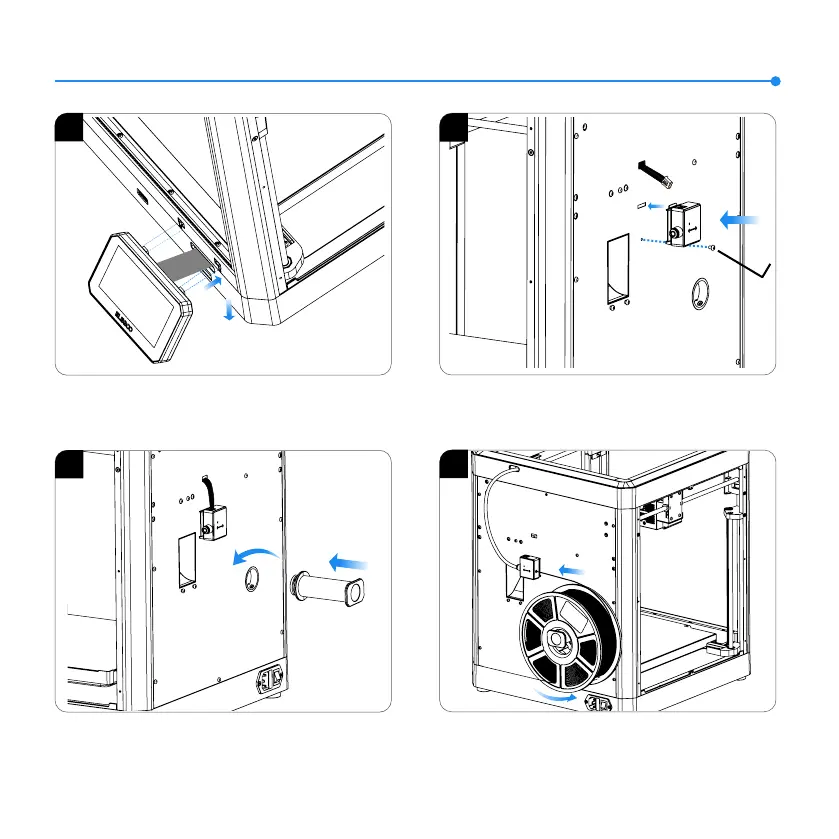

4. Install the screen into the corresponding slot on the printer
and push it down to lock it in place.
5. Secure the lament detector to the back panel of the machine
using the screws provided in the accesso kit.
6. Install the spool holder by aligning it with the hole on the back
panel, and tighten it by turning counterclockwise.
8
5
4
6
7. Load the filament by inserting one end into the filament detector
and pushing it forward until it reaches its maximum position.
7
Important note: If you have disassembled machine components such as the nozzle assembly or build platform, make
sure to re-level the platform before printing.
