Elektro-Automatik PS 8000 DT Series Manual

41
Instruction Manual
PS 8000 DT Series
EN
Date: 04-22-2011
Operating the device

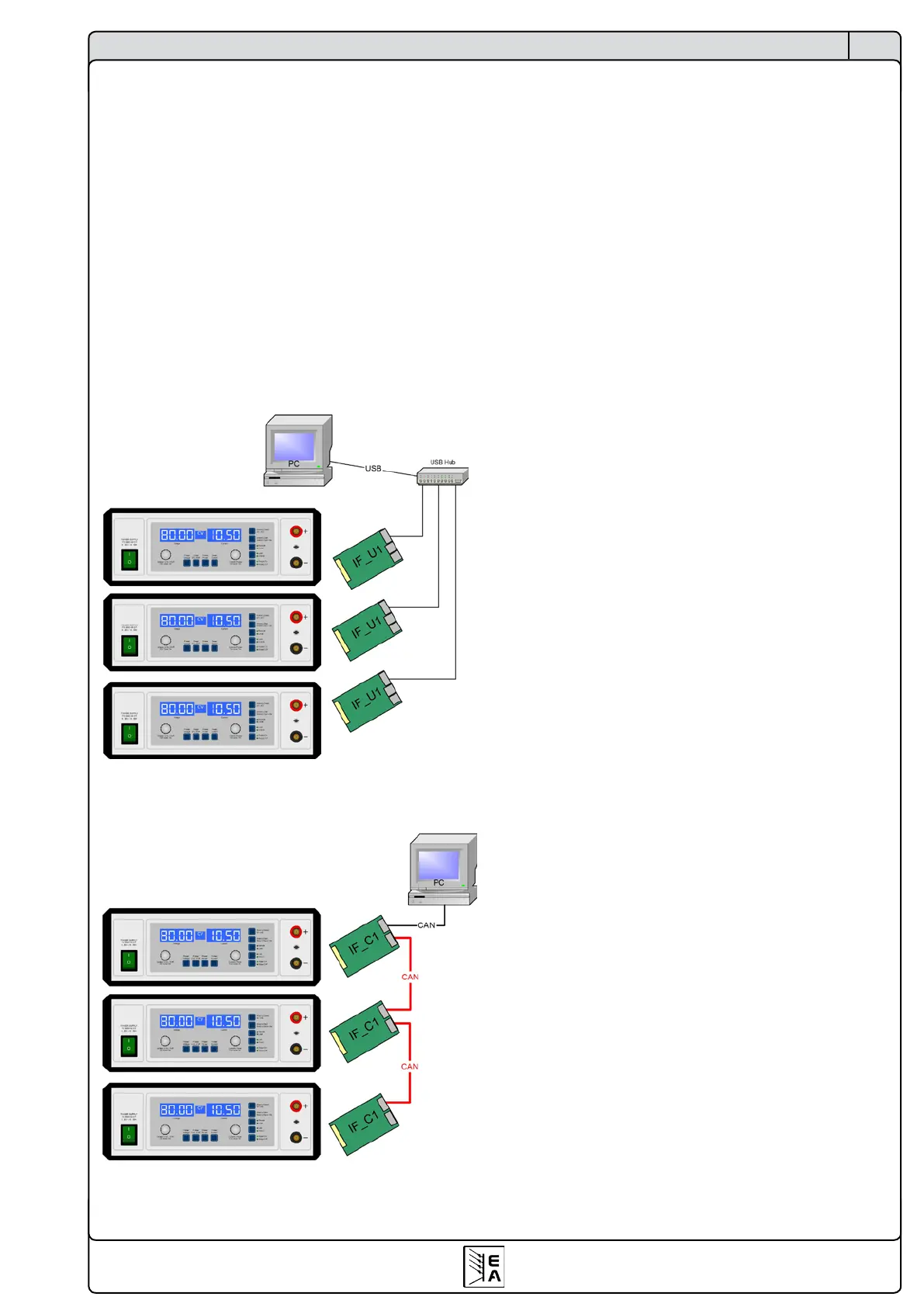

Figure 11. CAN networking example, also applies to GPIB
Figure 10. USB or RS232 networking
11.4 Networking
The gures below depict networking examples for the digital
control of multiple devices in star-shaped (USB, RS232) or
bus-like (CAN, GPIB) conguration.
Limitations and technical specications of the bus systems and
the interfaces apply.
With USB up to 30 units can be controlled with one PC, ap-
propriate USB hubs with custom power supply assumed.This
basically applies to RS232, too. Differences lie in the handling
and the cable lengths.
With CAN up to 30 power supplies per address segment can
be integrated into a new or existing CAN bus system. They
are addressed by the device node and the RID (see “8. Device
setup”).
With GPIB there is a limitation of max. 15 units on one bus, con-
trolled by a GPIB master. Multiple GPIB masters can be installed
in a PC in order to increase the number of addressable units.
11.5 Accessoriesandoptions
Note: Details about options and accessories are avaible in
seperate user guides.
Following accessories are optionally available:
a)USB-to-AnalogueinterfaceUTA12
Galvanically isolated remote control via USB (on PC side) and
the device internal analogue interface.
b)Digitalinterfacecards
Pluggable and retrottable, digital interface cards for USB,
RS232, CAN, GPIB/IEEE (SCPI only), Probus or Ethernet/
LAN (SCPI only) are available.
Following options are available:
a)HighSpeedRamping
Increased dynamics of the output voltage by reduced output
capacity. It must be pointed out, that other output related values
also increase!
Note: this is a permanent modication which is not switchable.
11.6 Firmwareupdate
A rmware update of the device should only be done if the
device shows erroneous behaviour or if new features have
been implemented.
In order to update a device, it requires a certain digital inter-
face card, a new rmware le and a Windows software called
„Update tool“.
These interfaces are qualied to be used for a rmware update:
• IF-U1 (USB)
• IF-R1 (RS232)
• IF-E1 (Ethernet/USB)
• IF-PB1 (Probus/USB)
In case none of the above interface types is at hand, the device
can not be updated. Please contact your dealer for a solution.
The update tool and the particular rmware le for your device
are obtainable from the website of the device manufacturer, or
are mailed upod request. The update too will guide the user
through the semi-automatic update process.
