Resistance Welder MULTISPOT MI-100
Design and functionality
19
4 Design and functionality
4.1 Overview
1 Running gear
2 Support for tools or electrode
arms, for instance
3 Inverter control unit
4 Welding pliers support
5 Control panel
6 Balancer support
7 Balancer
8 Welding pliers
9 Handle
10 Welding pliers supply lines
10
8
7
6
5
3
1
2
4
9

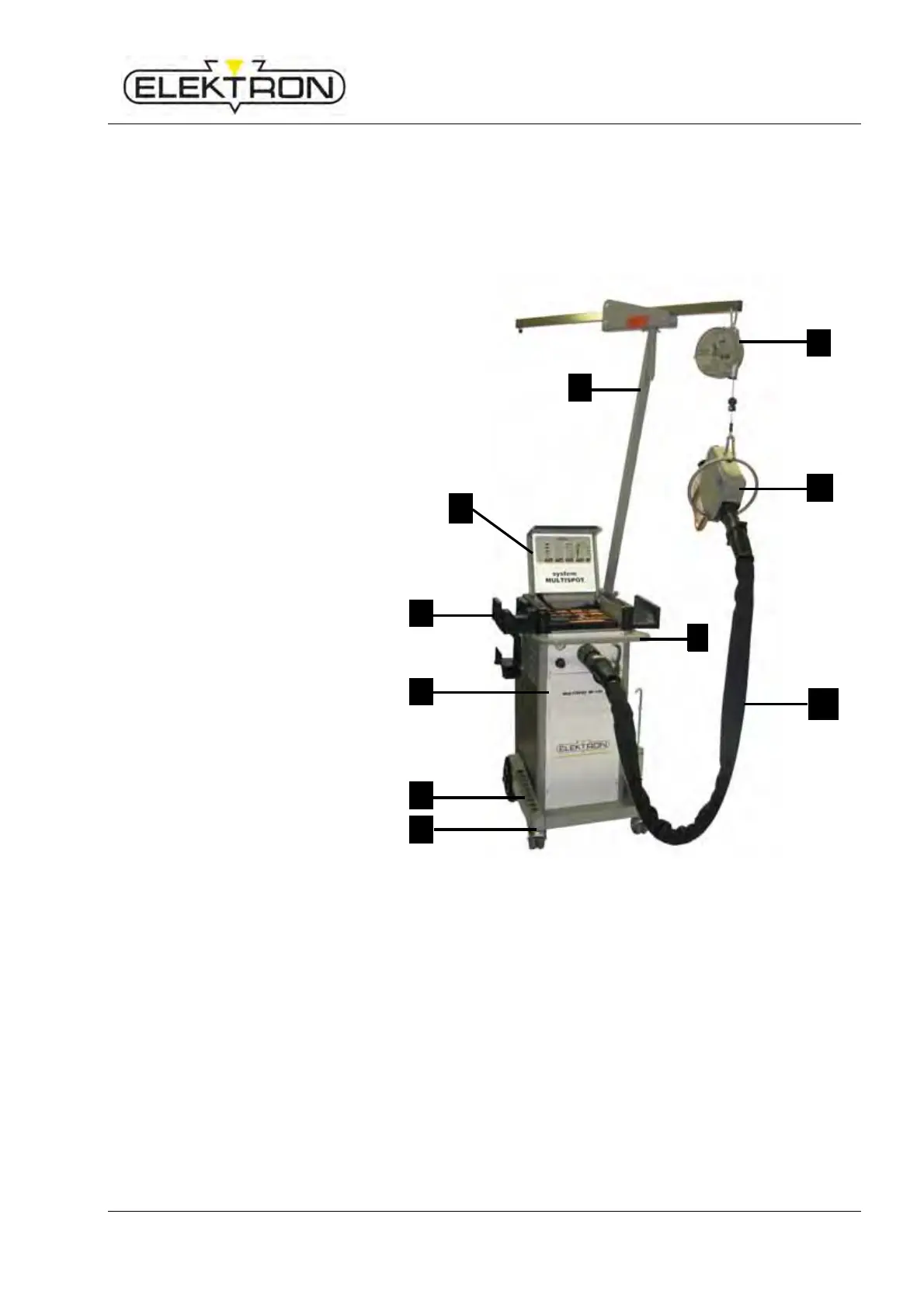

Fig. 10: Multispot system (standard)
4.2 Description
The MULTISPOT MI-100 resistance welding unit is designed for special requirements for the repair and
production of motor vehicle bodies. The inverter power source is controlled by a micro-processor. After
selecting the operating mode, the sheet steel thickness and the welding task, the current and weld time will
be assigned automatically. The current is regulated and always remains at the set level.
An audible alarm is performed if the power supply is too low.
