Resistance Welder MULTISPOT MI-100
Installation
27
5.6 Connecting the pliers

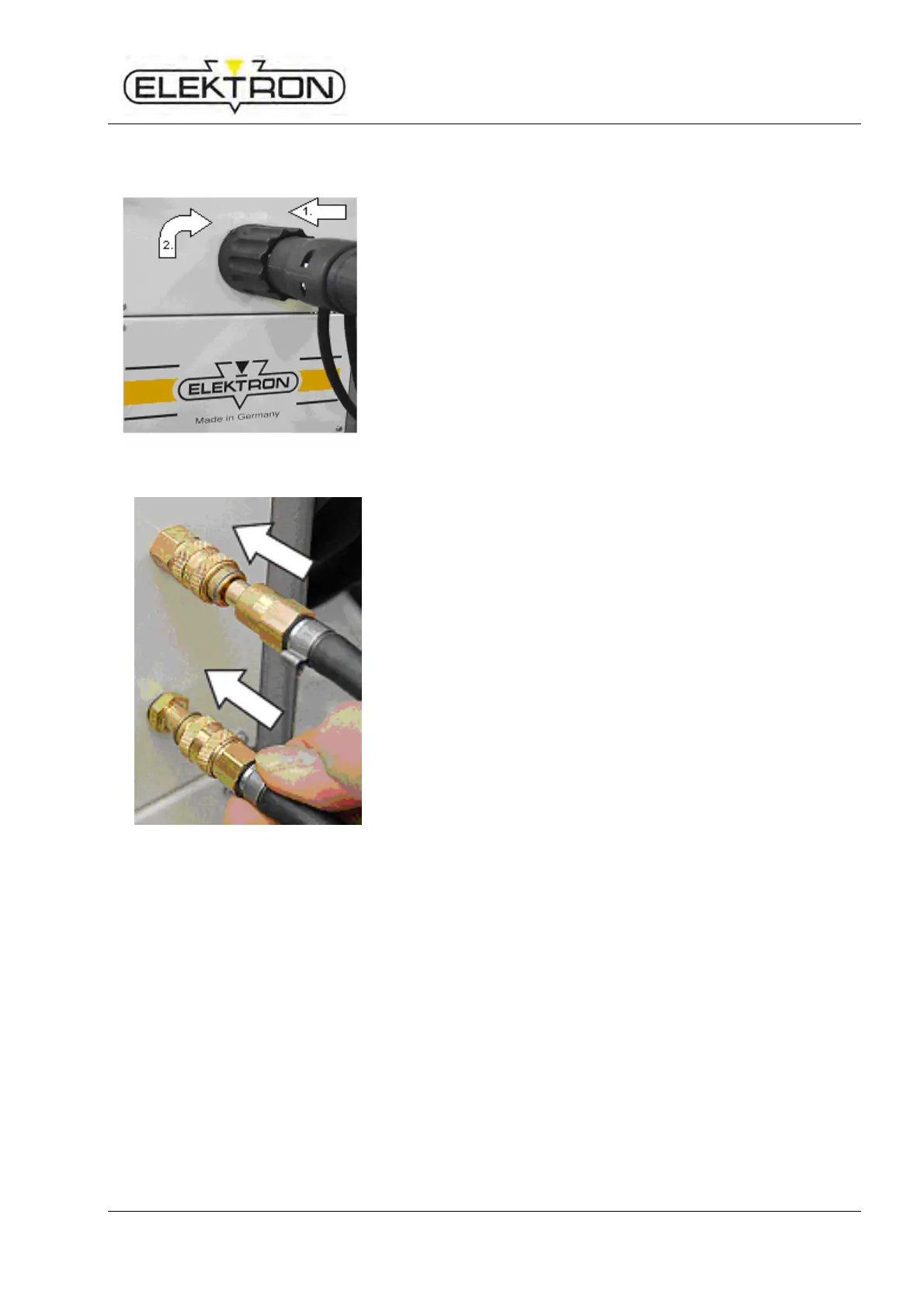

Fig.26: Connecting the pliers
1. Push the main plug of the welding pliers into the main socket of
the equipment (Fig.26/1.).
2. Turn the retainer nut clockwise (Fig.26/2.) to lock the
connection.
Fig.27: Water cooling system for the pliers
3. Connect the water cooling system of the pliers.
