Resistance Welder MULTISPOT MI-100
Specifications
49
9.5 Exposure limit values
Welding pliers
Item Compliance
Exposure limit values accor. EU
directive 2004/40/EC
Safe compliance with
distances
≥ 15 cm perpendicular to
pliers opening
Safe compliance with
distances
≥ 7 cm to welding cable

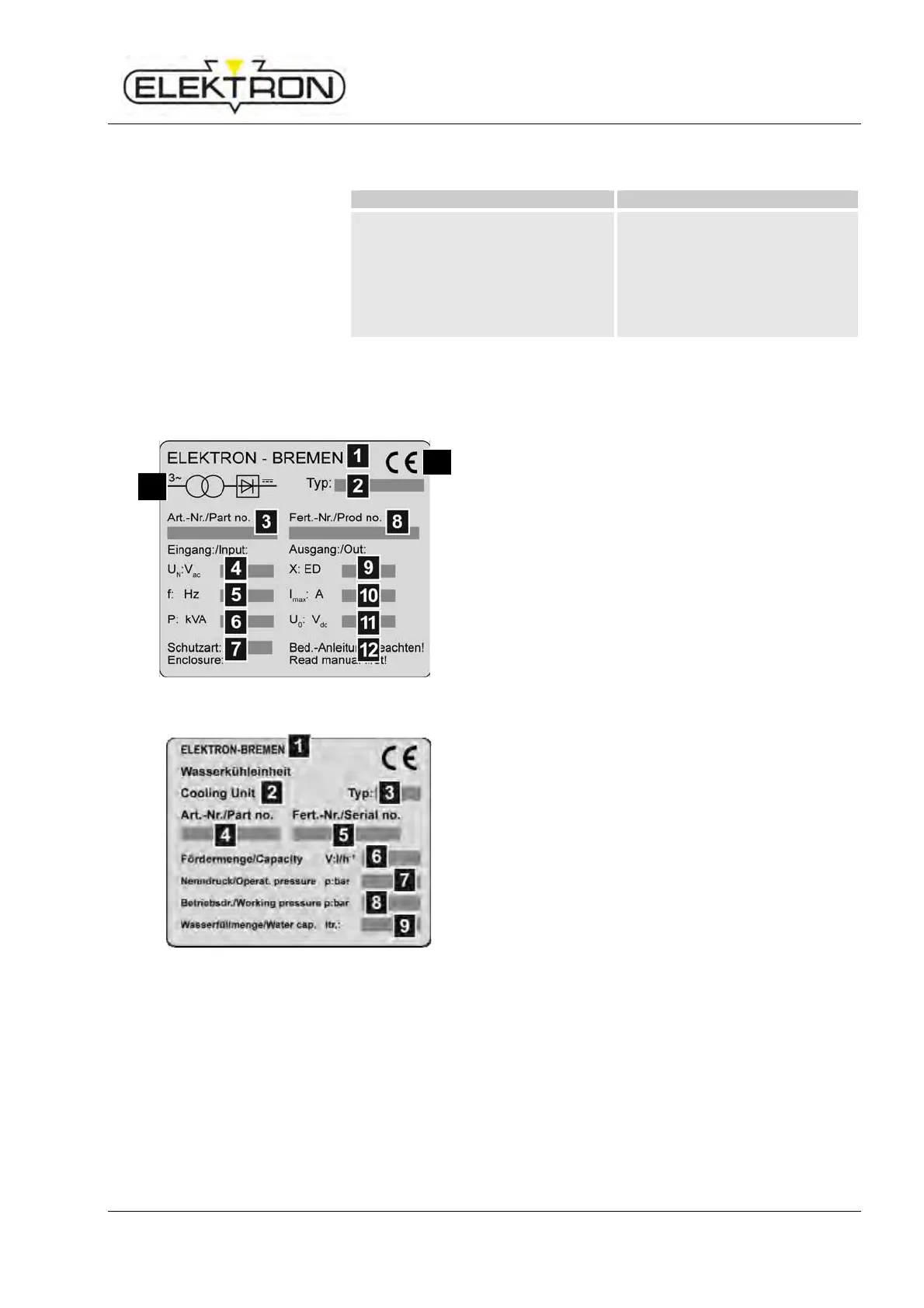

9.6 Type plates
13
14
Fig.58: Type plate on the backside
1 Manufacturer
2 Inverter type
3 Item no.
4 Input voltage (in VAC)
5 Frequency (in Hz)
6 Power consumption (in kVA)
7 Enclosure
8 Production no.
9 Duty cycle (in %)
10 Max. current (in A)
11 Output voltage (in VDC)
12 Appeal: Read operating manual. Comply with
operating manual.
13 Sign of confirmity
14 Block circuit diagram
Fig.59: Type plate on water cooling unit
1 Manufacturer
2 Designation
3 Type
4 Item no.
5 Production no.
6 Flow rate in l/h
-1
7 Rated pressure in bar
8 Operating pressure in bar
9 Volume in l
2. 5. Set sheet gauges on the wel der using above table.
