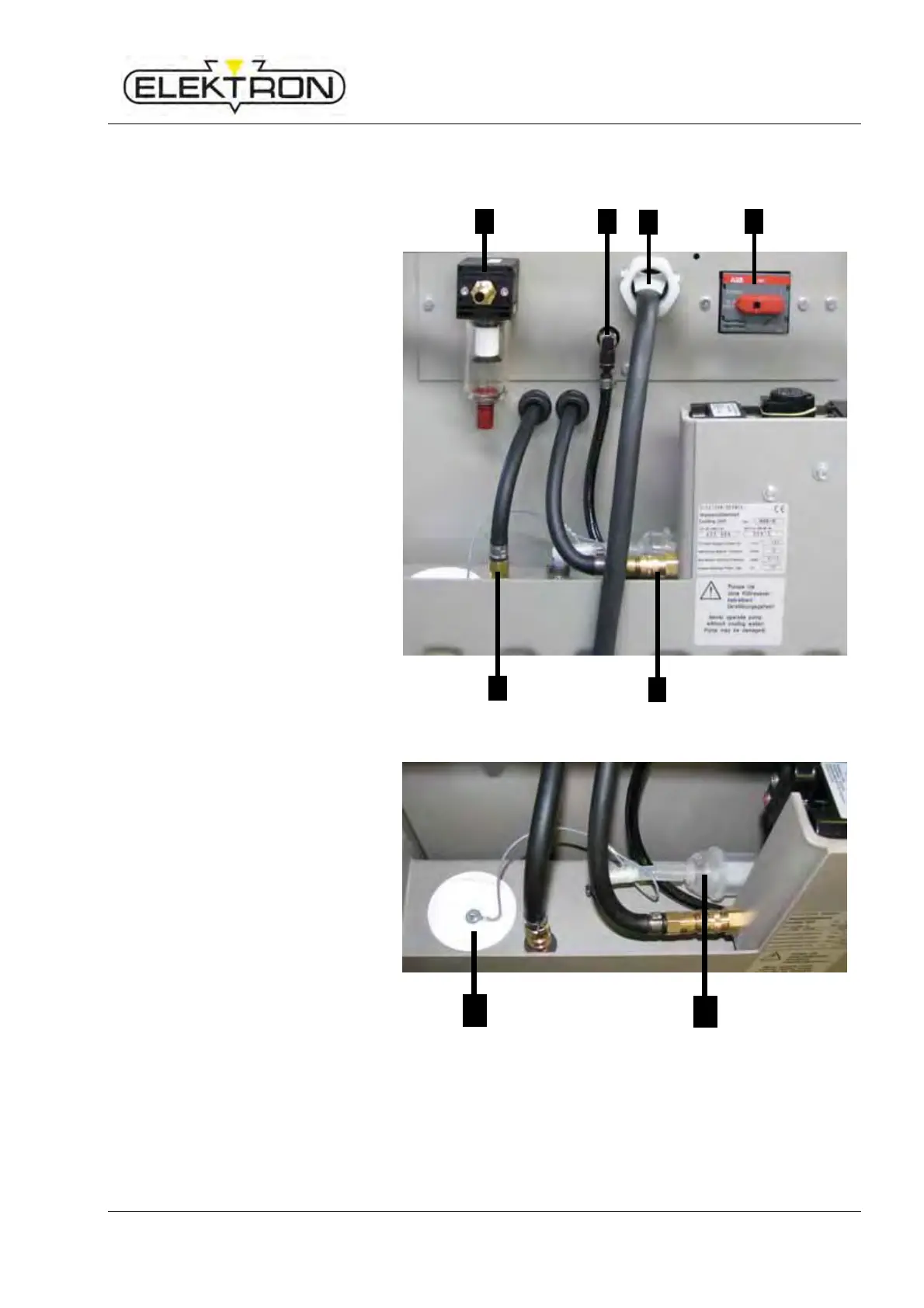

4.4.2 Connections on the backside
1 Compressed-air filter unit
2 Coolant-pump air supply
3 Power cord
4 Power switch
5 Coolant outlet towards pump
6 Coolant return
2 1 4
3
6
5
Fig. 14: Connections on the backside
7 Water filter
8 Cooling-water tank cap
8
7
Fig. 15 :Connections on the backside
