11.3. Miscellaneous interventions
Warning: For your own safety: After you have completed your maintenance
tasks, refit ALL safety guards and features. NEVER WORK WITHOUT THE
GUARDS IN PLACE!

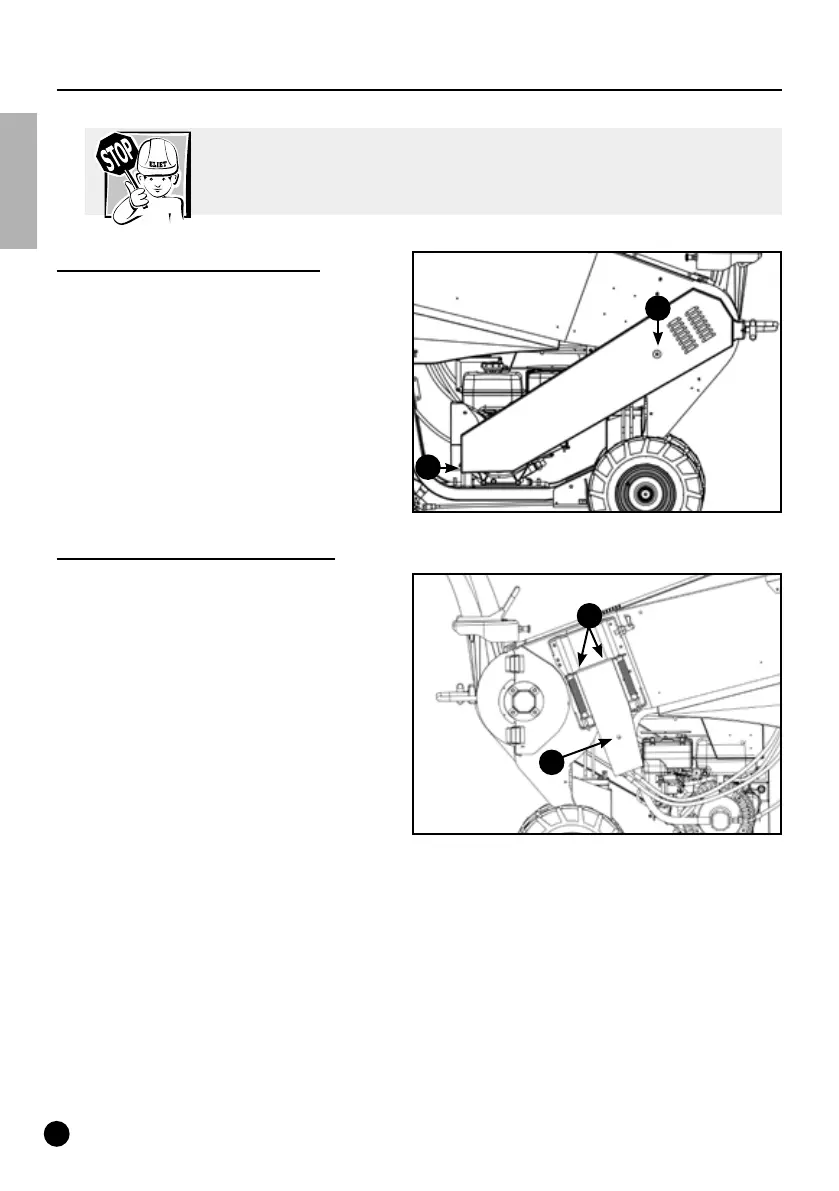

11.3.1. Removing the belt cover
• Switch off the engine and remove the
ignition key.
• Remove these 2 nuts and bolts below:
• (1) - (M 8x20) 2x 13-mm wrenches
• (2) - (M10x25) 1x 17-mm wrench
• Remove the guard.
11.3.2. Removing the chain guard
• Switch off the engine and remove the
ignition key.
• Remove the two M8x16 bolts (1).
1x 13-mm wrench
• Remove the M10x25 bolt (2).
1x 17-mm wrench
• You can now remove the guard.
1
2
2
1
