11.5.3.1. How to turn a blade
Warning:
You must wear protective gloves, since the blades are extremely sharp!
Warning: The blade system is directly exposed as soon as the shredding cham-
ber is opened. Ensure that the machine has completely stopped and remove the
key from the ignition.
• Remove the ignition key from the machine.
• Open the shredding chamber.
• No tool is necessary for opening the chamber. It has a quick and easy-to-use system for
opening and closing it.
• See “11.3.4. Opening the blade shaft compartment”, page 53.
For your information: The blades are extremely sharp. Avoid contact with the
blades and always wear appropriate protective gear, such as gloves.
• Each blade is secured with two M8 bolts. Avoid injury to hands and always use two ring wren-
ches with long handles to unscrew the bolts.
• If any of the bolts are damaged, they must be replaced immediately.
• Do not pull the blades out with your hands; use locking pliers instead.
• It is useful to put a wedge (screwdriver) between the blade discs in order to remove the blades
more easily.

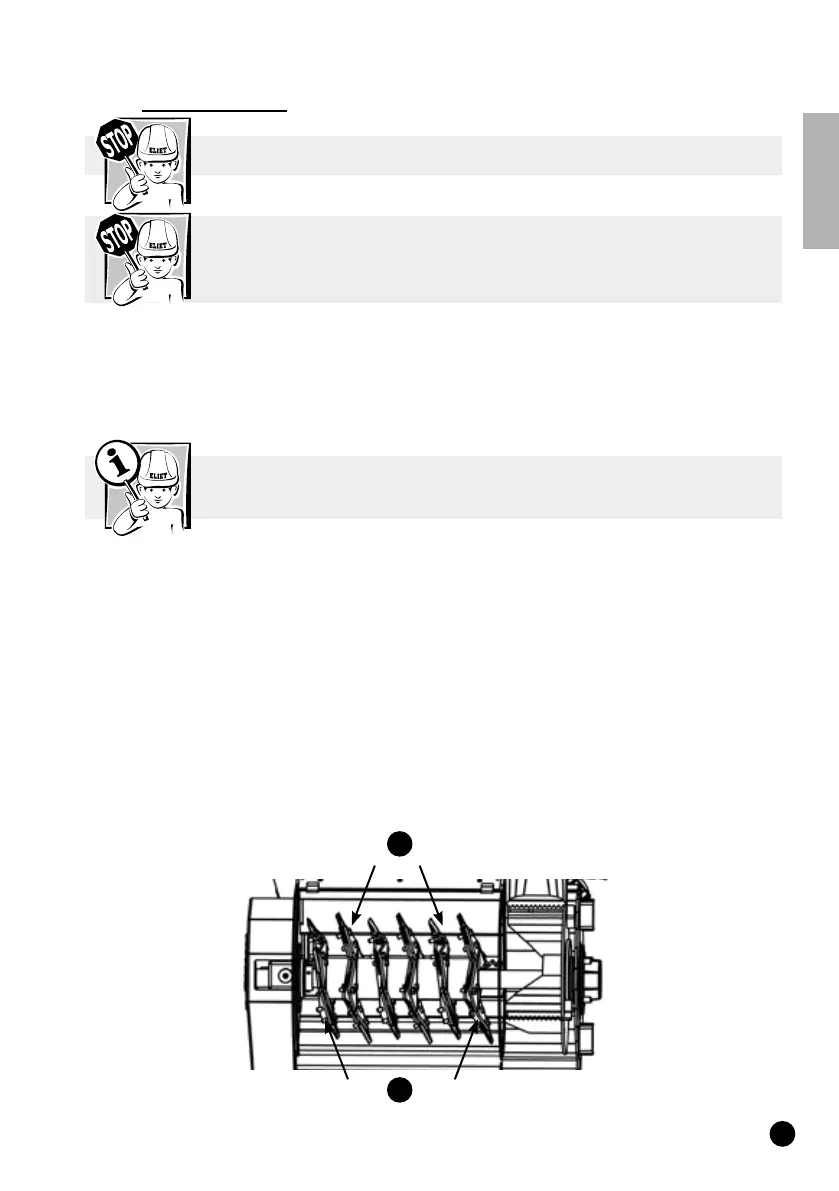

There are certain rules that must be respected for turning or replacing a blade. The blade shaft is
divided into two groups to respect the logic of these rules:
• Blade group 1: This group is made up of the two blade discs at both ends of the shaft. (G1)
• Blade group 2: This group is made up of the 4 blade discs that are enclosed between the two
exterior blade discs. (G2)
G1
G2
