Caution: The chain should not be too taut.
• When the chain tension has been properly adjusted, retighten the bolts (1 & 2) (M8, 13-mm
wrench).
• Refit the chain guard. See “11.3.2. Removing the chain guard”, page 52.
• Lubricate the chain properly. (see Section 11.5.8.15, page 75)
11.5.7. Checking and adjusting the tension of the tracks (Cross Country model)

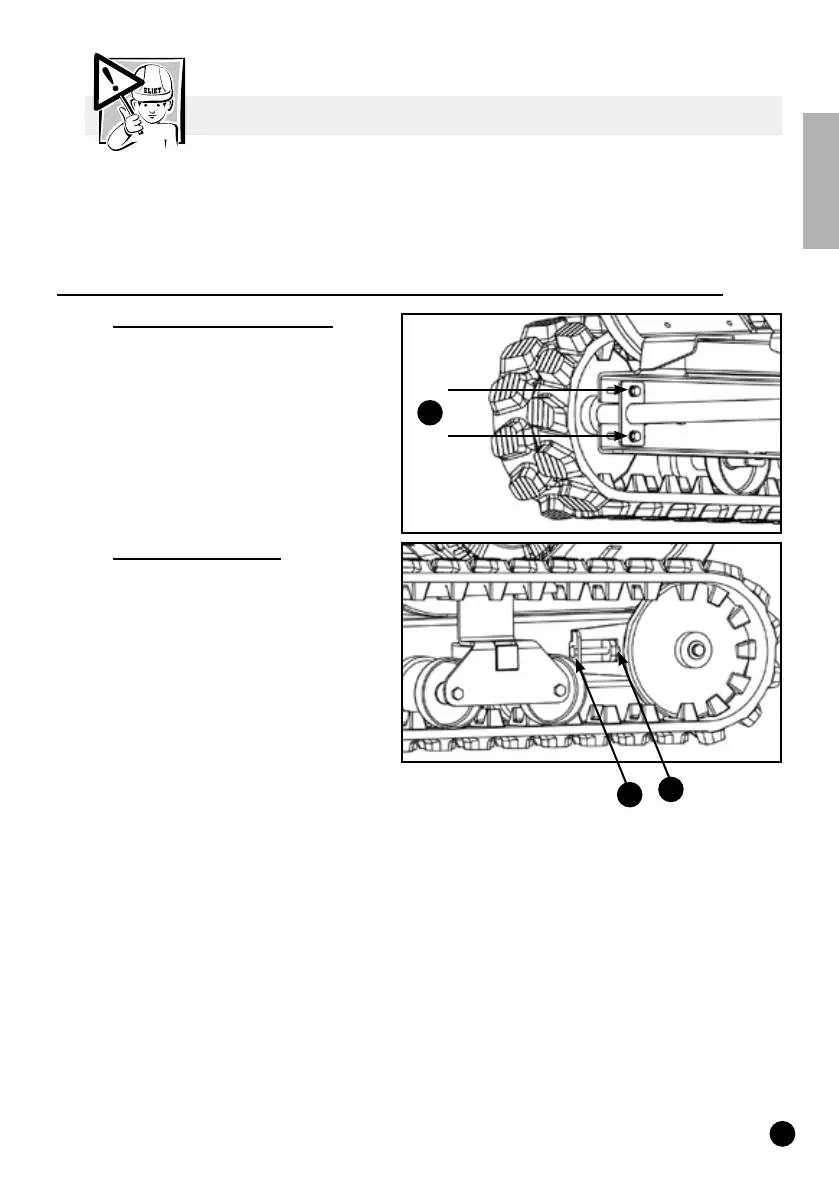

A. Checking for correct tension:
• The track is sufficiently taut if it
comes 1 cm - 1/2” off the upper guide
when it is lifted.
• If the track comes off more than 1 cm,
the tension needs to be corrected.
B. Adjusting the tension:
• Loosen the locknut (2) and the two
clamping bolts (3) (M12, 19-mm
wrench).
• Tighten the central bolt (1) (M12,
19-mm wrench) to adjust the track
tension.
• Check the tracks again for correct
tension and tighten the central bolt (1)
even more if necessary (or loosen it if
the track is now too taut).
• Remember to tighten the clamping
bolts (3), as well as the locknut (2).
3
1
2
