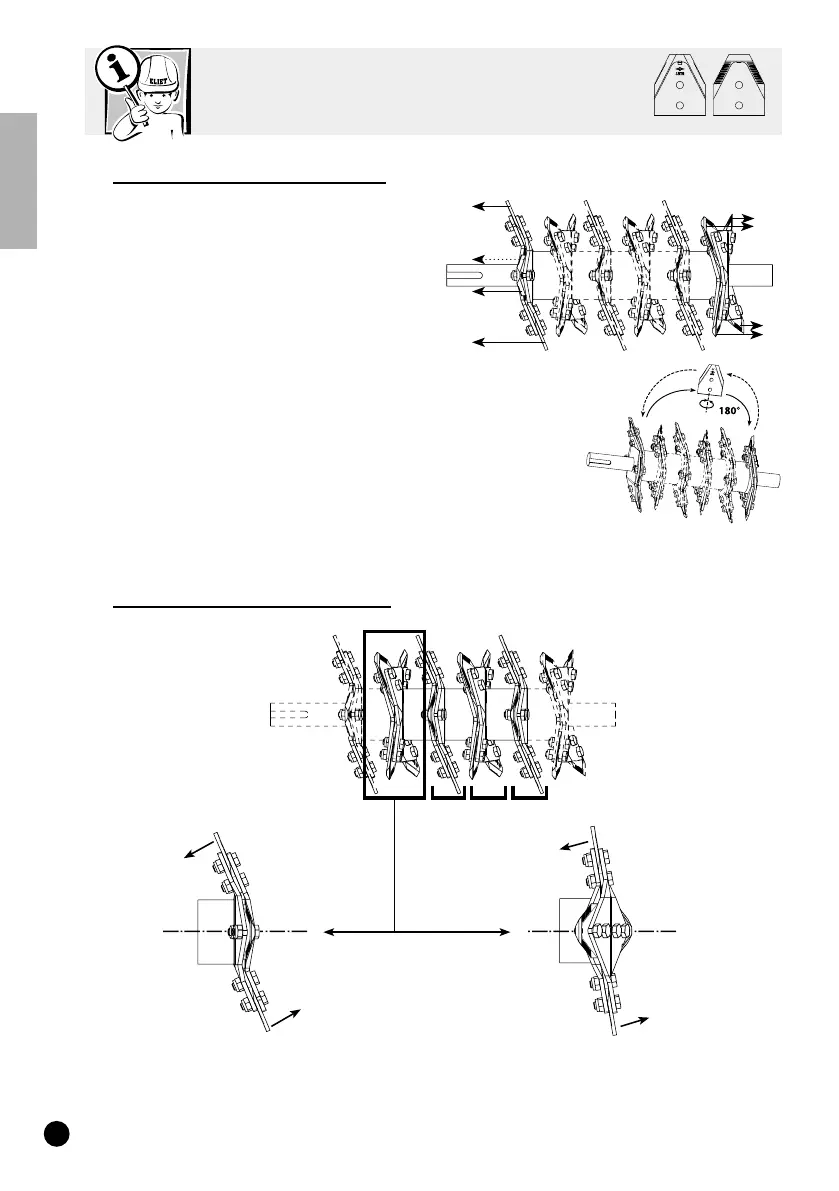

For your information: Each blade has two sides (illustration)
Front side (F): the bevelled cutting edge is visible.
Back side (B): The side with the clearly visible tooth profile.
A. Turning / replacing blades in group 1
Rule: Ensure that the blades in group 1
are always oriented with their back sides
(B) facing the side walls of the shredding
chamber.
Perform the following steps to ensure
that this rule is applied consistently.
• Remove a single blade from the left-side blade disc, rotate it
180° and put it back in the same position, but on the right-side
blade disc. Rotate (180°) the blade previously removed from
the right-hand blade disk, and fit it in the empty space in the
left-hand blade disk.
• Repeat this procedure until all 8 blades from group 1 in both
discs have been repositioned.
• Always clean the blades and blade holders before refitting
them.
B. Turning / replacing blades in group 2
Rule: Every blade disc has four blade positions. The blades are positioned at an angle for two
positions (1), whereas they are relatively straight for the two other positions (2). The front
side (F) of the angled blades must always be facing the shaft. For the straight blades, the
(F) (B)
B
B
B
B
B
B
B
B
(1)
F
F
F
F
(2)
