In order to power on the robot, the control box must be connected to the power supply. This
process must be completed by connecting with the rectangular heavy-load plug at the bottom of

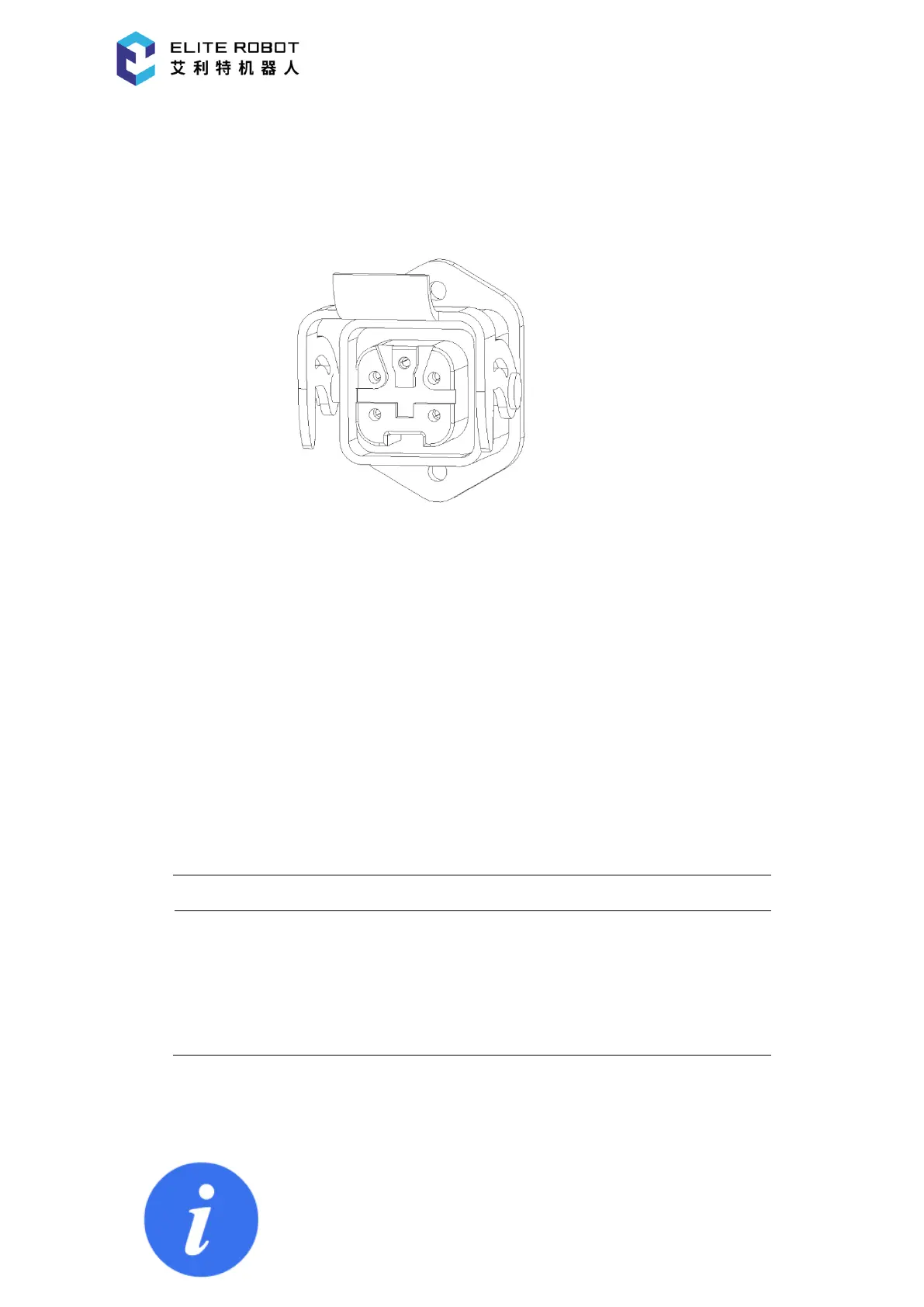

the control box with the corresponding wire. Please refer to the figure below.
The power supply should be equipped with at least following accessories:
• Connection to ground
• Mains fuse
• Residual current device
It is recommended to install a mains switch to the power supply of all equipments in the
robot application, in order to facilitate lockout and tagout during repair.
The electrical specifications are shown in the table below.
Parameter Min Type MaxUnit
Input voltage 90 - 240 VAC
External mains fuse (when the voltage is 90-130V) 16 - 32 A
External mains fuse (when the voltage is 200-240V) 8 - 16 A
Input frequency 47 - 63 Hz
Rated operating power 150 250 1200 W
