8.7.4 Tool analog input
The tool analog input is a non-differential input, with voltage (0-10V). The electrical
specifications are shown below.
Parameter
Min
Type
Max
Unit
Input voltage
-0.5
-
24
V
Input resistance
-
-
>100
MΩ
Resolution
-
10
-
Bit

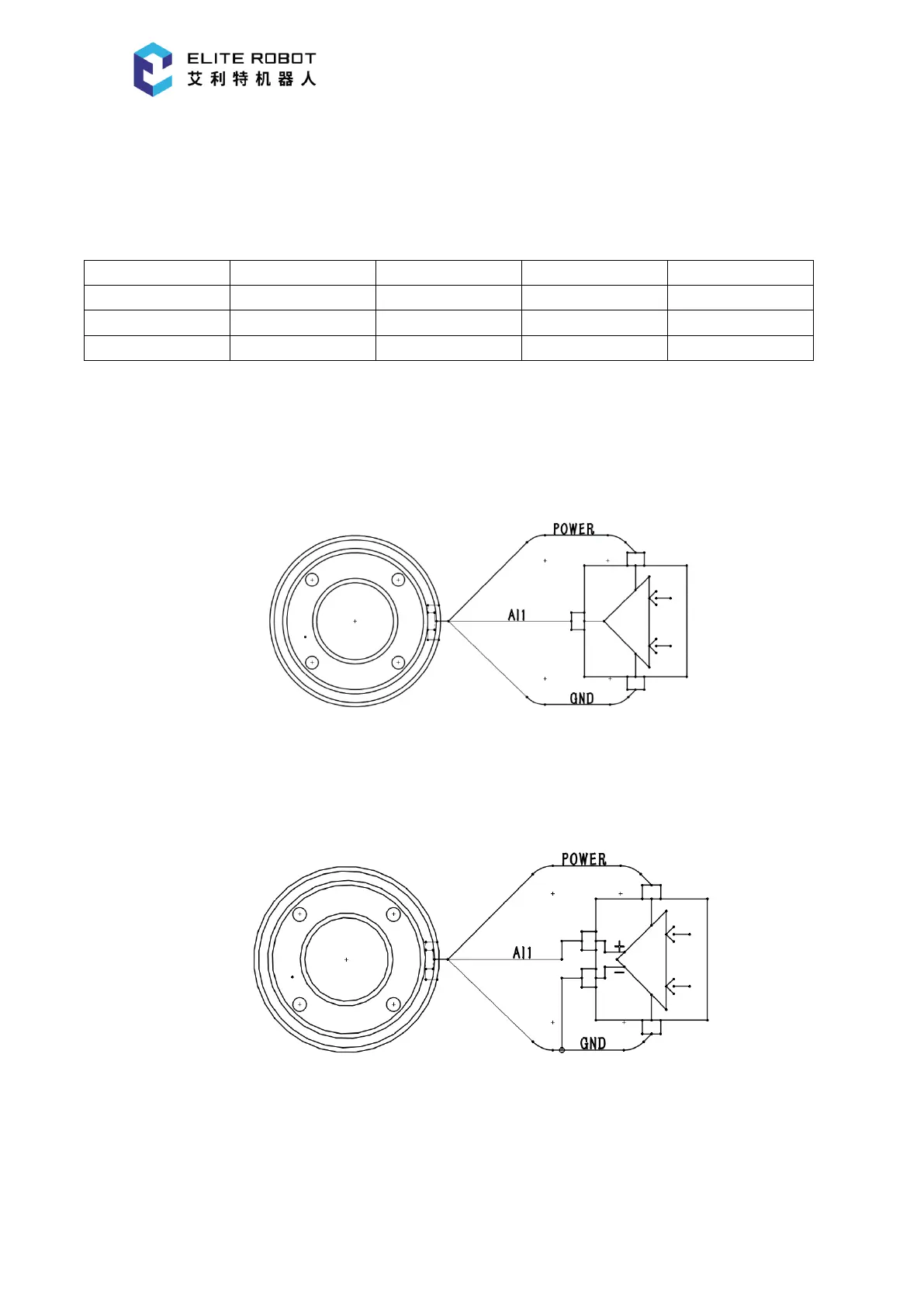

Two examples of how to use the analog input are illustrated in the following section.
Using the tool analog input, non-differential
This example illustratesan analog sensor connection with a non-differential output.
Using the tool analog input, differential
This example illustrates an analog sensor connection with a differential output. Work in the
same way as the non-differential sensor after connecting a negative output end to the GND (0V).
8.7.5 Tool analog output
The tool analog output is a non-differential output, with voltage (0-10V). The electrical
