Load controlled by the digital output

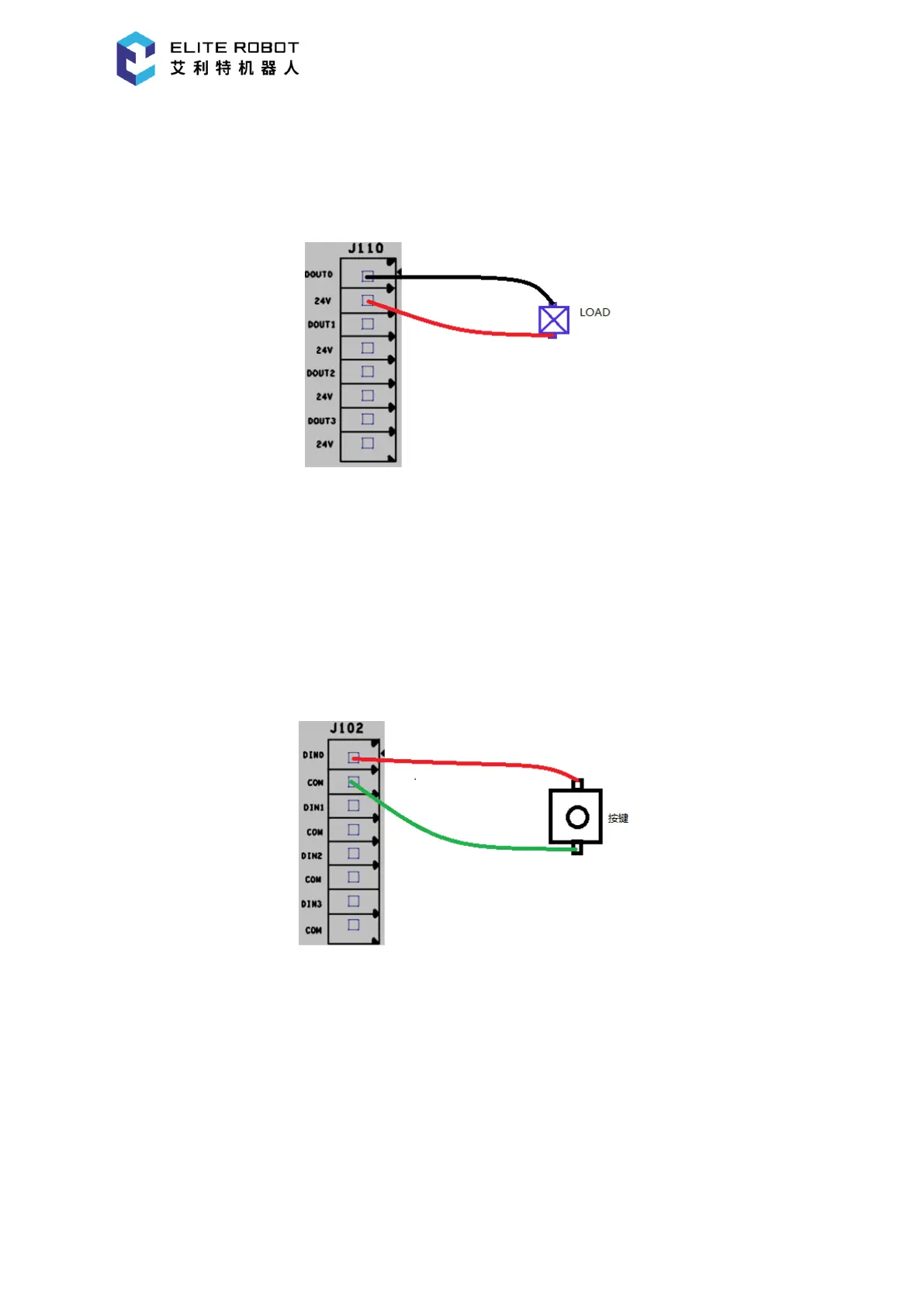

This example shows a connection way of the load controlled by the digital output. See the
figure below.
8.3.4 Digital input from a button
This example shows a connection way of a simple button and the digital input.
8.3.5 General purpose analog I/O
The analog I/O interface can be used to set or measure the voltage (-10V~10V) in and out of
other equipments.
