The tool connector must be manually tightened up, with a maximum moment of force of
0.4Nm.

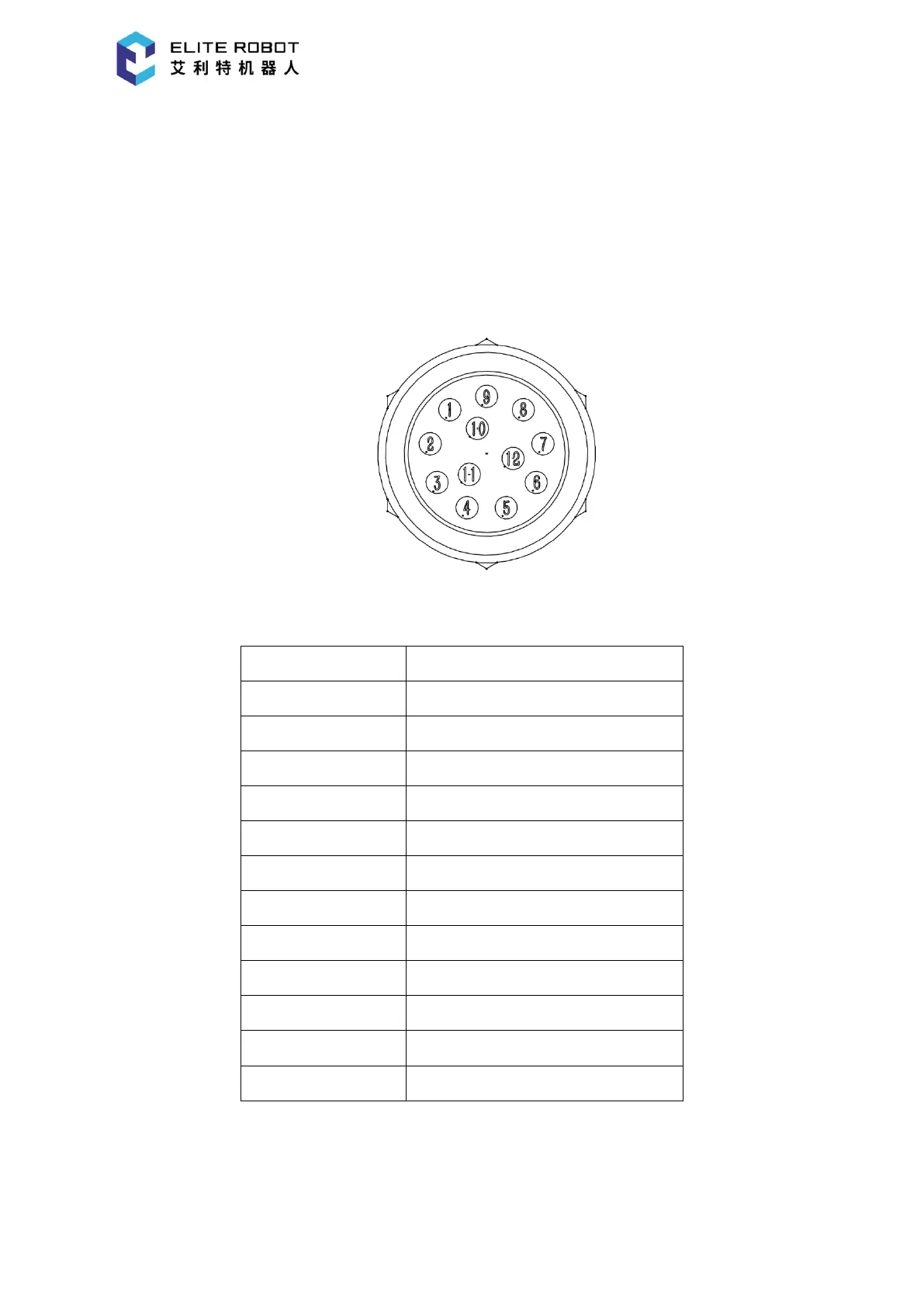

The following figure should be used for reference for a function list of 12 connecting pins of
an aviation plug:
Note: the mode of the aviation plug is HR10A-10R-12P of HRS company
Pin No.
Function description
1
Digital ground (GND)
2
Digital output interface 1 (DO1)
3
Digital output interface 2 (DO2)
4
Digital input interface 1 (DI1)
5
Digital input interface 2 (DI2)
6
Analog input interface (AI1)
7
Analog output interface (AO1)
8
RS485+
9
RS485-
10
+24V power output
11
Blank, no connection therein
12
Blank, no connection therein
Herein, the electrical specifications of the 24V internal power supply are shown in the
table below:
