Elmo EV-2000AF - Camera Head and Column

8
50 60

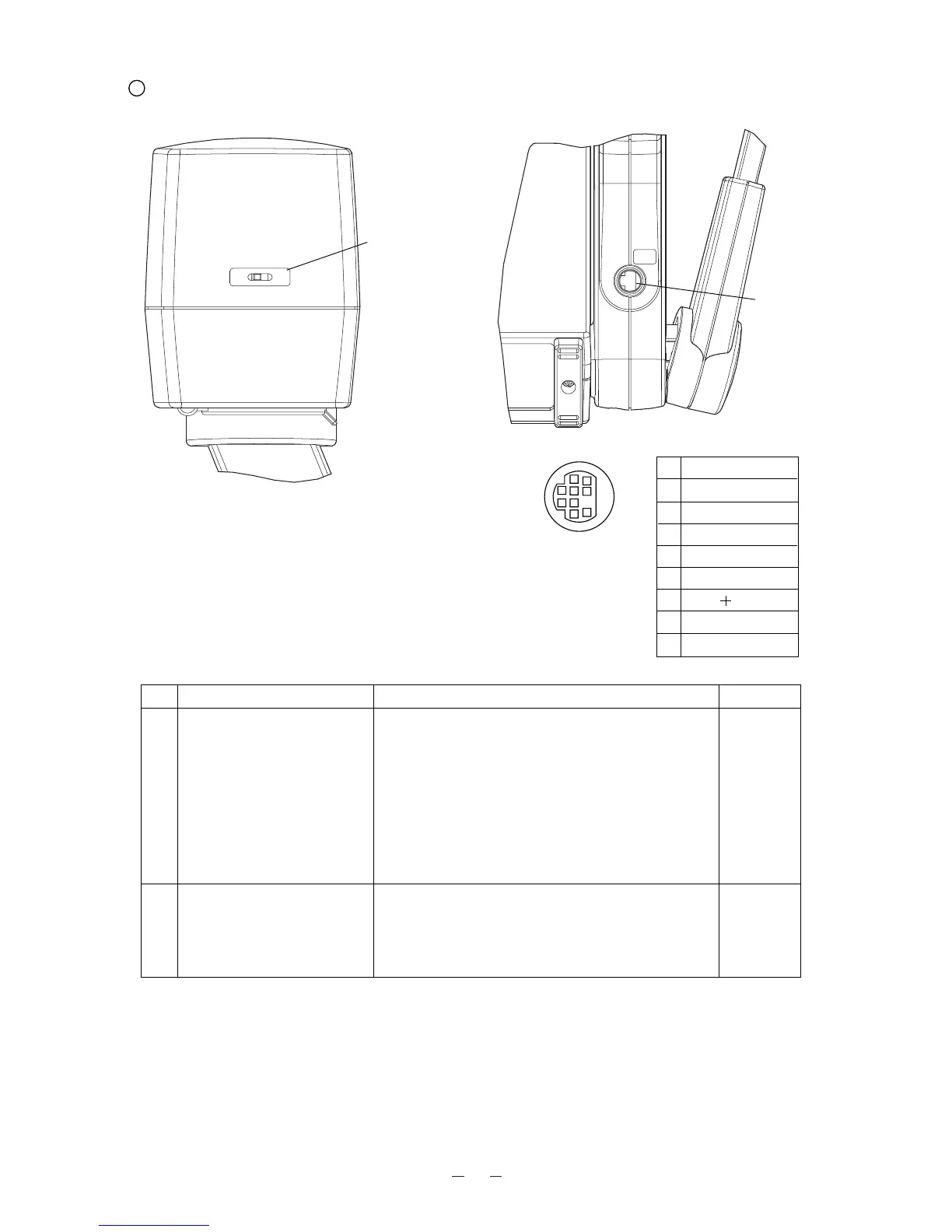

Camera Head and Column
DC12V
32. Output Terminal
Name Function
Reference Page
31. Shutter Selection Switch To set the shutter time. In an areawhere power
frequency is 50Hz, using the unit with the shutter
selection switch set to [60] may cause flickering due to
illumination of AC power discharge tube, such as a
fluorescent or a mercury lamp.
Using the unit with the shutter selection switch set to
[50] may reduce the flickering.
This switch is factory-set to 60Hz.
32. Output Terminal USA : ELMO USA Tech Support
(800)947-3566 for further assistance.
Others : Call to ELMO CANADA (Canada)
or the ELMO exclusive distributors.
9
8
7
6
5
4
3
2
1
1
2
3
4
5
6
7
8
9
VIDEO OUT
GND
NC
NC
NC
NC
12V
GNC
CONT.
31. Shutter Selection
Switch
Mini DIN 9P (Female)
